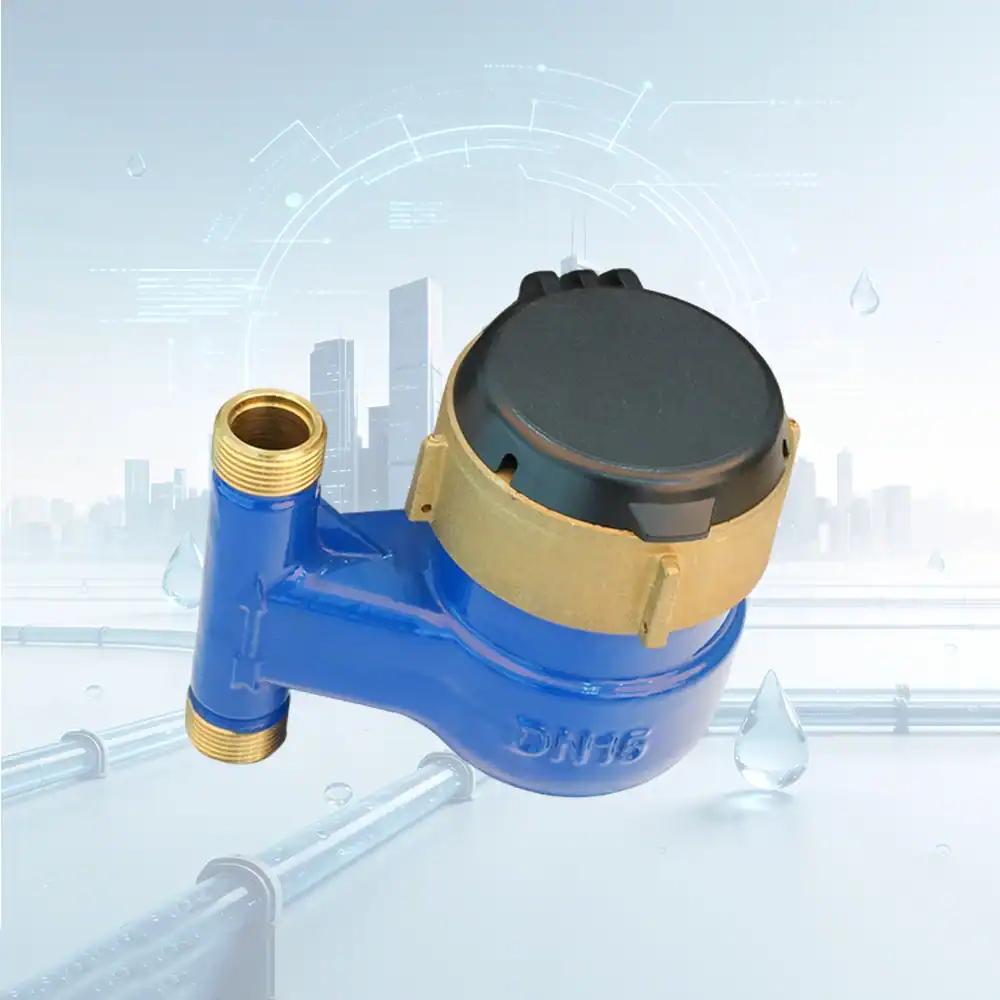

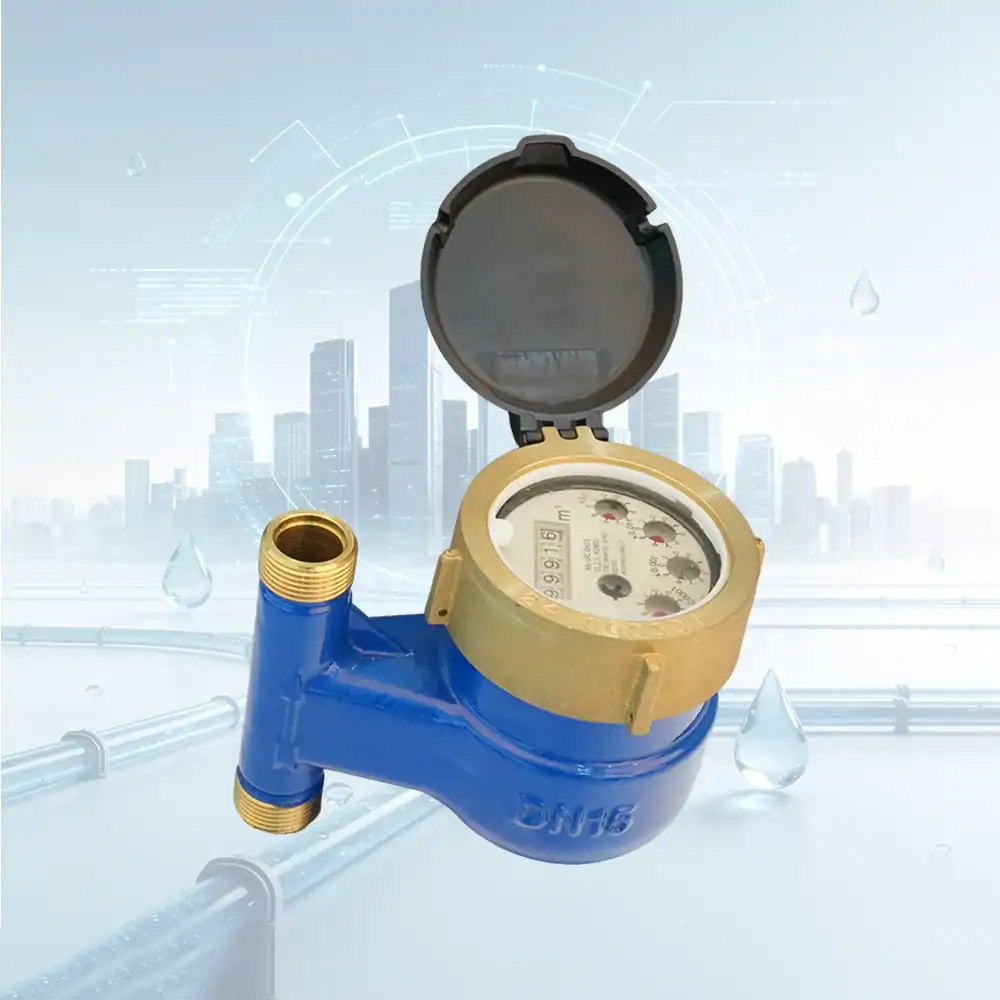

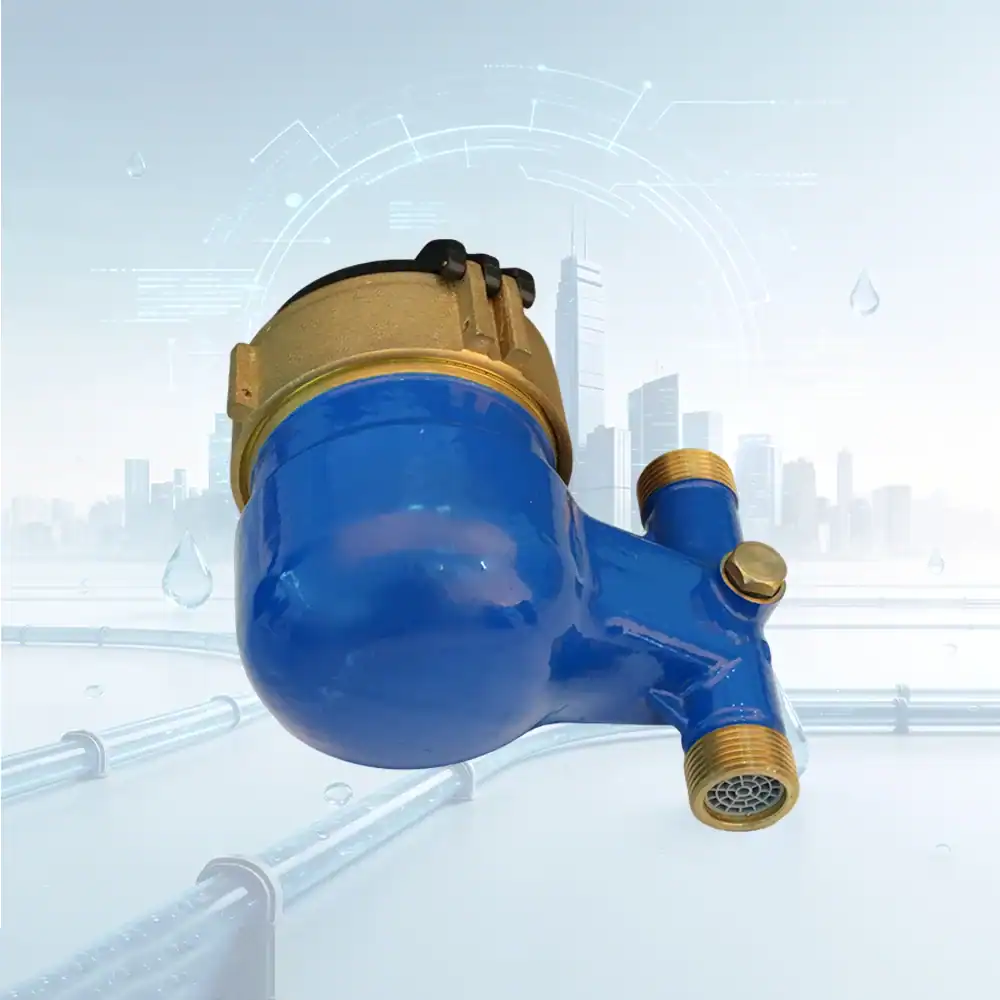

ISO 4064 DN15 Durable Multi-Jet Water Meter
- High Precision:Â Class B (R160) accuracy captures low flows down to 5.2 L/h.
- IP68 Waterproof:Â Hermetically sealed dial ensures clear, fog-free readings underwater.
- Anti-Tamper:Â Built-in magnetic protection prevents external interference and data theft.
- Smart-Ready:Â AMR-compatible with optional pulse output for remote monitoring.
- Easy Install:Â Standard DN15 (165mm length) with BSP G3/4B threads.
Â
Superior Precision and Multi-Jet Reliability
Engineered for highly accurate utility measurement, this horizontal multi-jet water meter utilizes a stable velocity-type measuring principle to ensure consistent performance. Featuring an impressive Class B (R160) accuracy rating, it expertly captures even the slightest water usage down to a remarkably low starting flow of just 5.2 L/h. This exceptional sensitivity minimizes revenue loss from undetected low-volume consumption. Built in strict compliance with ISO 4064 standards and supporting a maximum pressure of MAP16, it delivers consistent, highly dependable flow tracking for residential and light commercial water networks.
Rugged Design with Smart AMR Capabilities

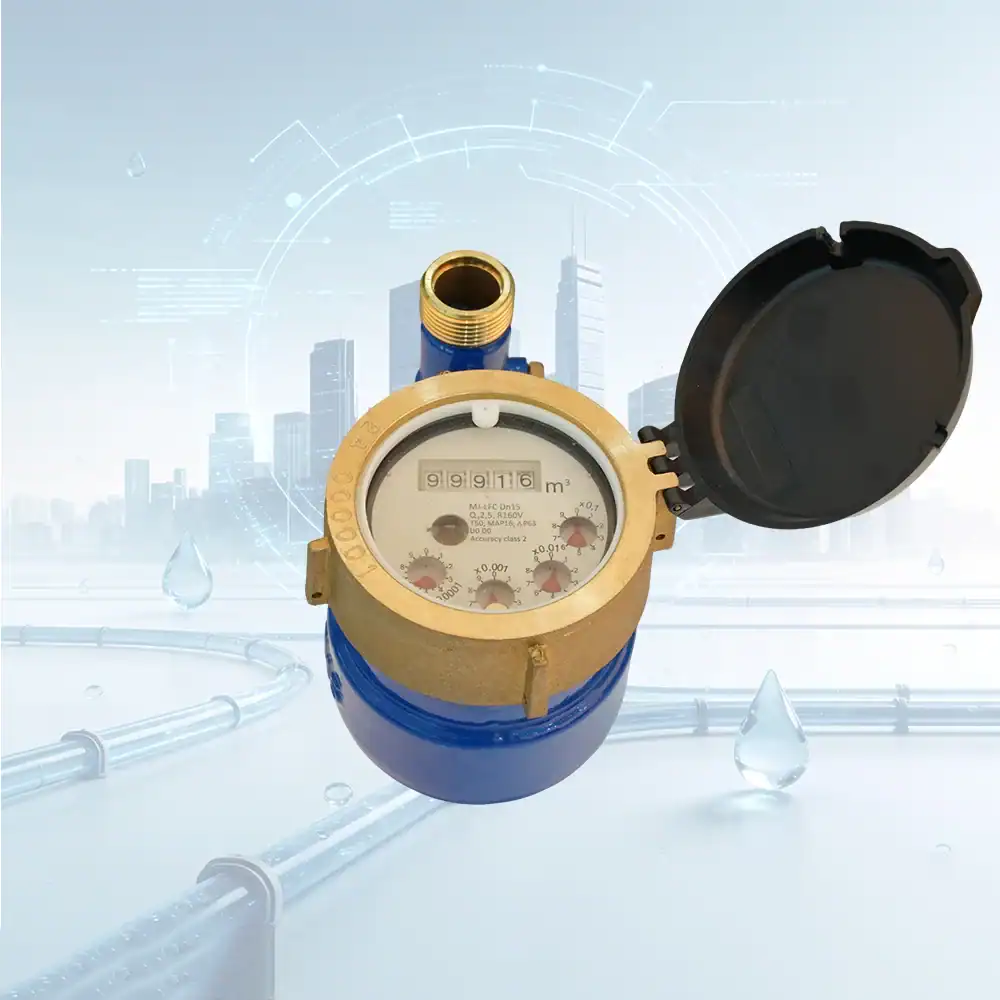

Built to perform flawlessly in the harshest environments, this meter is protected by an IP68 waterproof rating and features a hermetically sealed wet dial register. This structural integrity ensures the display remains completely clear and fog-free, even during continuous underwater submersion. It also includes robust built-in anti-magnetic protection to prevent external tampering and safeguard measurement data. Furthermore, this forward-thinking device is AMR-ready with an optional pulse output, providing utilities with seamless integration into modern automated remote reading and smart grid systems.
Key Features & Advantages:
- Exceptional Precision: Delivers an R160 wide measuring range with a permanent flow rate of 2.5 mÂł/h, ensuring highly accurate and reliable utility billing.
- Extreme Waterproofing: The IP68 hermetically sealed register guarantees clear, condensation-free readings in flooded, outdoor, or underground installations.
- Smart Grid Ready: Designed to easily connect to automated data networks via an optional pulse output, streamlining remote utility management.
Functional Parameters
| Meter Type | Multi Jet |
| Measuring Principle | Velocity Type |
| Dial Type | Wet Dial, Sealed Register |
| Installation Orientation | Horizontal |
| Protection Class | IP68 |
| Temperature Class | T30/T50 |
| Pressure Class | MAP16 |
| Accuracy Class | Class B (R160) |
| Standard Compliance | ISO 4064 |
| Anti-Magnetic Protection | Yes |
| Sealing Type | Hermetically Sealed Register |
| Optional Output | Pulse Output/AMR Ready |
Dimensional Parameters
| Nominal Diameter (DN) | DN15 (15 mm) |
| Length (L) | 165mm |
| Width (W) | 94 mm |
| Height (H) | 135 mm |
| Thread Type | BSP |
| Thread Size | G3/4B |
| Connection Type | Threaded |
Flow Parameters
| Q1 (Minimum Flow Rate) | 15.625 L/h |
| Q2 (Transitional Flow Rate) | 25 L/h |
| Q3 (Permanent Flow Rate) | 2.5 mÂł/h |
| Q4 (Overload Flow Rate) | 3.125 mÂł/h |
| R Value (Q3/Q1) | 160 |
| Starting Flow | 5.2 L/h |
| Pressure Loss at Q3 | ≤0.063 MPa |
| Maximum Reading | 99 999 mÂł |
| Minimum Reading | 0.00005 mÂł (0.05 L) |
