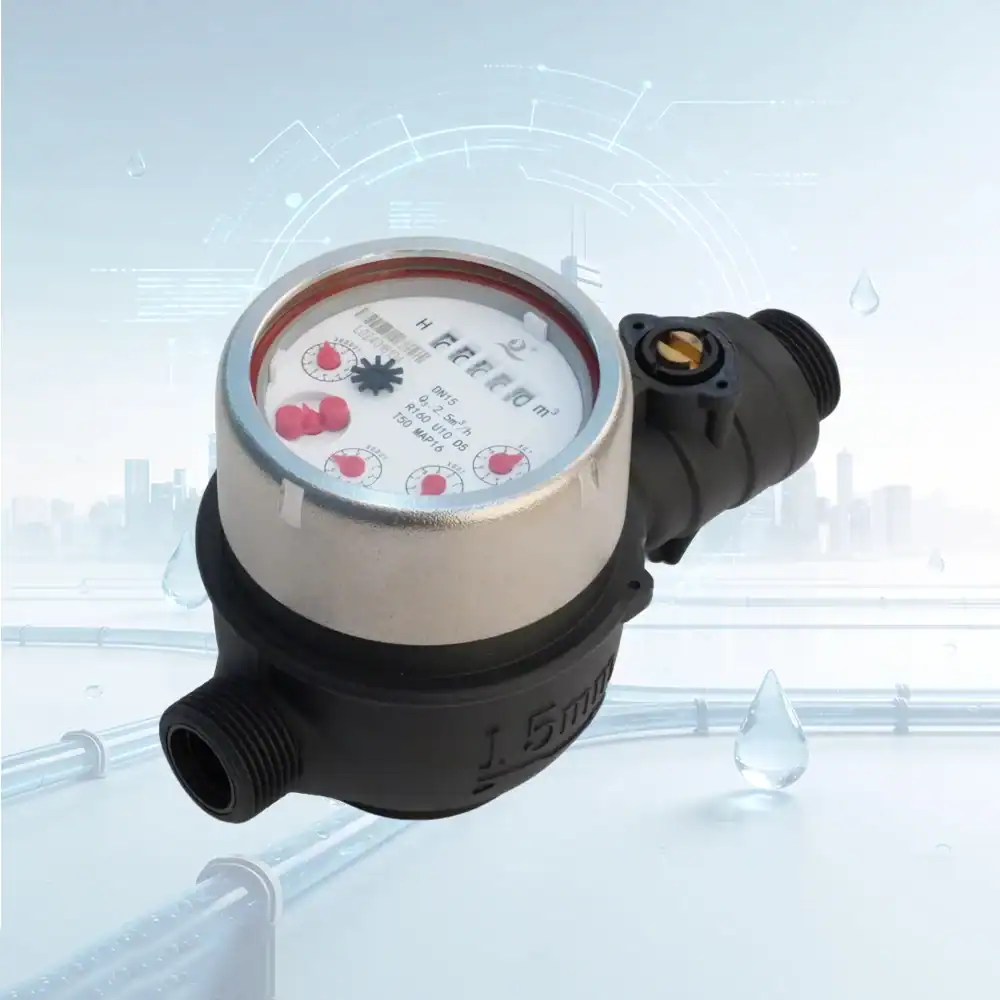

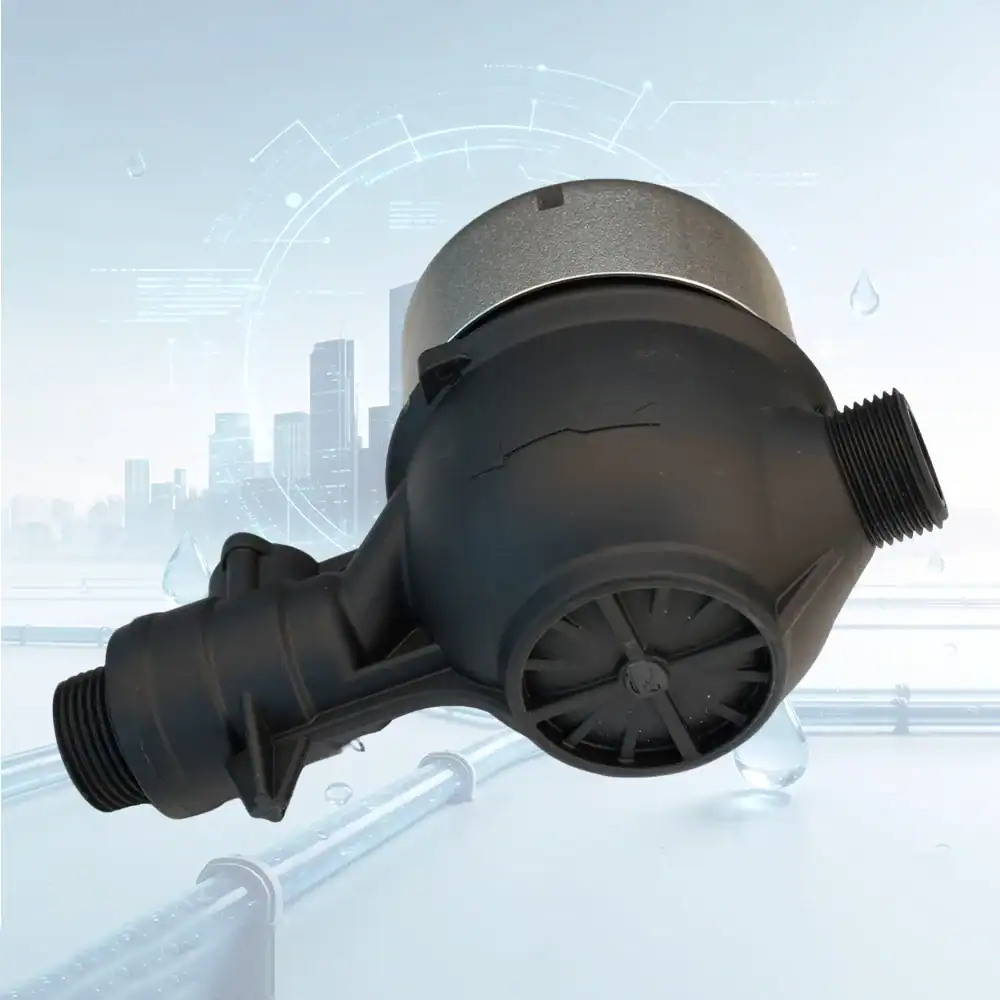

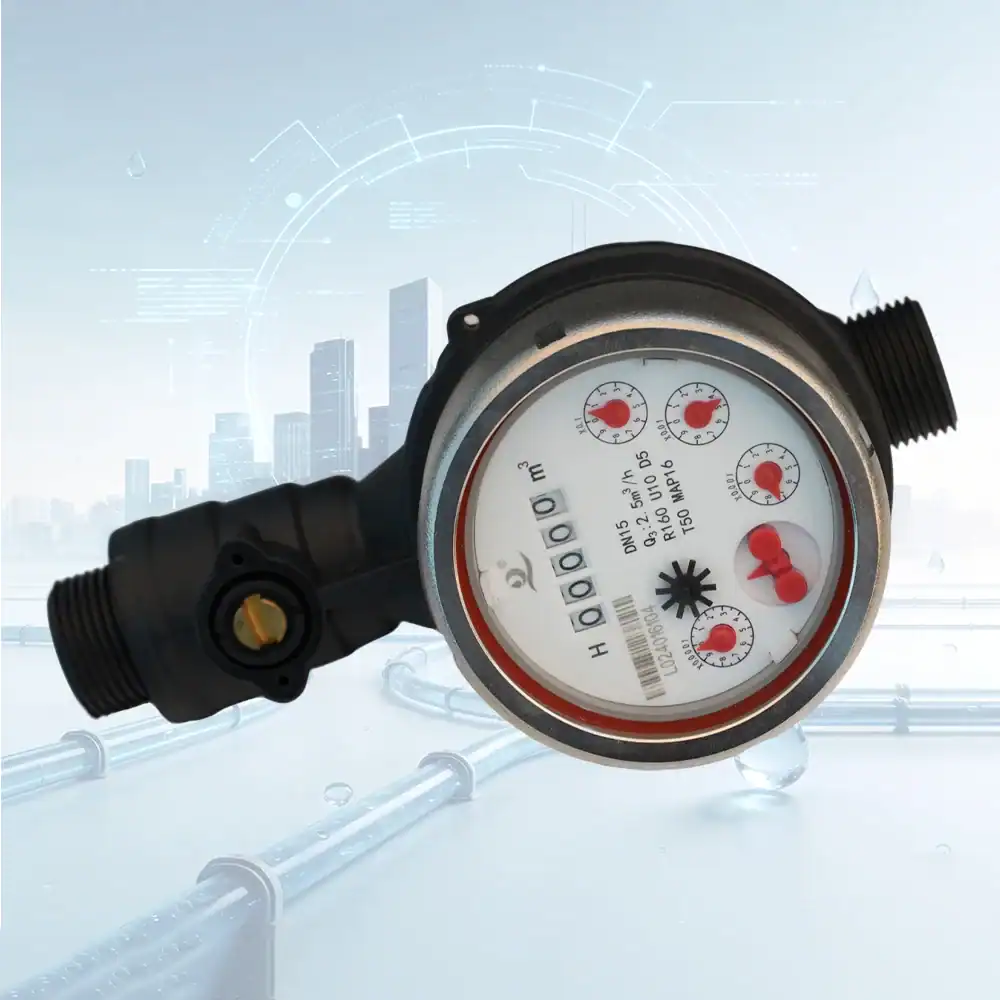

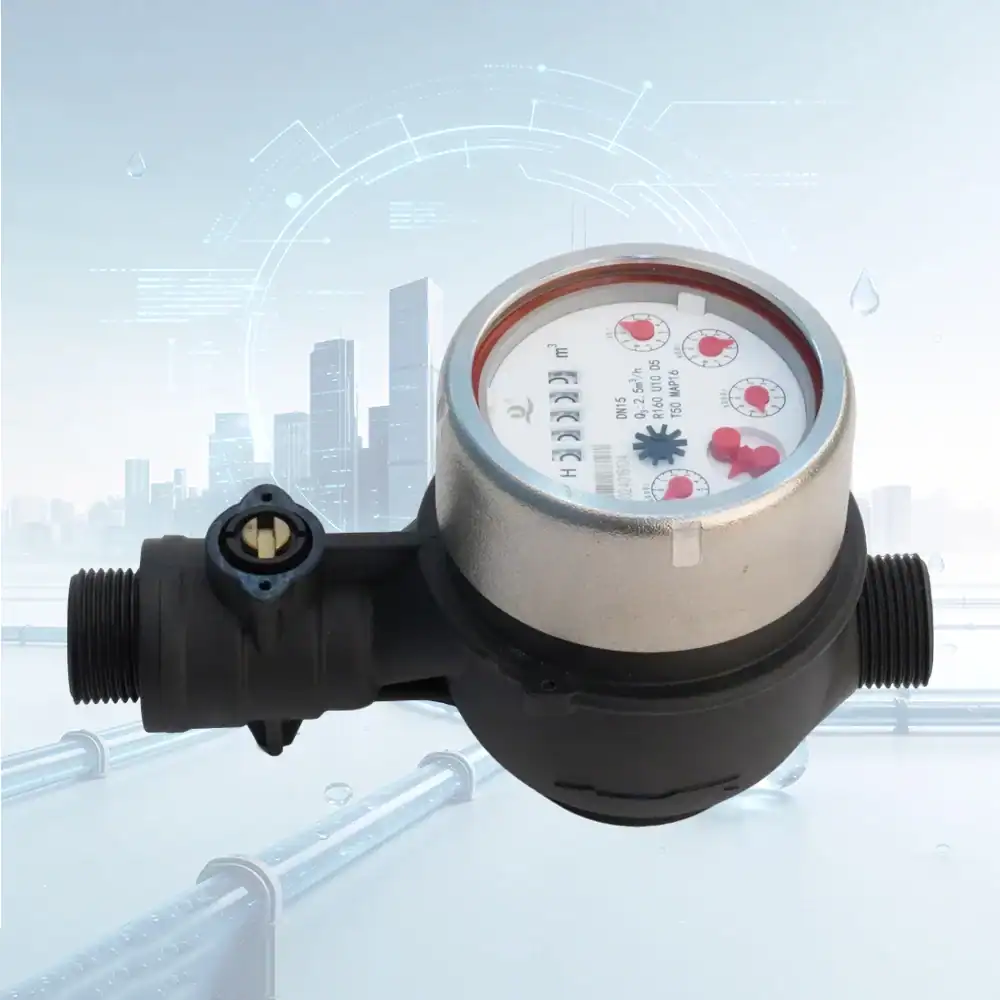

DN15 Multi Jet Mechanical Water Meter with Gate Valve
- High Precision: Class B (R160) accuracy; captures low flows from 5.2 L/h.
- Integrated Control: Built-in valve allows efficient water supply shut-off and management.
- Extreme Durability: IP68 waterproof, sealed wet dial prevents condensation and damage.
- Anti-Tamper Security: Strong anti-magnetic protection safeguards against external interference and theft.
- Smart Upgradable: AMR-ready with optional pulse output for automated remote reading.
Â
Reliable Multi-Jet Flow Measurement
Engineered for precision and longevity, this horizontal multi-jet water meter utilizes a highly responsive velocity-type measuring principle. The unit features a hermetically sealed wet dial register, guaranteeing clear and condensation-free readings over extended periods. With a Class B (R160) accuracy rating, it captures extremely low flows down to a starting flow of just 5.2 L/h, effectively preventing revenue loss from unmeasured water consumption. Fully compliant with ISO 4064 standards, it delivers highly dependable performance for residential and commercial water utility networks.
Smart Control and Robust Durability
Designed to modernize utility management, this advanced meter integrates reliable valve control capabilities, allowing for seamless water supply regulation. Its IP68 protection class ensures total resilience against dust and continuous submersion, making it perfect for challenging outdoor or underground environments. Capable of withstanding a maximum allowable pressure of MAP16, it operates safely under diverse conditions. Furthermore, built-in anti-magnetic protection secures the meter against external tampering, while the design makes it easily adaptable for smart reading networks.
Key Features & Advantages
- High-Precision Measurement: Achieves an exceptional R160 wide measuring range with a permanent flow rate (Q3) of 2.5 mÂł/h, ensuring accurate and reliable billing data.
- Integrated Valve Control: Allows for efficient water supply management and shut-off regulation, enhancing utility network control and operational security.
- Smart Grid Compatibility: Comes AMR-ready with optional pulse output, facilitating seamless data transmission for modern automated meter reading systems.
- Tamper & Weather Proof: Features an IP68 waterproof rating and robust anti-magnetic protection, comprehensively safeguarding measurement integrity.
Â
Â
Functional Parameters
| Meter Type | Multi Jet with valve control |
| Measuring Principle | Velocity Type |
| Dial Type | Wet Dial, Sealed Register |
| Installation Orientation | Horizontal |
| Protection Class | IP68 |
| Temperature Class | T30/T50 |
| Pressure Class | MAP16 |
| Accuracy Class | Class B (R160) |
| Standard Compliance | ISO 4064 |
| Anti-Magnetic Protection | Yes |
| Sealing Type | Hermetically Sealed Register |
| Optional Output | Pulse Output/AMR Ready |
Dimensional Parameters
| Nominal Diameter (DN) | DN15 (15 mm) |
| Length (L) | 165mm |
| Width (W) | 80 mm |
| Height (H) | 88 mm |
| Thread Type | BSP |
| Thread Size | G3/4B |
| Connection Type | Threaded |
Flow Parameters
| Q1 (Minimum Flow Rate) | 15.625 L/h |
| Q2 (Transitional Flow Rate) | 25 L/h |
| Q3 (Permanent Flow Rate) | 2.5 mÂł/h |
| Q4 (Overload Flow Rate) | 3.125 mÂł/h |
| R Value (Q3/Q1) | 160 |
| Starting Flow | 5.2 L/h |
| Pressure Loss at Q3 | ≤0.063 MPa |
| Maximum Reading | 99 999 mÂł |
| Minimum Reading | 0.00005 mÂł (0.05 L) |
