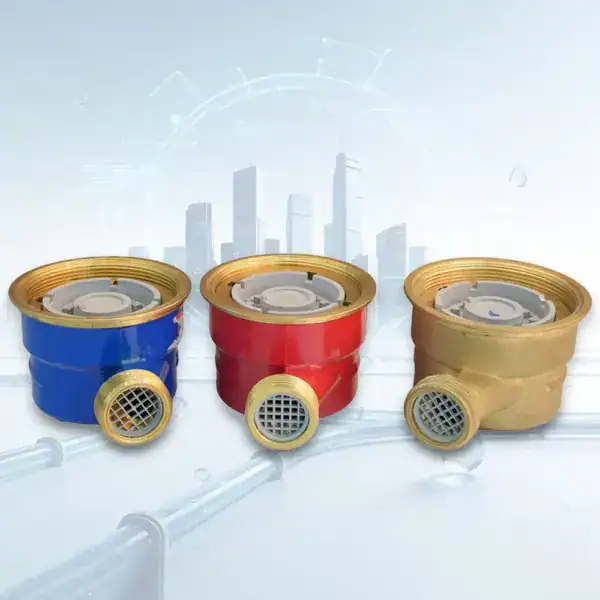

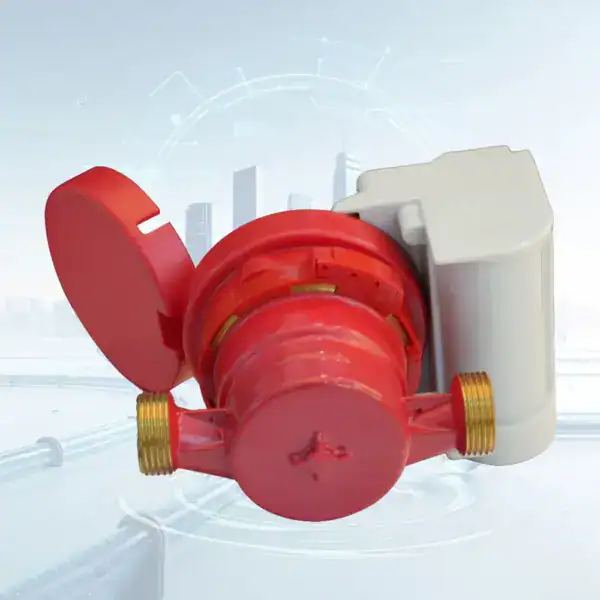

Brass Single Jet Dry Dial – MID Certified – Smart Water Meter for Apartments
-
R160 High Precision: Features Class B (R160) accuracy and 5.2 L/h starting flow to capture every drop and eliminate billing losses.
-
Smart AMR Ready: Pulse Output and AMR capabilities enable seamless IoT integration for remote monitoring and automated billing.
-
IP68 Waterproof: Hermetically sealed dry dial stays fog-free and fully functional even when submerged in harsh, humid environments.
-
Anti-Magnetic Shield: Built-in protection prevents external interference and tampering, ensuring 100% data integrity and security.
-
Industrial Durability: ISO 4064 compliant and MAP16 rated for long-term reliability in demanding residential and commercial networks.
Unmatched Measurement Precision
Designed with advanced velocity-type measuring principles, this meter achieves an R160 accuracy class. Its exceptional sensitivity allows it to detect a starting flow as low as 5.2 L/h, ensuring that even minor leaks or low-volume usage are recorded. For utility providers and apartment managers, this means a significant reduction in non-revenue water (NRW) and more equitable billing.
Rugged Engineering for Reliability

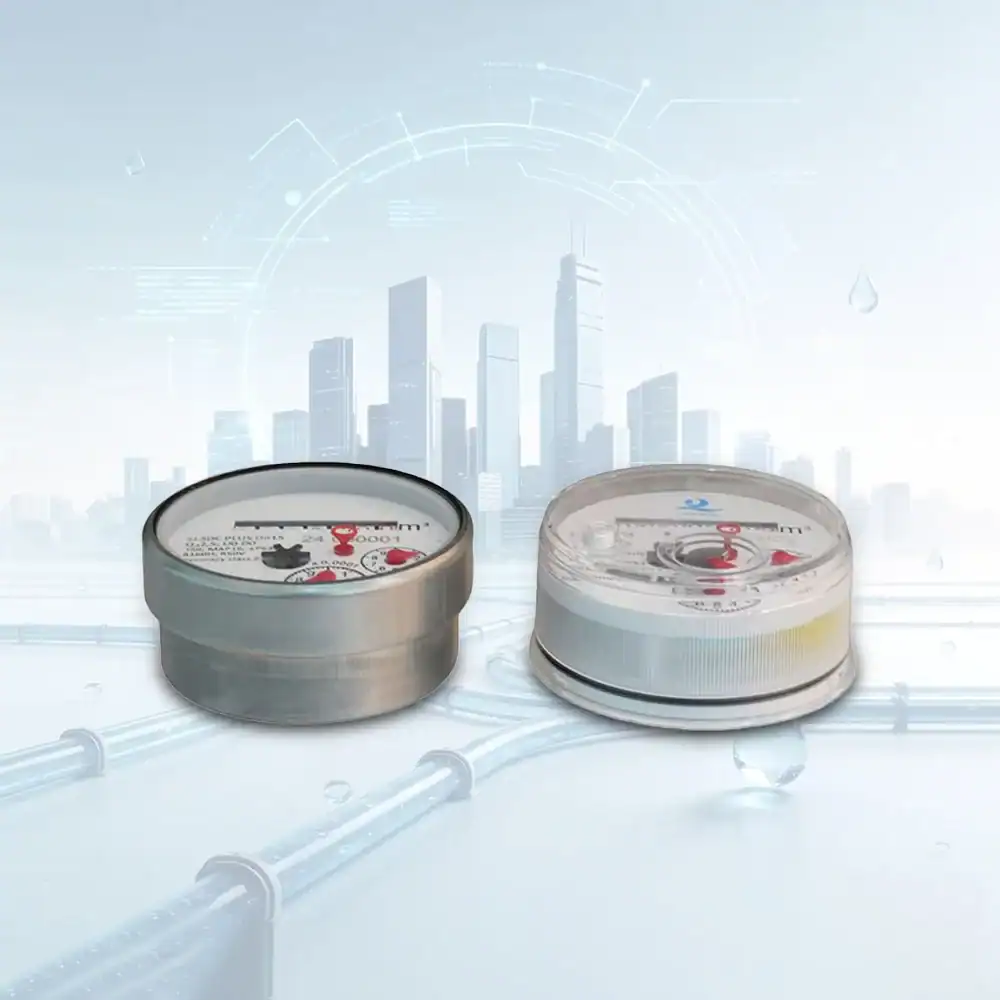

Reliability is built into every component. The hermetically sealed register and magnetic drive system isolate the reading mechanism from water contact, preventing fogging and corrosion. Rated with IP68 protection, this meter is fully submersible, making it ideal for flooded pits or high-humidity underground installations. Our DN15 Single Jet Dry Dial Water Meter is a professional-grade solution engineered to deliver precise flow data while standing up to the harshest installation environments.
Key Selling Points:
-

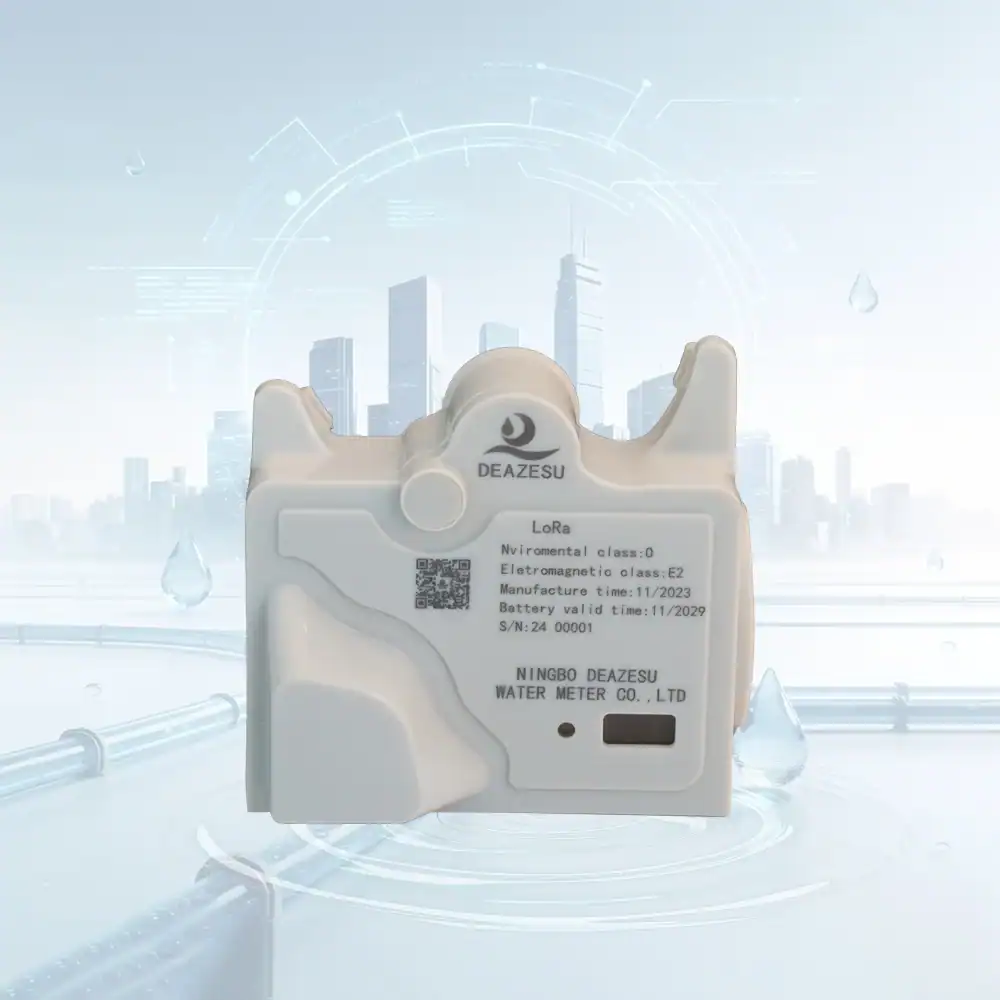

Smart Infrastructure Compatible: Ready for the future of utility management, this unit is AMR-Ready and supports Pulse Output, enabling seamless integration into IoT networks and remote reading systems.
-
Enhanced Security: Integrated anti-magnetic protection safeguards the device against external interference and unauthorized tampering, maintaining 100% data integrity.
-
Global Standard Compliance: Fully compliant with ISO 4064 and MAP16 pressure standards, ensuring a universal fit and stable performance in high-pressure plumbing systems.
-
Thermal Versatility: Capable of operating across T30, T50, and T90 temperature classes, it offers a versatile one-stop solution for diverse climate conditions.
Functional Parameters
| Meter Type | Single Jet Dry Dial |
| Measuring Principle | Velocity Type |
| Dial Type | Dry Dial, Sealed Register |
| Transmission Type | Magnetic Drive |
| Installation Orientation | Horizontal |
| Protection Class | IP68 |
| Temperature Class | T30/T50/T90 |
| Pressure Class | MAP16 |
| Accuracy Class | Class B (R160) |
| Standard Compliance | ISO 4064 |
| Anti-Magnetic Protection | Yes |
| Sealing Type | Hermetically Sealed Register |
| Optional Output | Pulse Output / AMR Ready |
Dimensional Parameters
| Nominal Diameter (DN) | DN15 (15 mm) |
| Length (L) | 80/110/115 mm |
| Width (W) | 81.5 mm |
| Height (H) | 84.5 mm |
| Thread Type | BSP |
| Thread Size | G3/4B |
| Connection Type | Threaded |
Flow Parameters
| Q1 (Minimum Flow Rate) | 15.625 L/h |
| Q2 (Transitional Flow Rate) | 25 L/h |
| Q3 (Permanent Flow Rate) | 2.5 m³/h |
| Q4 (Overload Flow Rate) | 3.125 m³/h |
| R Value (Q3/Q1) | 160 |
| Starting Flow | 5.2 L/h |
| Pressure Loss at Q3 | ≤0.063 MPa |
| Maximum Reading | 99 999 m³ |
| Minimum Reading | 0.00005 m³ (0.05 L) |
