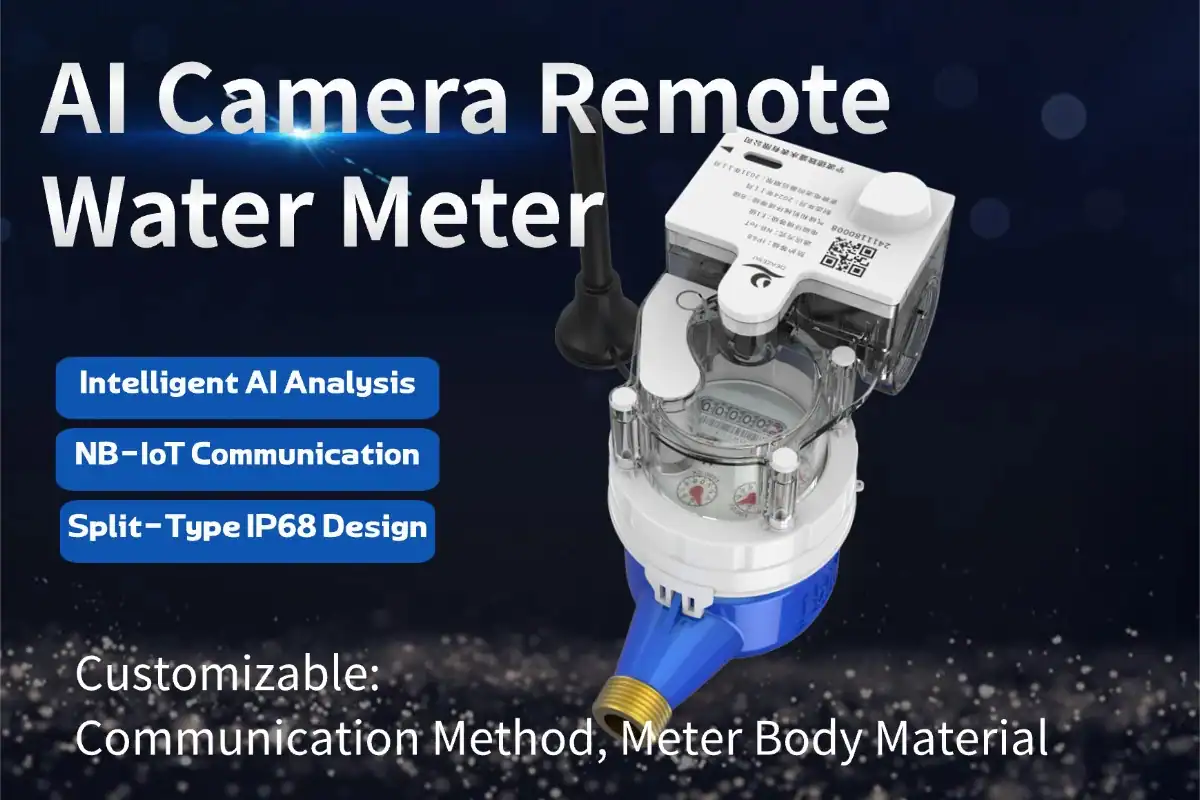

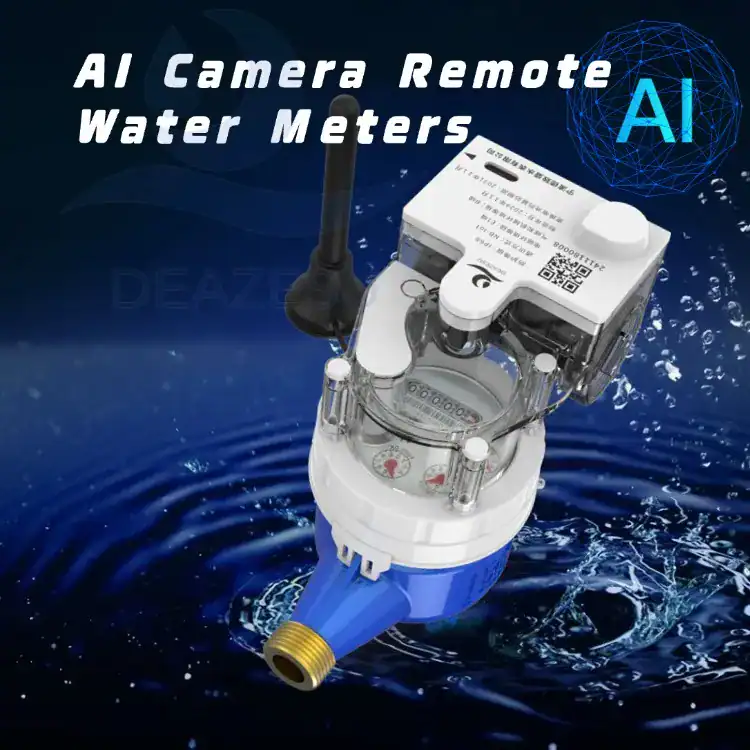

Smart AI Camera Remote Domestic Water Meter Reading Solution
Smart AI Camera Remote Water Meter Reading Solution enables automatic, contactless meter reading using AI vision. It delivers real-time data, high recognition accuracy, easy deployment, and lower operation costs.
- Product Description

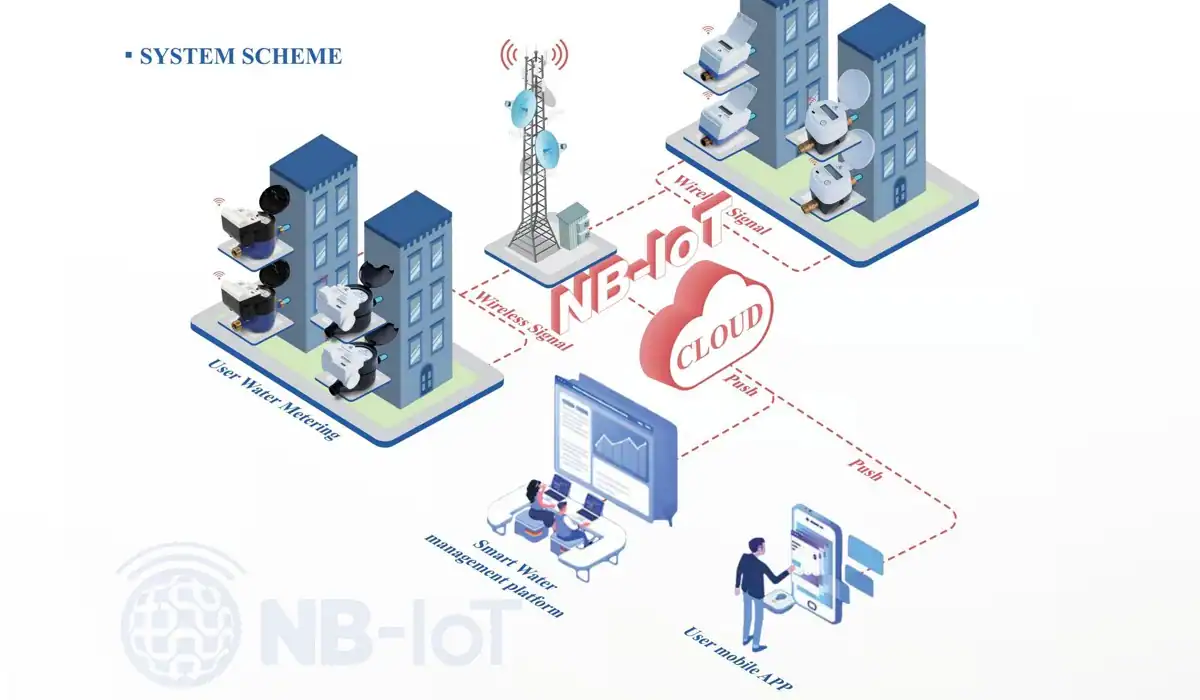

Smart AI Camera Remote Water Meter Reading Solution captures meter surface images via camera, uploads them to the management platform, and extracts data using AI recognition.

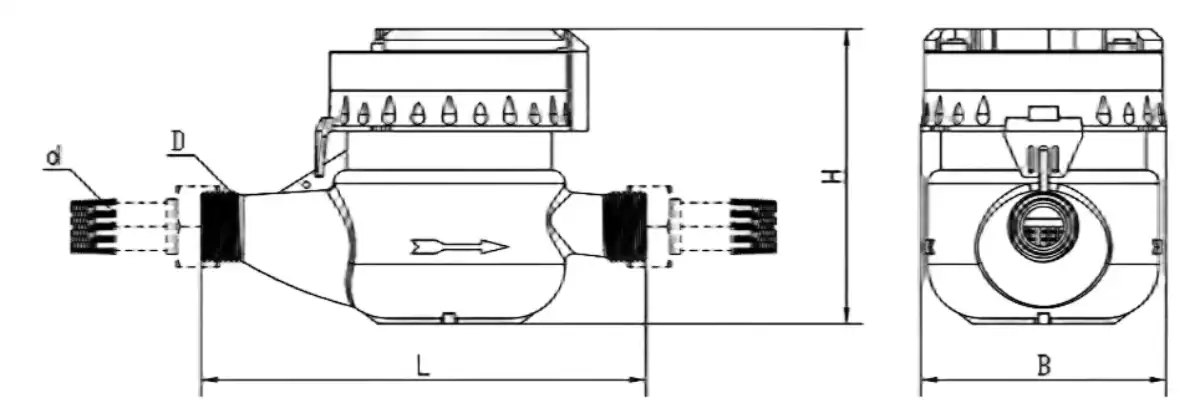

- Mechanical Dimensions
| Nominal Diameter | Length (mm) | Width (mm) | Height (mm) | Connection | Thread Standard | Weight (kg) |
|---|---|---|---|---|---|---|
| DN15 | 165 | 94 | 135 | R1/2 | G3/4B | 1.5 |
| DN20 | 195 | 94 | 135 | R3/4 | G1B | 1.8 |
Note：Outer dimensions may vary depending on housing materials and product configurations.
- Flow Parameters
| Nominal Diameter | Q3/Q1 Ratio | Q4 (mÂł/h) | Q3 (mÂł/h) | Q2 (L/h) | Q1 (L/h) | Min Reading (mÂł) | Max Reading (mÂł) |
|---|---|---|---|---|---|---|---|
| DN15 | R100 | 3.125 | 2.5 | 40.0 | 25.0 | 0.00005 | 99,999 |
| DN20 | R100 | 5.000 | 4.0 | 64.0 | 40.0 | 0.00005 | 99,999 |
Measurement Accuracy (MPE)：±5% in the lower flow range (Q1–Q2)；±2% in the upper flow range (Q2–Q4)
- Wireless Parameters
| Function Parameter | Description |
|---|---|
| Operating Frequency | 800–900 MHz |
| Standby Current | ≤12 μA |
| Continuous Receiving Current | 50 mA |
| Transmitting Current | 100 mA |
