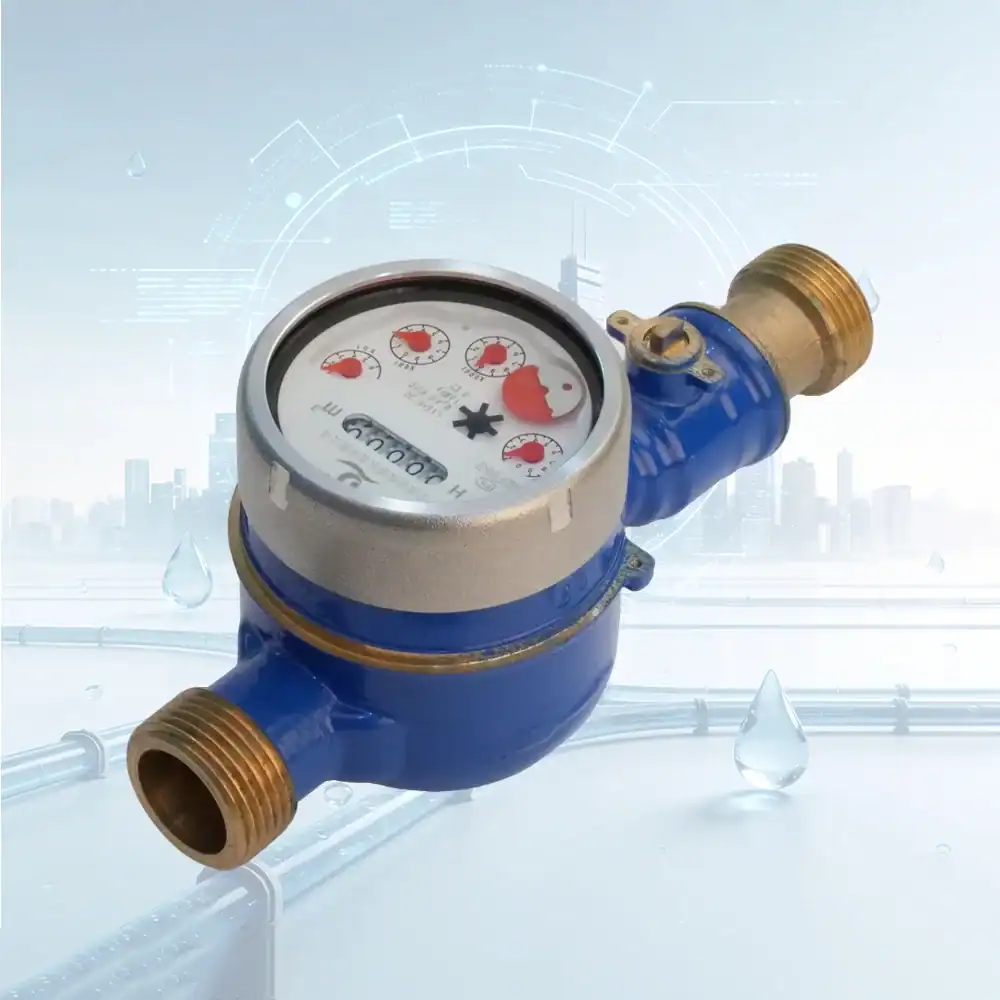

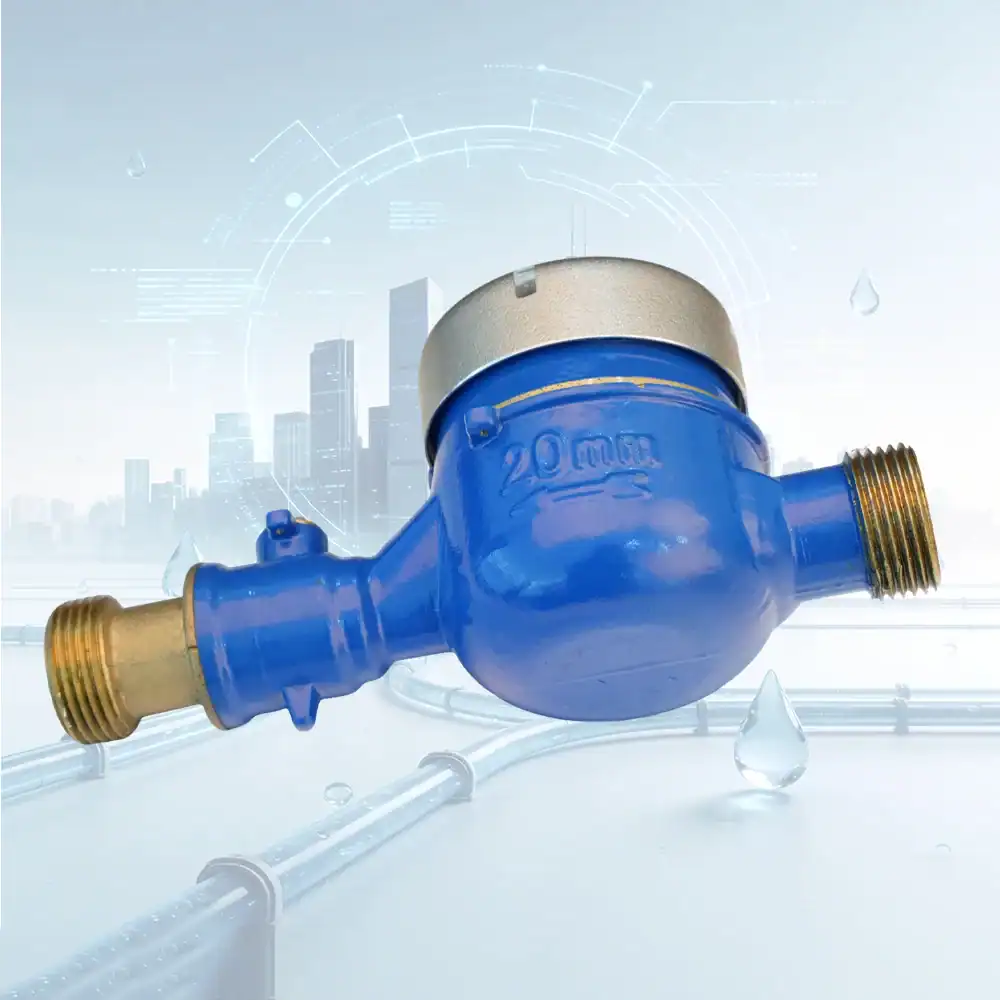

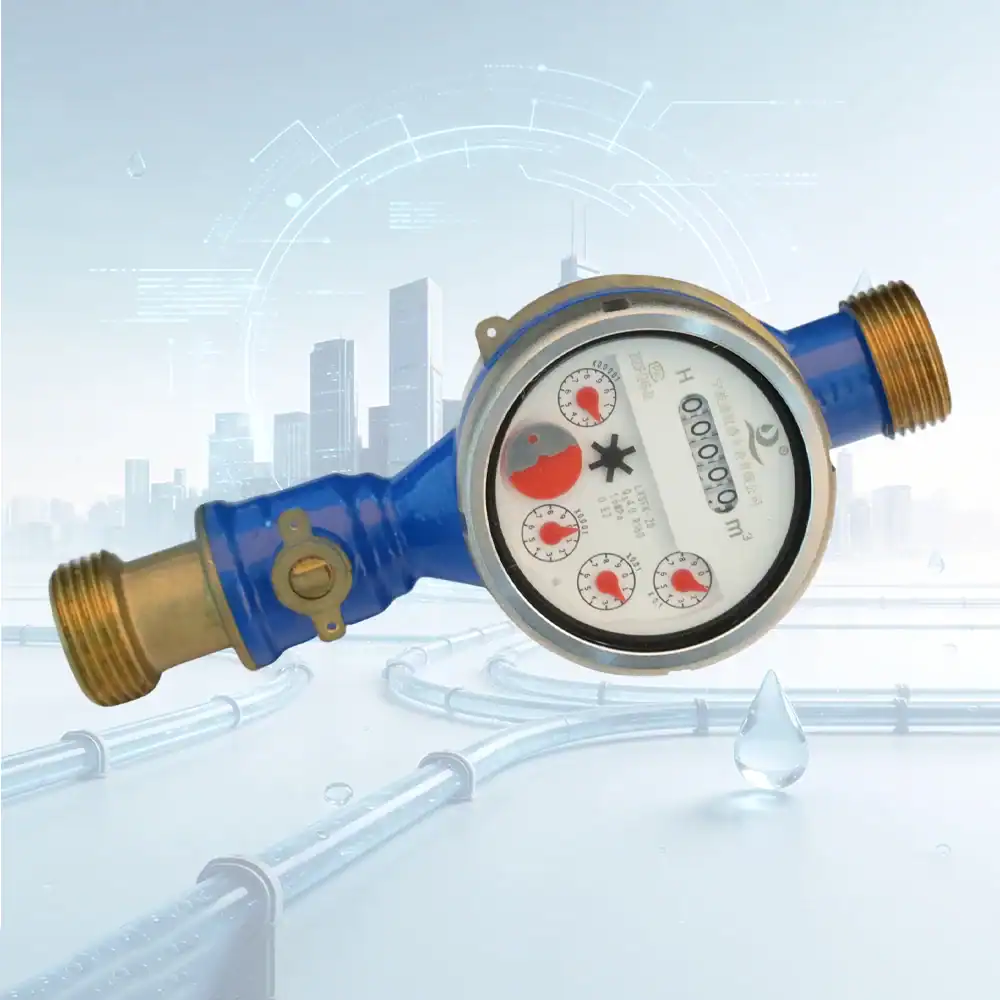

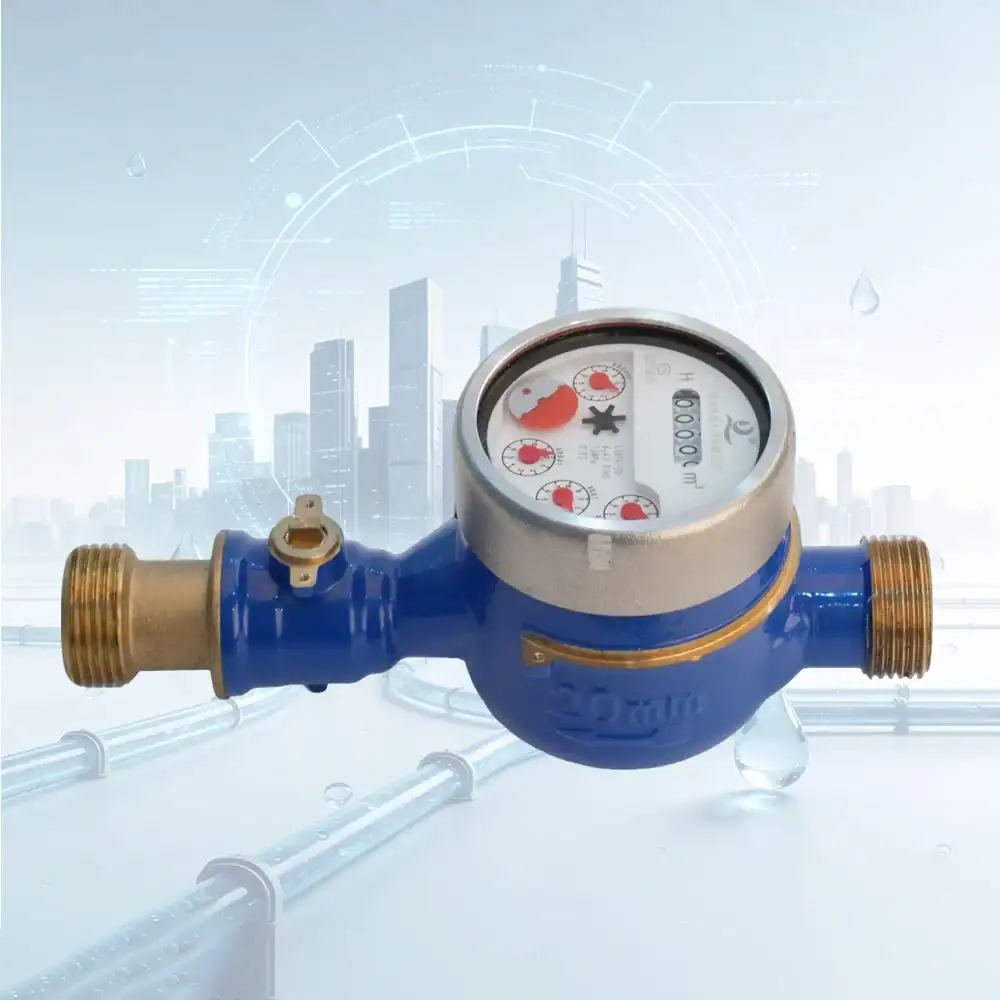

DN15 Remote Control Smart Water Meter Shut Off Valve
- High Precision: Class B (R160) accuracy captures flows as low as 5.2 L/h.
- Valve Control: Built-in valve allows for efficient remote water supply shut-off.
- IP68 Waterproof: Hermetically sealed wet dial ensures clear, condensation-free readings underwater.
- Anti-Tamper: Integrated anti-magnetic protection safeguards against external interference and theft.
- AMR-Ready: Optional pulse output easily connects to automated remote reading systems.
Â
Precision Multi-Jet Flow Measurement
Engineered for utility efficiency, this horizontal multi-jet water meter provides highly accurate velocity-type flow measurement. The unit features a hermetically sealed wet dial register, guaranteeing a condensation-free display for clear readings in any environment. Boasting a Class B (R160) accuracy rating, it captures minimal flows down to a starting flow of 5.2 L/h, significantly reducing revenue loss from undetected low-volume consumption. Fully compliant with ISO 4064 standards, this meter delivers dependable and continuous performance for residential and light commercial water networks.
Integrated Control and Extreme Durability
Designed to modernize utility management, this advanced meter integrates reliable valve control, allowing administrators to seamlessly regulate or shut off the water supply remotely. Its IP68 protection class ensures total resilience against dust and continuous submersion, making it perfect for challenging outdoor, flooded, or underground installations. Built to withstand a maximum allowable pressure of MAP16, it operates safely under diverse network conditions. Furthermore, built-in anti-magnetic protection secures the meter against tampering, while its design makes it easily adaptable for smart automated networks.
Key Features & Advantages:
- High-Precision Accuracy: Achieves an exceptional R160 measuring range with a permanent flow rate of 2.5 mÂł/h, ensuring highly precise utility billing data.
- Smart Valve Control: A built-in valve mechanism enables efficient water supply shut-off and flow management, greatly enhancing operational control.
- Tamper-Proof Durability: Features an IP68 waterproof rating and robust anti-magnetic protection to safeguard measurement integrity against harsh conditions and outside interference.
- Automated Reading Ready: Comes AMR-ready with optional pulse output, facilitating seamless data transmission for modern smart grid systems.
Â
Â
Functional Parameters
| Meter Type | Multi Jet with valve control |
| Measuring Principle | Velocity Type |
| Dial Type | Wet Dial, Sealed Register |
| Installation Orientation | Horizontal |
| Protection Class | IP68 |
| Temperature Class | T30/T50 |
| Pressure Class | MAP16 |
| Accuracy Class | Class B (R160) |
| Standard Compliance | ISO 4064 |
| Anti-Magnetic Protection | Yes |
| Sealing Type | Hermetically Sealed Register |
| Optional Output | Pulse Output/AMR Ready |
Dimensional Parameters
| Nominal Diameter (DN) | DN15 (15 mm) |
| Length (L) | 165mm |
| Width (W) | 80 mm |
| Height (H) | 88 mm |
| Thread Type | BSP |
| Thread Size | G3/4B |
| Connection Type | Threaded |
Flow Parameters
| Q1 (Minimum Flow Rate) | 15.625 L/h |
| Q2 (Transitional Flow Rate) | 25 L/h |
| Q3 (Permanent Flow Rate) | 2.5 mÂł/h |
| Q4 (Overload Flow Rate) | 3.125 mÂł/h |
| R Value (Q3/Q1) | 160 |
| Starting Flow | 5.2 L/h |
| Pressure Loss at Q3 | ≤0.063 MPa |
| Maximum Reading | 99 999 mÂł |
| Minimum Reading | 0.00005 mÂł (0.05 L) |
