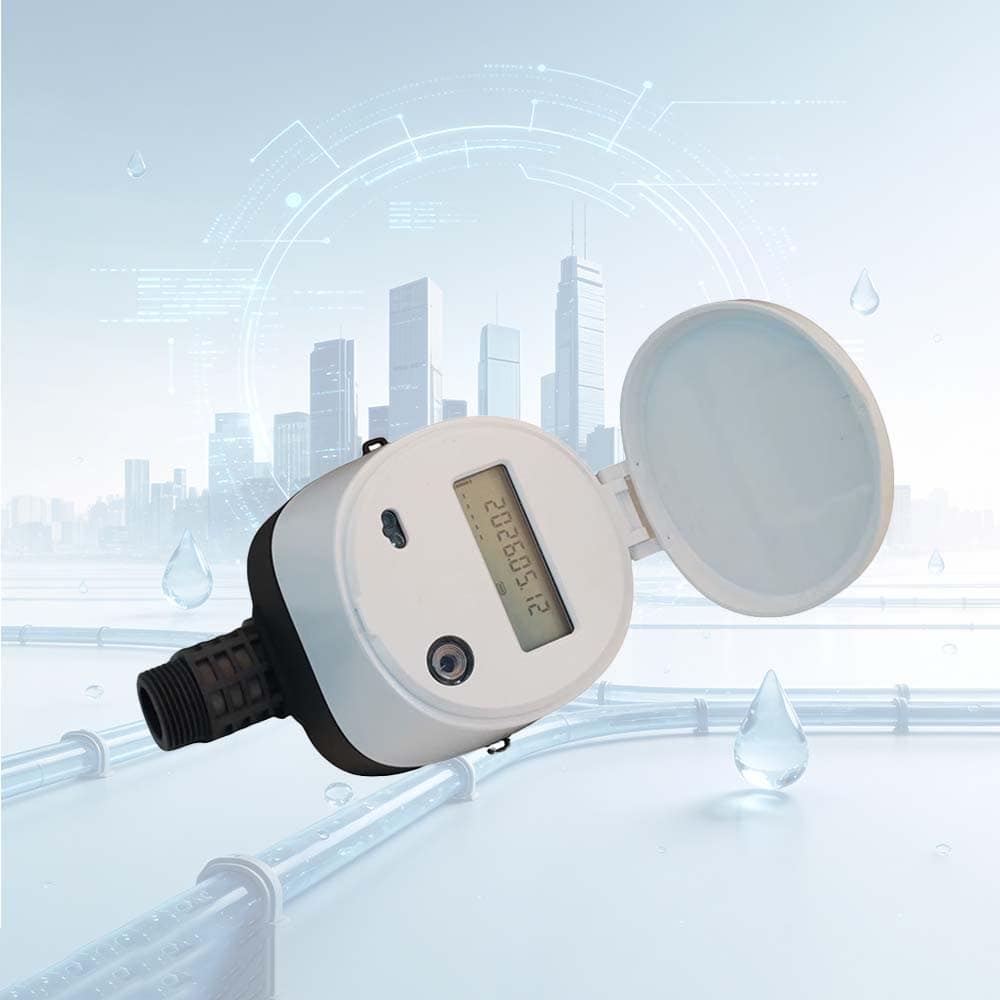

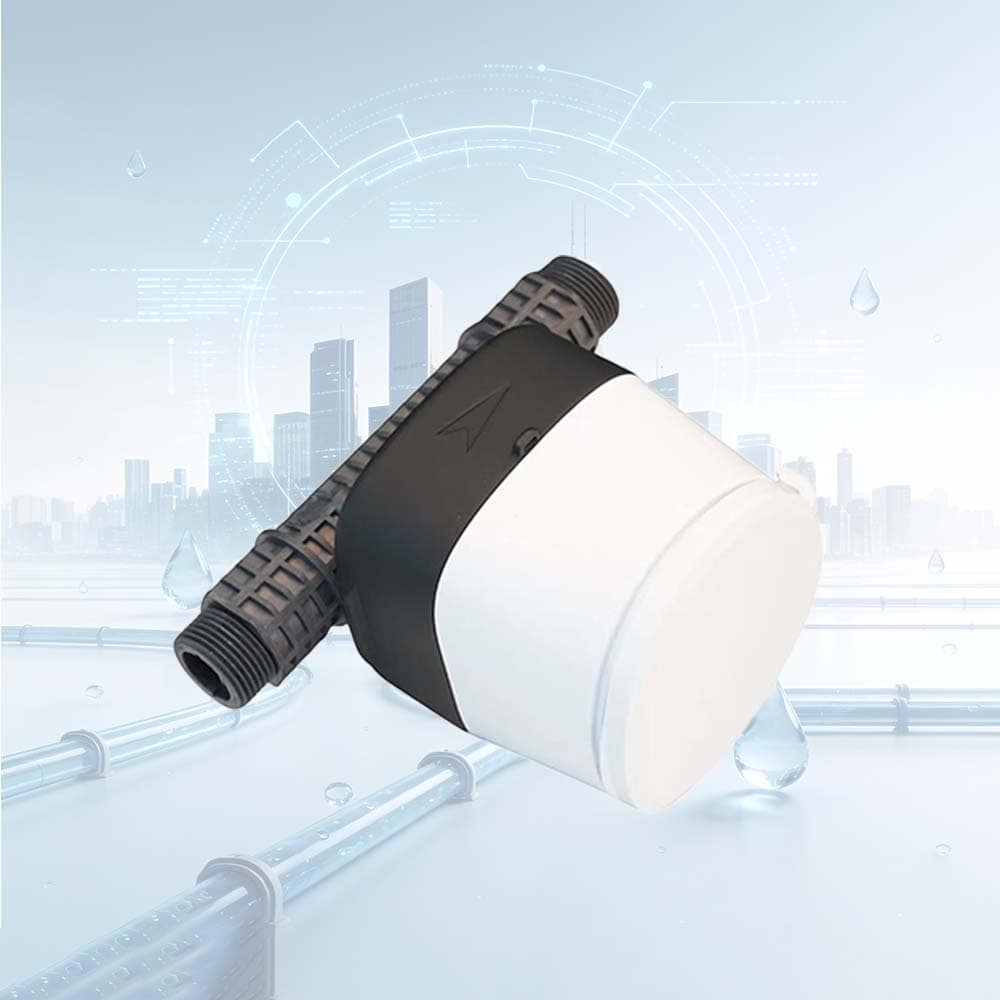

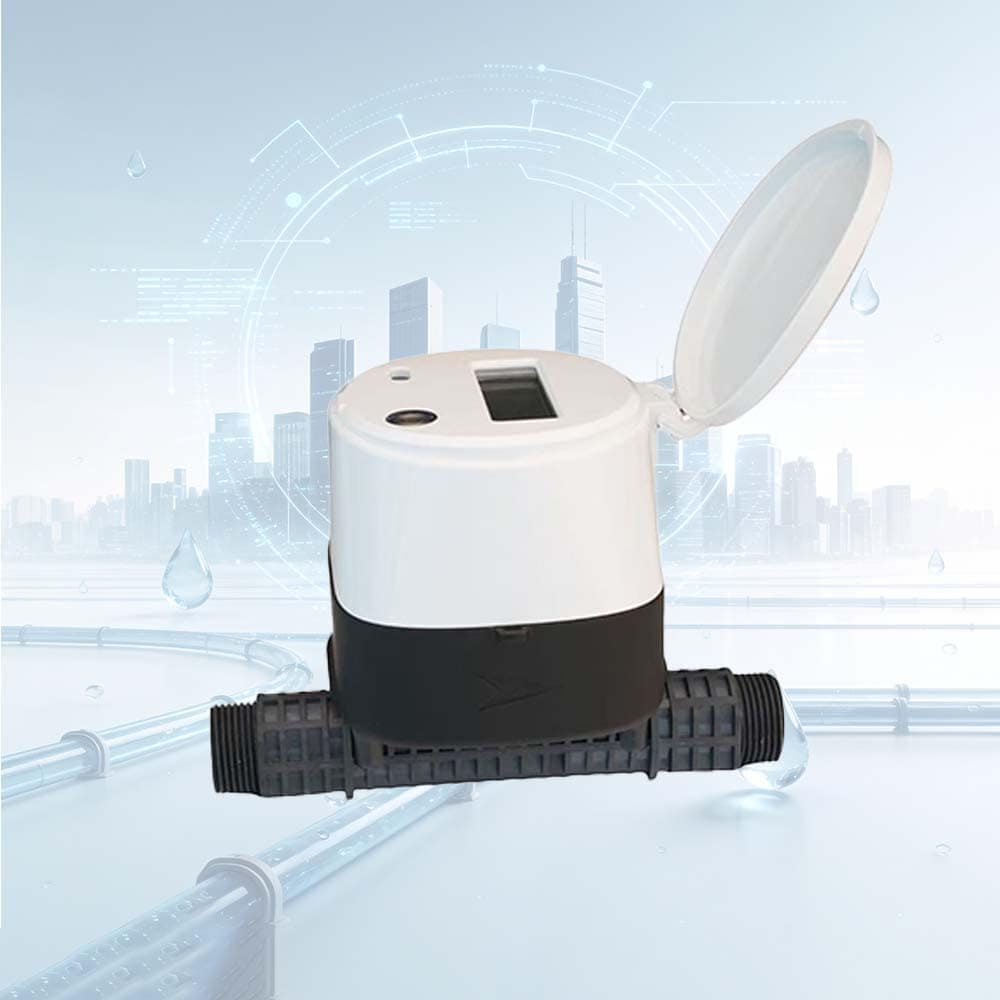

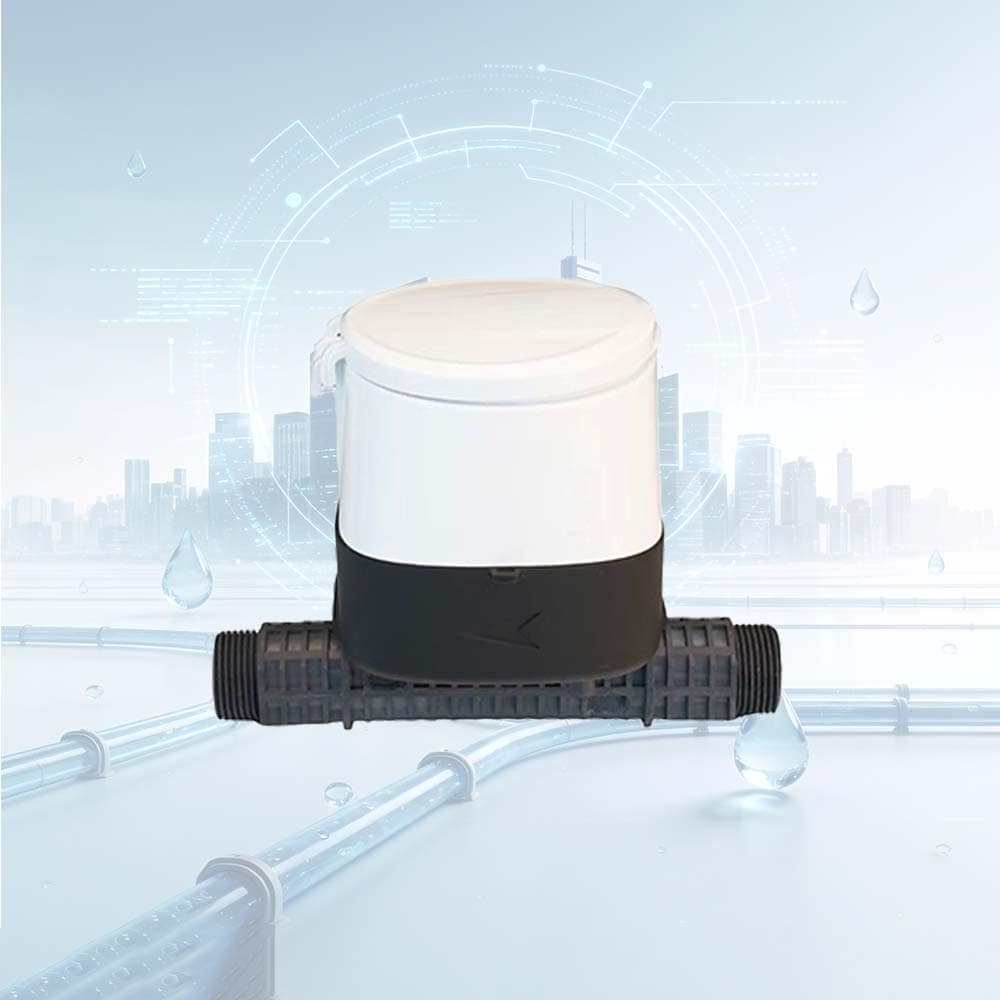

Residential Ultrasonic Water Meter with Composite Plastic Body

Advanced Ultrasonic Precision

Experience next-level accuracy with our Integrated Ultrasonic Water Meter, designed to deliver flawless measurement for modern water management systems. Powered by cutting-edge ultrasonic technology, this meter eliminates moving parts to guarantee long-term stability and prevent mechanical wear. It achieves an outstanding standard accuracy class of R400 (scalable up to R800), capturing even the smallest leaks with a remarkably low starting flow of just 2.08 L/h. The clear, built-in LED dial ensures that utilities and consumers can easily access precise data, tracking consumption down to a minimum reading of 0.01L.

Unmatched Durability and Flexible Installation

Engineered for the toughest environments, this compact DN15 (15 mm) water meter boasts a rugged IP68 protection class, ensuring it remains completely waterproof and fully operational even when fully submerged. It performs reliably across diverse thermal environments (T30/T50/T90 temperature classes) and safely handles high network pressures up to MAP16. Furthermore, the innovative U0/D0 installation design allows the meter to be mounted in any orientation without requiring straight pipe sections, saving crucial space and dramatically reducing installation complexity.

Key Features & Advantages:

• AMR Ready Connectivity: Designed for the smart grid, the AMR Ready output enables seamless integration into Automatic Meter Reading networks, streamlining remote data collection and lowering operational costs.
• Exceptional Flow Capacity: Fully compliant with strict ISO 4064 standards, it efficiently handles a continuous Q3 permanent flow rate of 2.5 m³/h and safely accommodates overload flows.
• Optimized Hydraulic Efficiency: Expertly engineered to minimize pipeline resistance, delivering an ultra-low pressure loss of ≤0.063 MPa, which protects your infrastructure and reduces energy waste.
