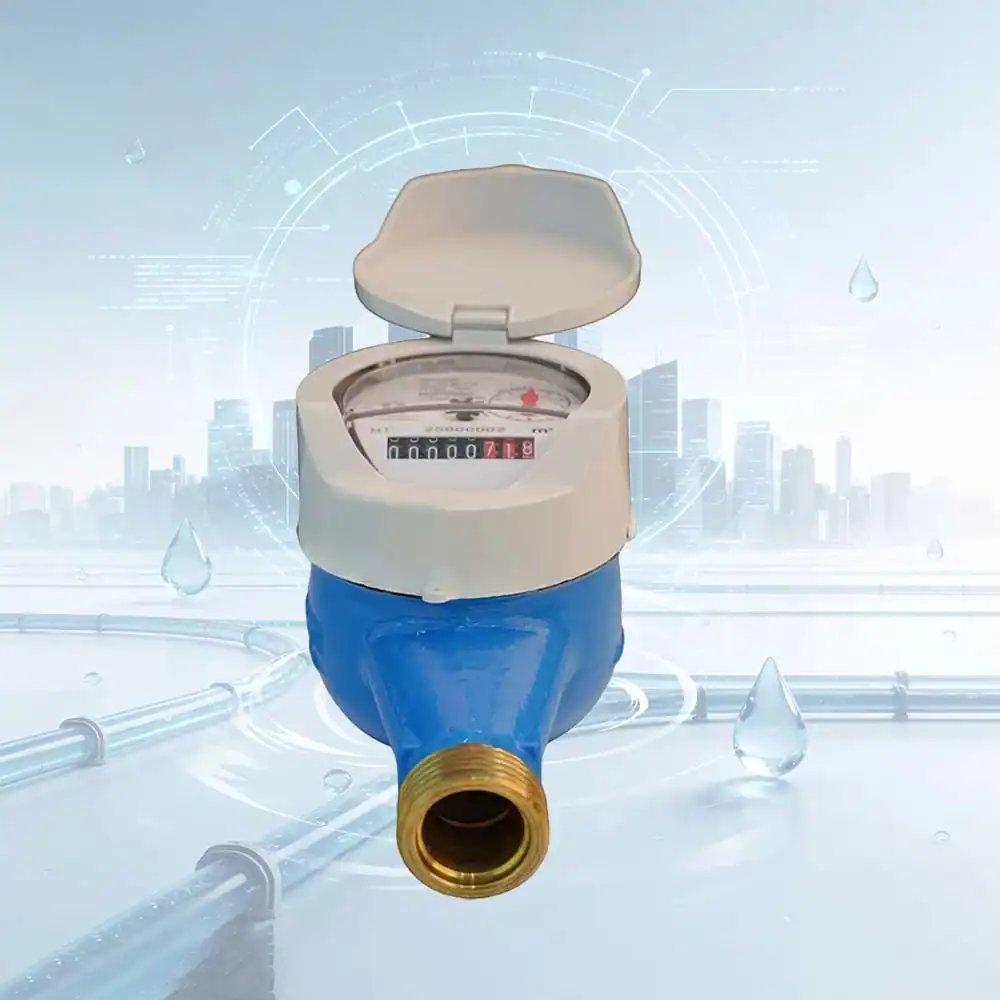

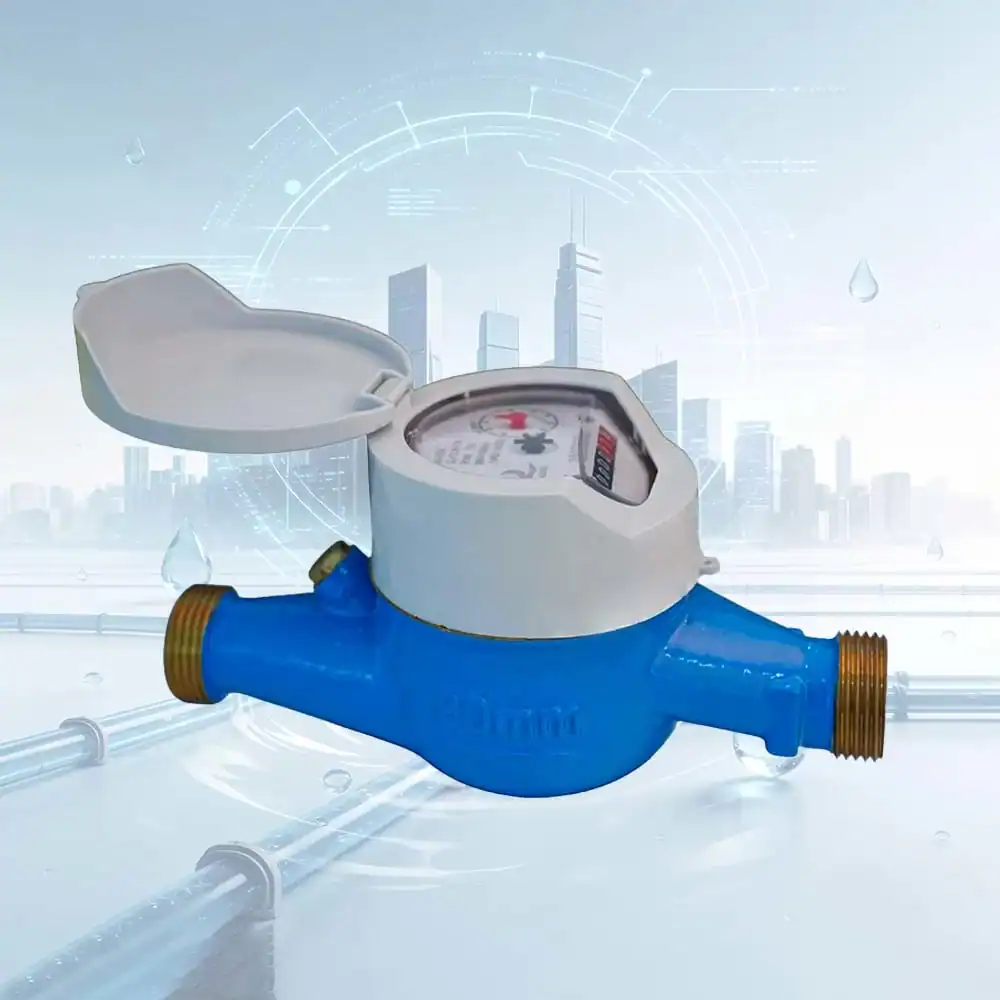

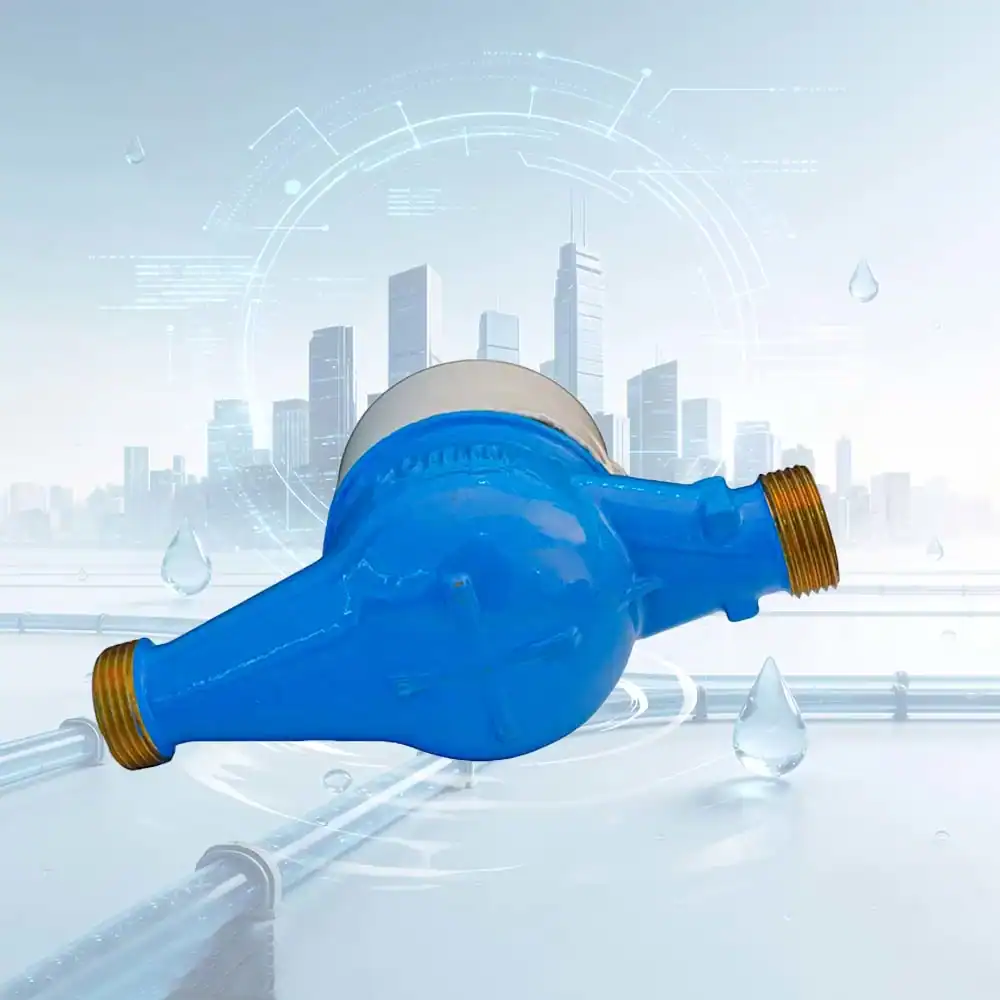

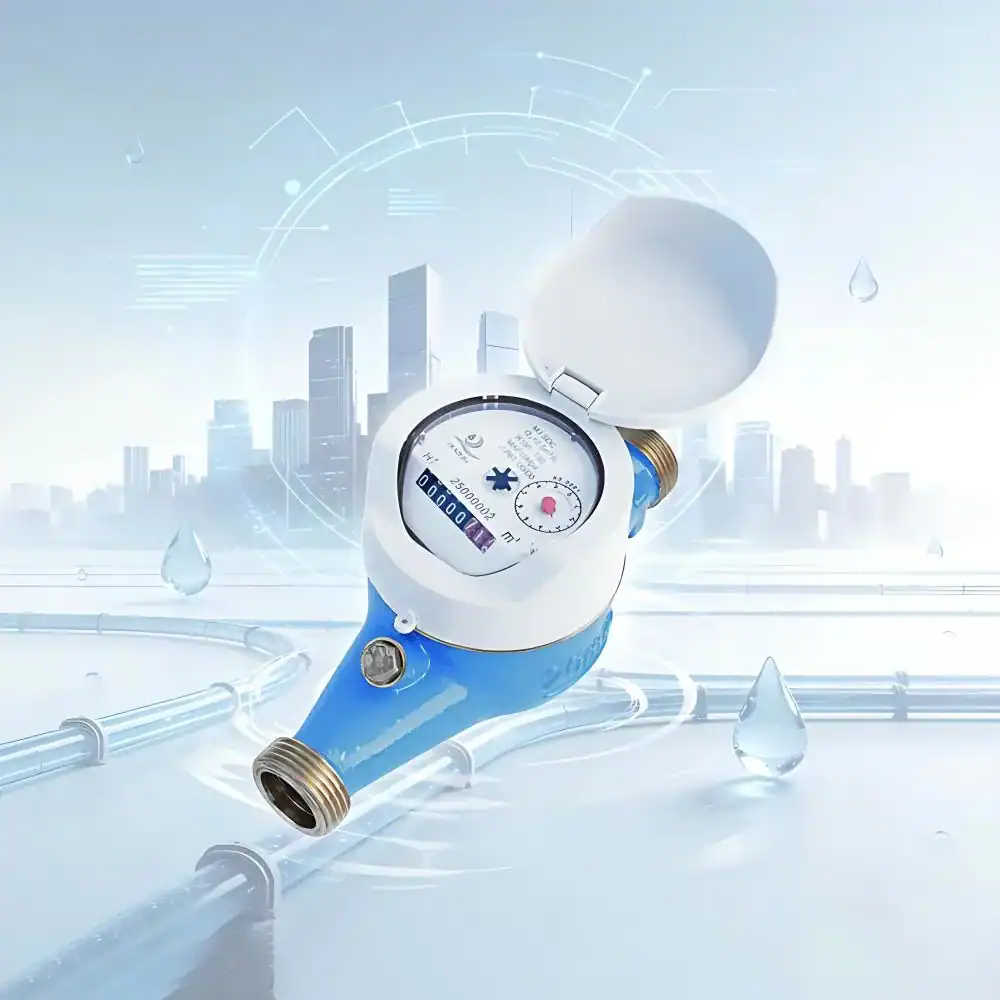

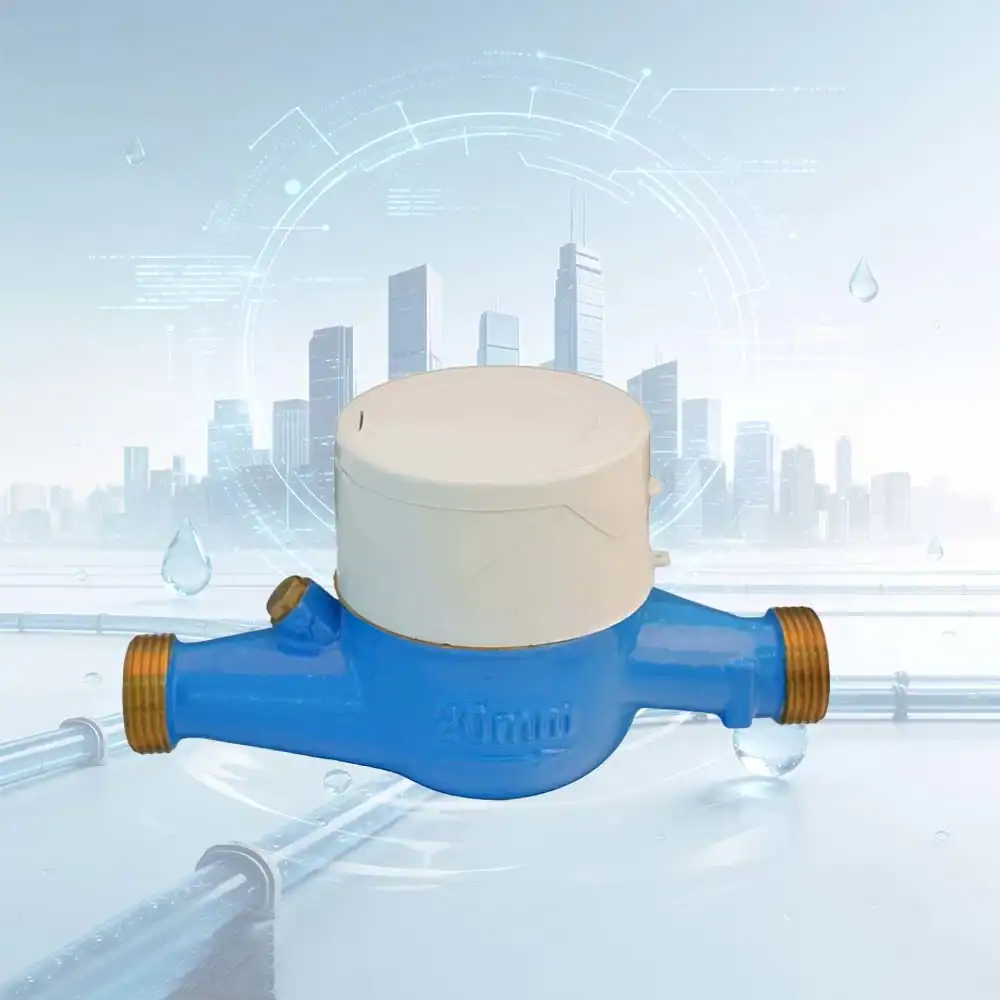

R100 Accuracy Brass Multi Jet Dry Type Water Meter With Inclined Register
- Fog-Free Dry Dial Display – Hermetically sealed 45°C register stays permanently clear, ensuring accurate readings in wet or underground conditions.
- IP68 Waterproof & Anti-Magnetic – Fully submersible housing with built-in tamper protection for secure, long-term outdoor installation.
- Class B (R100) High Accuracy – Detects flow from as low as 13.3 L/h, capturing every drop for precise billing and leak detection.
- ISO 4064 Certified – Meets international standards for dependable, compliant performance across global markets.
- Tool-Free Drop-In Fit – Standard DN20 G3/4B BSP thread with 190mm face-to-face length for effortless retrofit or new installation.
Precision Measurement for Residential & Light Commercial Use
This DN20 Multi-Jet Dry Dial Water Meter is engineered for reliable, long-term performance in horizontal pipeline installations. Built on a velocity-type measuring principle, the multi-jet design distributes water flow evenly across the impeller, delivering consistently stable and accurate readings throughout its service life. Its hermetically sealed, 45°C dry dial register keeps the display permanently fog-free and fully legible, even in damp or submerged environments.
Built for Durability and Reliability
The meter carries an IP68 protection rating, making it fully submersible and highly resistant to dust and water ingress — ideal for underground or outdoor metering applications. A built-in anti-magnetic protection mechanism guards against tampering and external magnetic interference, ensuring billing integrity. The magnetic drive transmission eliminates direct mechanical contact between the measuring chamber and register, significantly extending the meter’s operational lifespan with minimal maintenance.
Key Features & Advantages:
- ISO 4064 Class B (R100) Accuracy: An impressive dynamic range ratio of R100 means the meter accurately captures both very low and peak flows, minimizing revenue loss from undetected consumption.
- Wide Flow Range: With a starting flow as low as 13.3 L/h and a permanent flow rate of 4.0 m³/h, it handles the full spectrum of typical residential demand.
- High-Resolution Reading: Measures down to 0.05 liters, enabling precise leak detection and consumption monitoring.
- G3/4B BSP Threaded Connection: Standard DN20 / 190mm face-to-face length ensures straightforward drop-in installation and compatibility with widely used pipework.
- Robust Pressure & Temperature Ratings: Rated at MAP16 and T30, suitable for standard residential water supply systems worldwide.
Functional Parameters
| Meter Type | Multi Jet Dry Dial |
| Measuring Principle | Velocity Type |

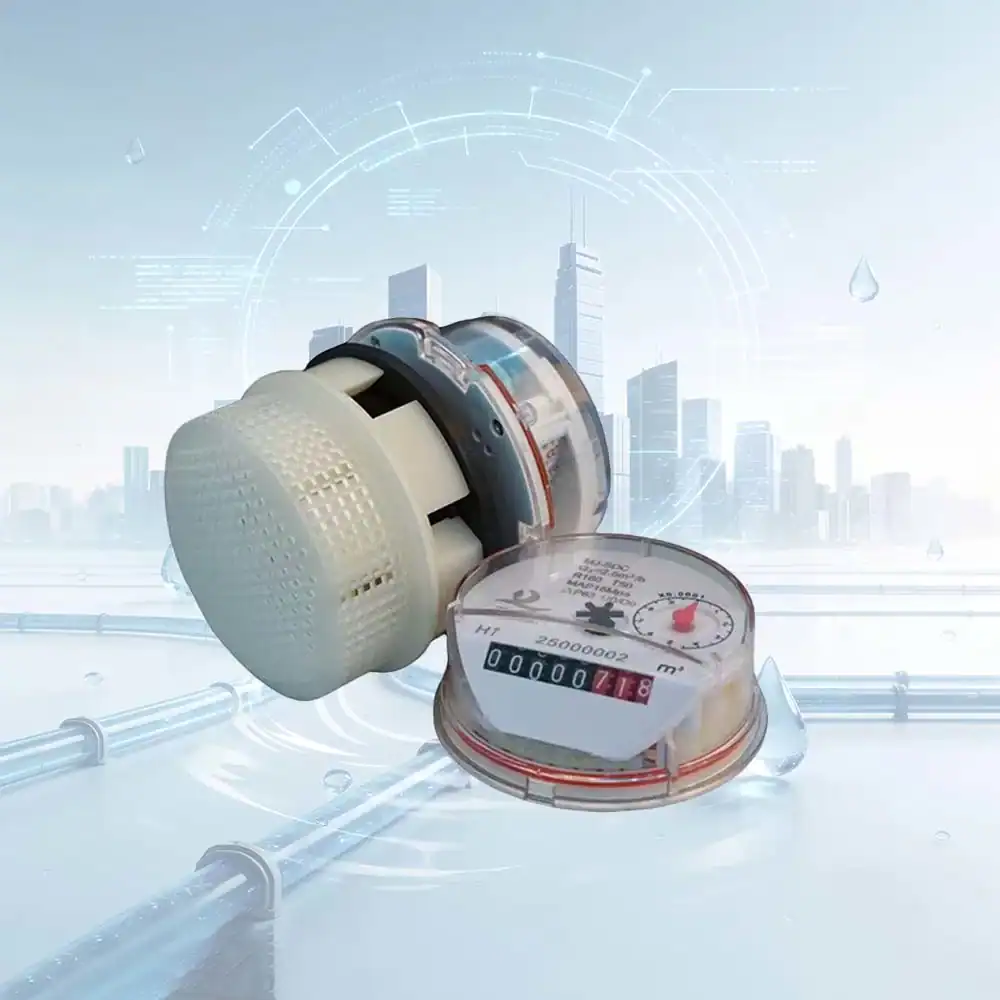

| Dial Type | Dry Dial, 45℃Sealed Register |
| Transmission Type | Magnetic Drive |
| Installation Orientation | Horizontal |
| Protection Class | IP68 |
| Temperature Class | T30 |
| Pressure Class | MAP16 |
| Accuracy Class | Class B (R100) |
| Standard Compliance | ISO 4064 |
| Anti-Magnetic Protection | Yes |
| Sealing Type | Hermetically Sealed Register |
Dimensional Parameters
| Nominal Diameter (DN) | DN20 (20 mm) |
| Length (L) | 190mm |
| Width (W) | 94 mm |
| Height (H) | 135 mm |
| Thread Type | BSP |
| Thread Size | G3/4B |
| Connection Type | Threaded |
Flow Parameters
| Q1 (Minimum Flow Rate) | 40 L/h |
| Q2 (Transitional Flow Rate) | 64 L/h |
| Q3 (Permanent Flow Rate) | 4.0 m³/h |
| Q4 (Overload Flow Rate) | 5.0 m³/h |
| R Value (Q3/Q1) | 100 |
| Starting Flow | 13.3 L/h |
| Pressure Loss at Q3 | ≤0.063 MPa |
| Maximum Reading | 99 999 m³ |
| Minimum Reading | 0.00005 m³ (0.05 L) |
