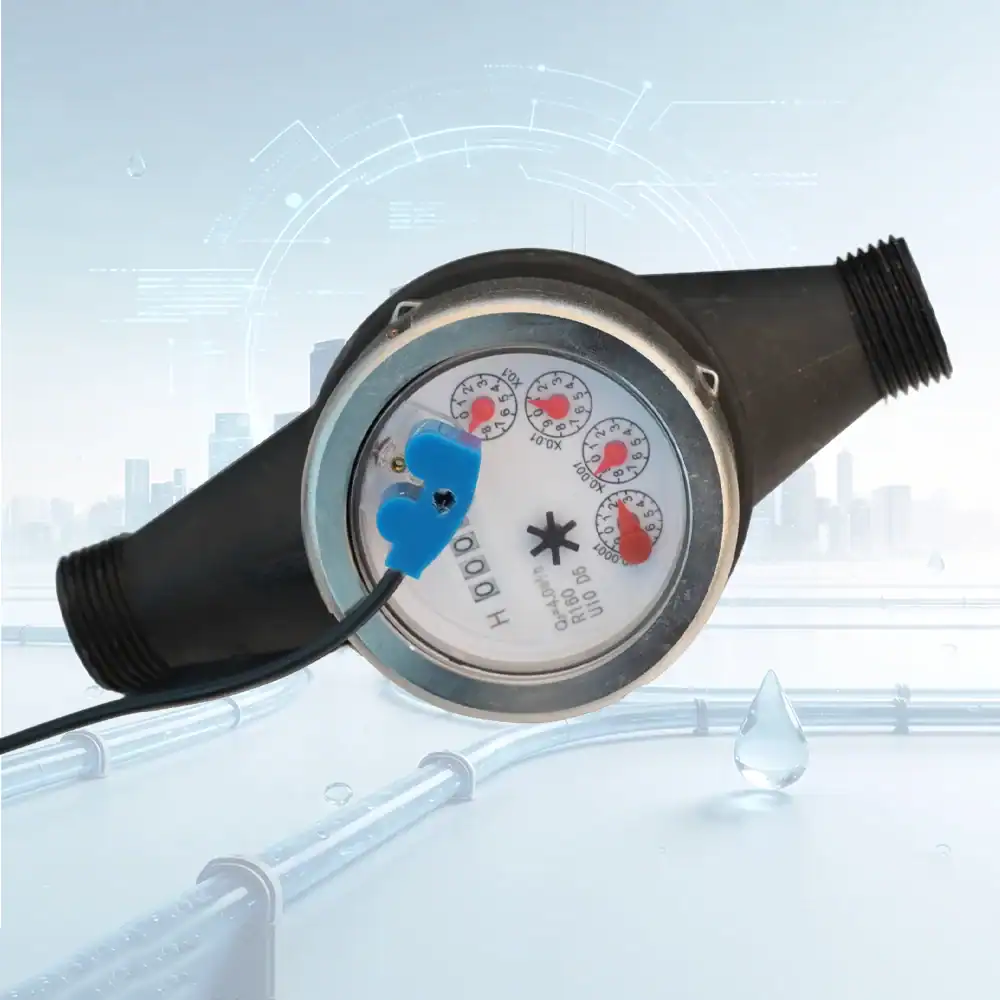

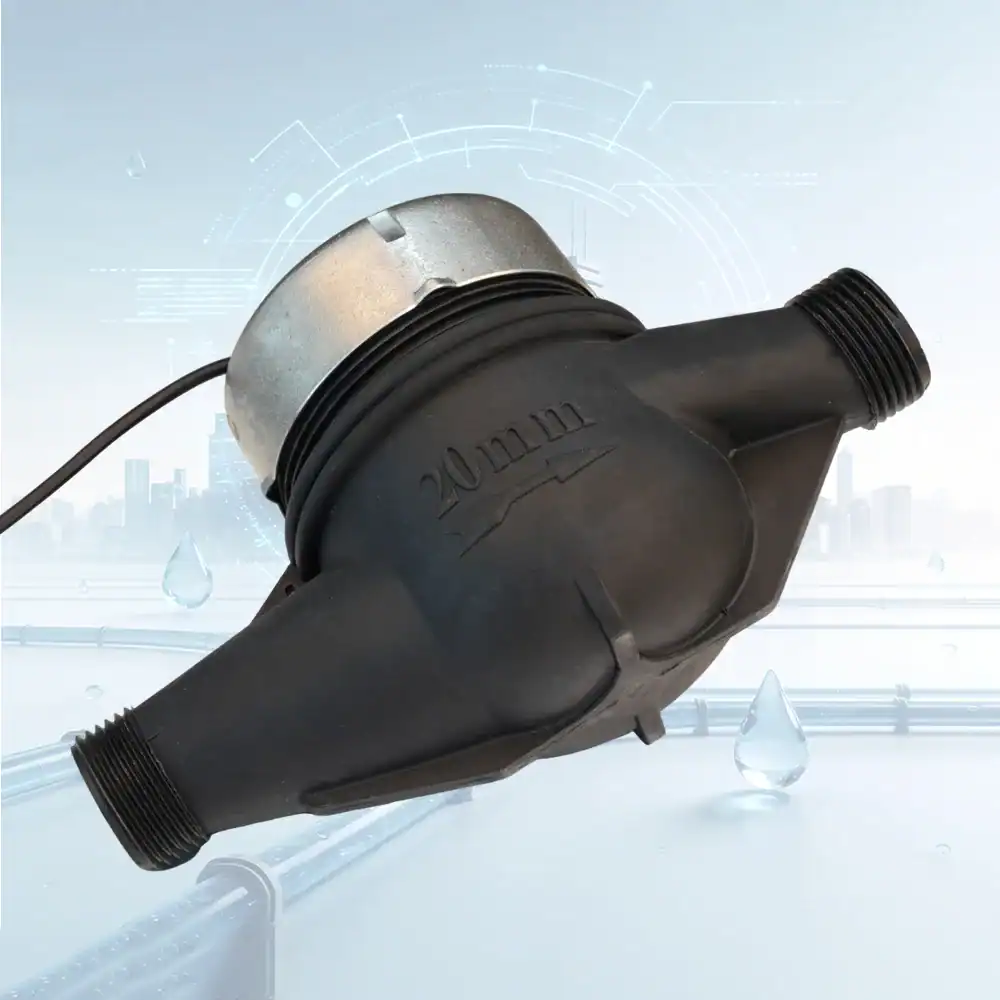

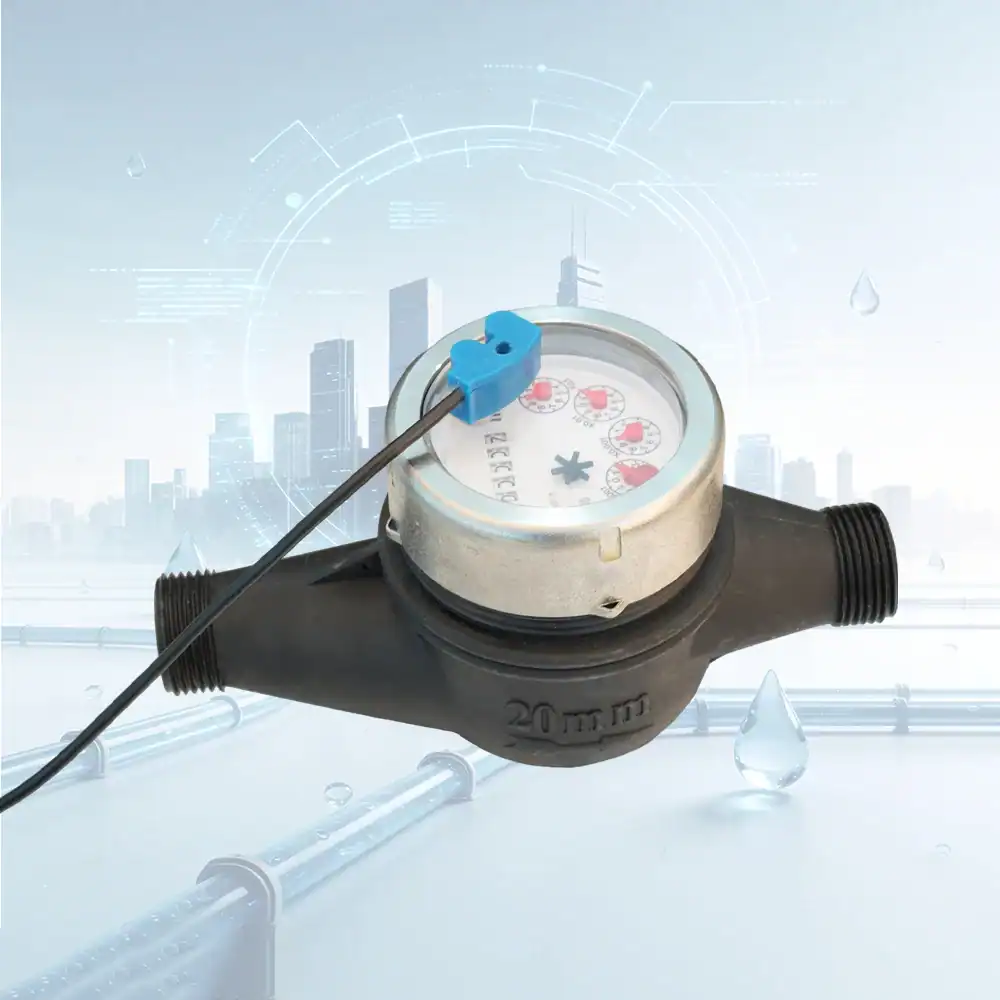

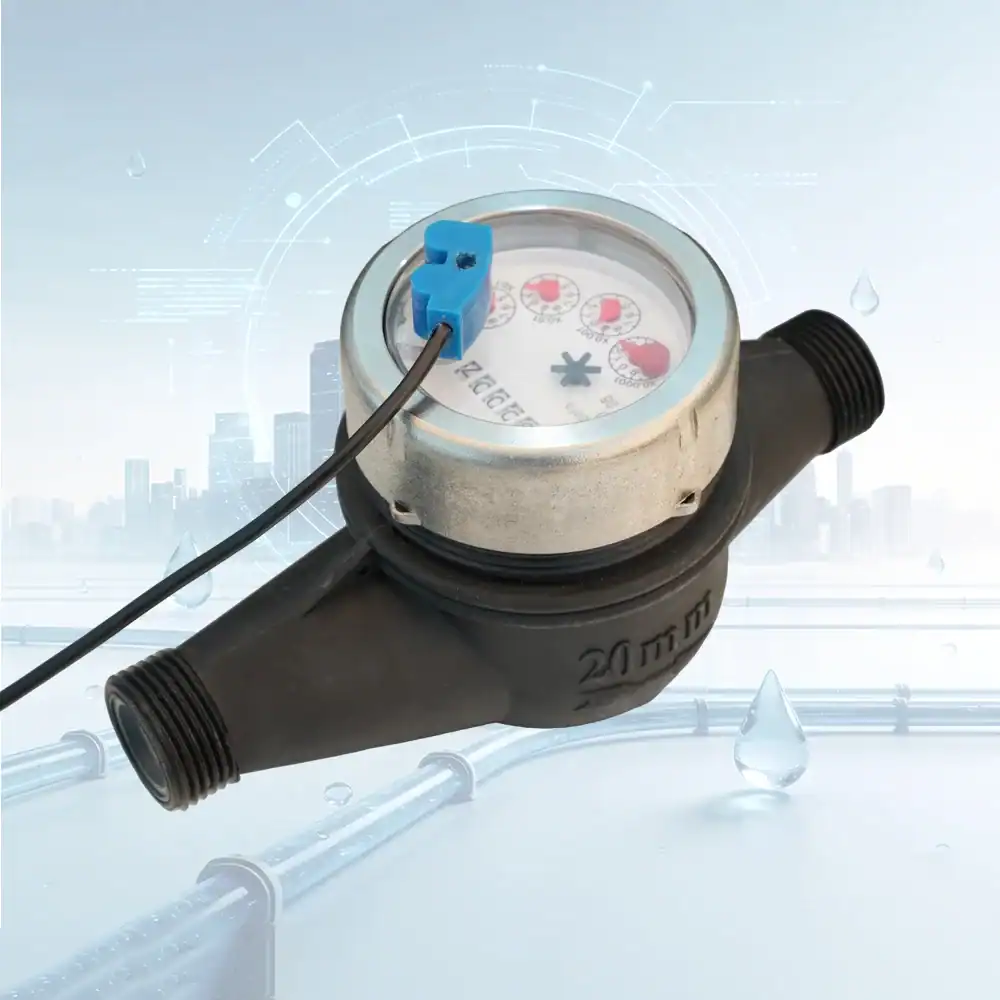

Pulse Output Water Meter for Commercial and Residential Use
- High Precision:Â R160 accuracy with an ultra-low 5.2 L/h starting flow.
- Clear Reading:Â IP68 hermetically sealed dry dial prevents fogging completely.
- Tamper-Proof:Â Built-in anti-magnetic protection perfectly secures measurement data.
- Smart-Ready:Â Optional pulse output enables easy AMR system integration.
- Reliable Build:Â ISO 4064 compliant with a durable magnetic drive.
Â
High-Precision Multi-Jet Dry Dial Water Meter
Designed for exceptional accuracy and long-lasting durability, this DN15 (15 mm) water meter operates on a reliable velocity-type measuring principle. It complies with stringent ISO 4064 standards, ensuring optimal performance for residential and commercial water measurement. With a robust MAP16 pressure class and an IP68 protection class, this device is fully protected against dust and prolonged water immersion, making it highly reliable even in the most demanding environments.
Advanced Magnetic Drive & Clear Readability
The meter features an advanced magnetic drive transmission and a hermetically sealed dry dial register. This specialized design keeps the counting mechanism completely isolated from water, guaranteeing a clear reading that never fogs or scales over time. Engineered for horizontal installation, it effortlessly handles a permanent flow rate (Q3) of 2.5 mÂł/h while capturing minimal water usage with an ultra-low starting flow of just 5.2 L/h. It easily supports a massive maximum reading of 99,999 mÂł.
Key Features & Advantages:
- Class B (R160) Accuracy: Delivers superior measurement precision across wide flow ranges, minimizing non-revenue water loss and ensuring exact billing.
- Anti-Magnetic Protection: Built-in tamper resistance safeguards the meter’s magnetic drive against external magnetic interference, heavily securing your data integrity.
- AMR & Pulse Output Ready: Designed with future-proofing in mind, this meter is easily upgradable for modern smart water management systems, allowing seamless integration with remote reading setups.
Functional Parameters
| Meter Type | Multi Jet Dry Dial |
| Measuring Principle | Velocity Type |
| Dial Type | Dry Dial, Sealed Register |
| Transmission Type | Magnetic Drive |
| Installation Orientation | Horizontal |
| Protection Class | IP68 |
| Temperature Class | T30/T50 |
| Pressure Class | MAP16 |
| Accuracy Class | Class B (R160) |
| Standard Compliance | ISO 4064 |
| Anti-Magnetic Protection | Yes |
| Sealing Type | Hermetically Sealed Register |
| Optional Output | Pulse Output/AMR Ready |
Dimensional Parameters
| Nominal Diameter (DN) | DN15 (15 mm) |
| Length (L) | 165mm |
| Width (W) | 94 mm |
| Height (H) | 135 mm |
| Thread Type | BSP |
| Thread Size | G3/4B |
| Connection Type | Threaded |
Flow Parameters
| Q1 (Minimum Flow Rate) | 15.625 L/h |
| Q2 (Transitional Flow Rate) | 25 L/h |
| Q3 (Permanent Flow Rate) | 2.5 mÂł/h |
| Q4 (Overload Flow Rate) | 3.125 mÂł/h |
| R Value (Q3/Q1) | 160 |
| Starting Flow | 5.2 L/h |
| Pressure Loss at Q3 | ≤0.063 MPa |
| Maximum Reading | 99 999 mÂł |
| Minimum Reading | 0.00005 mÂł (0.05 L) |
