Multi-Jet Plant Water Meter 40mm ISO 4064

Superior Precision for Commercial Utility Management

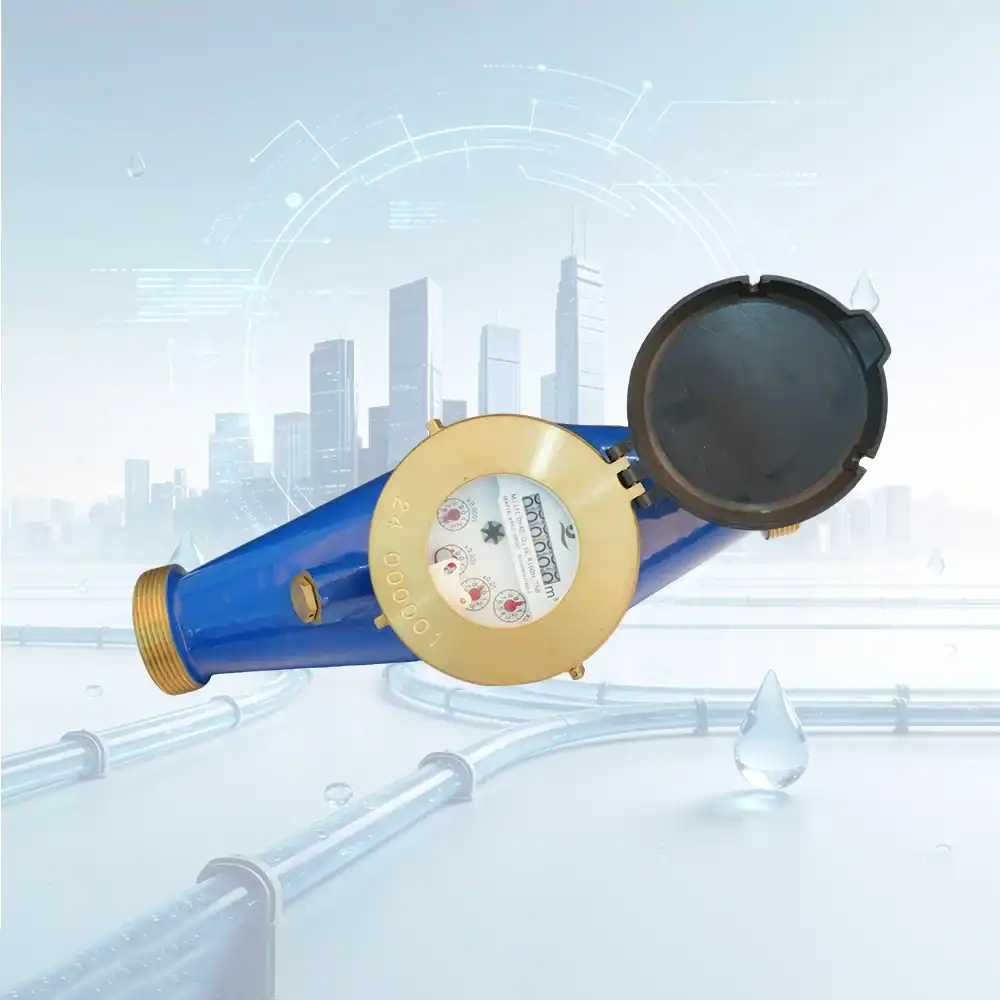

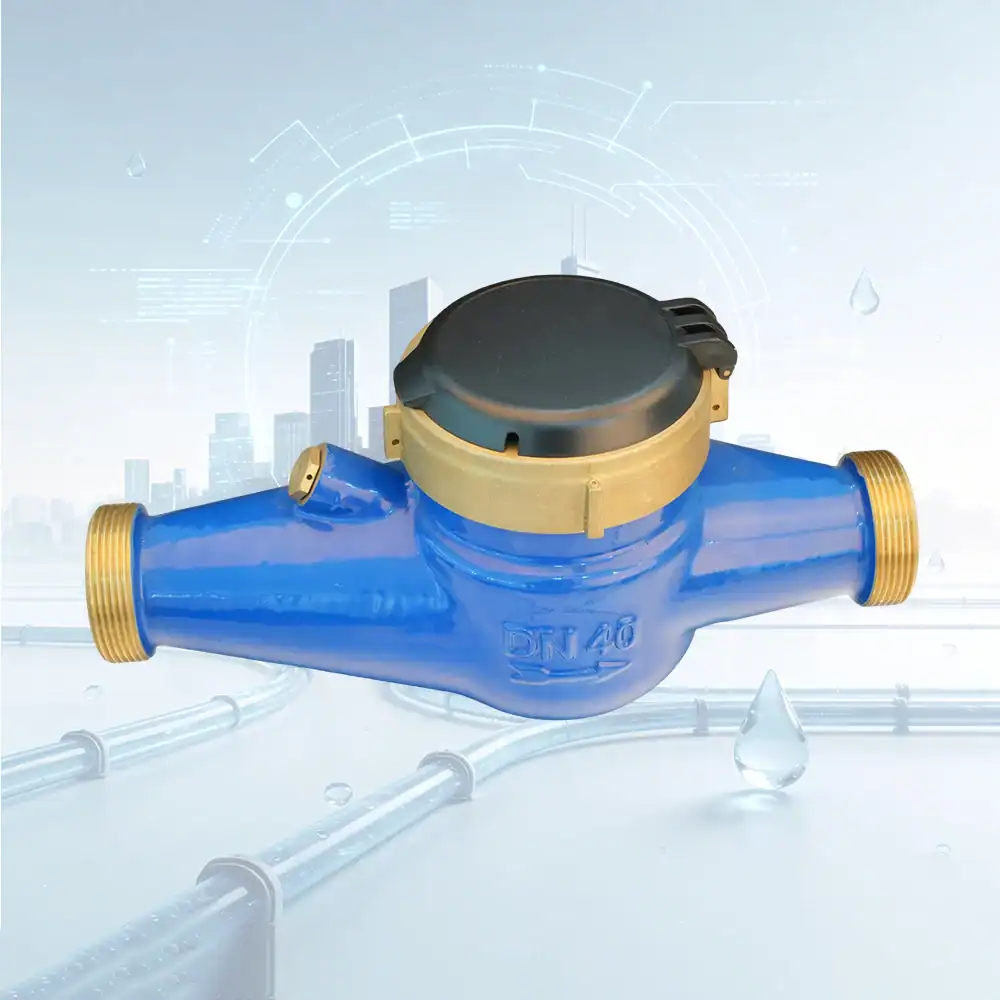

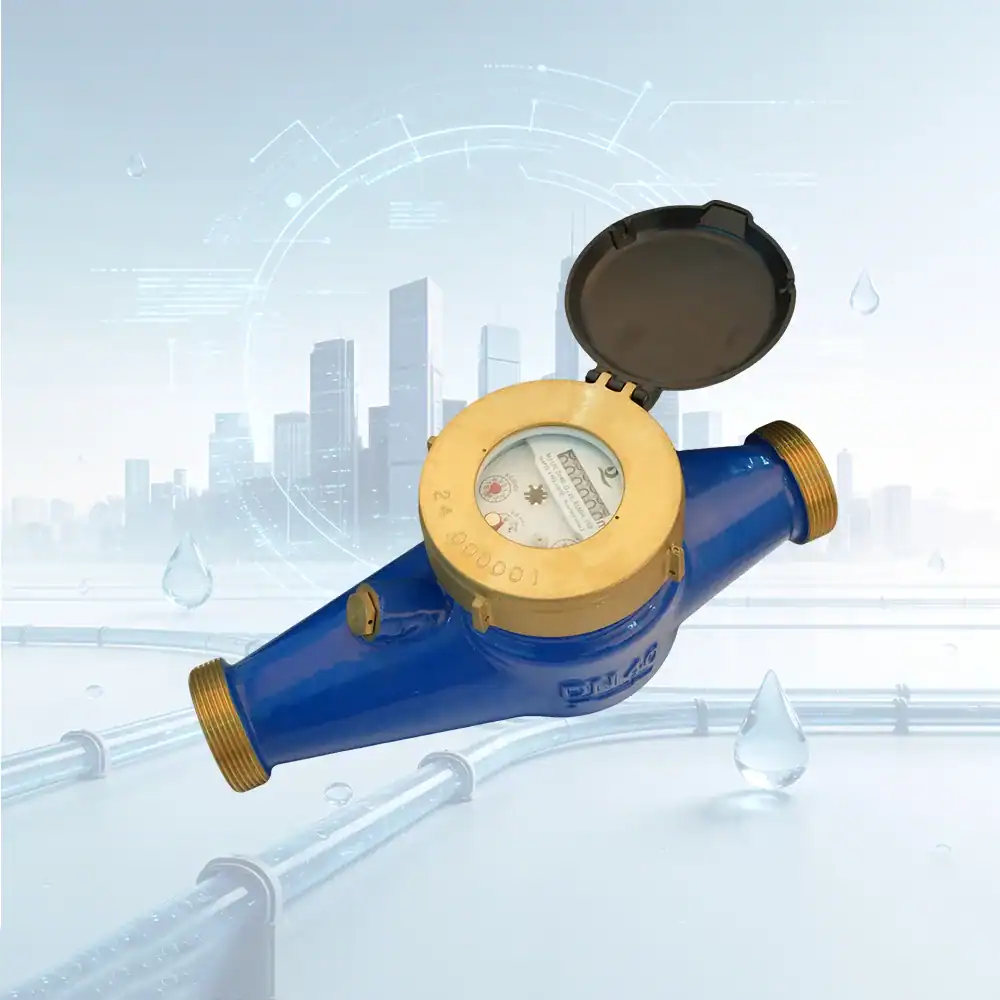

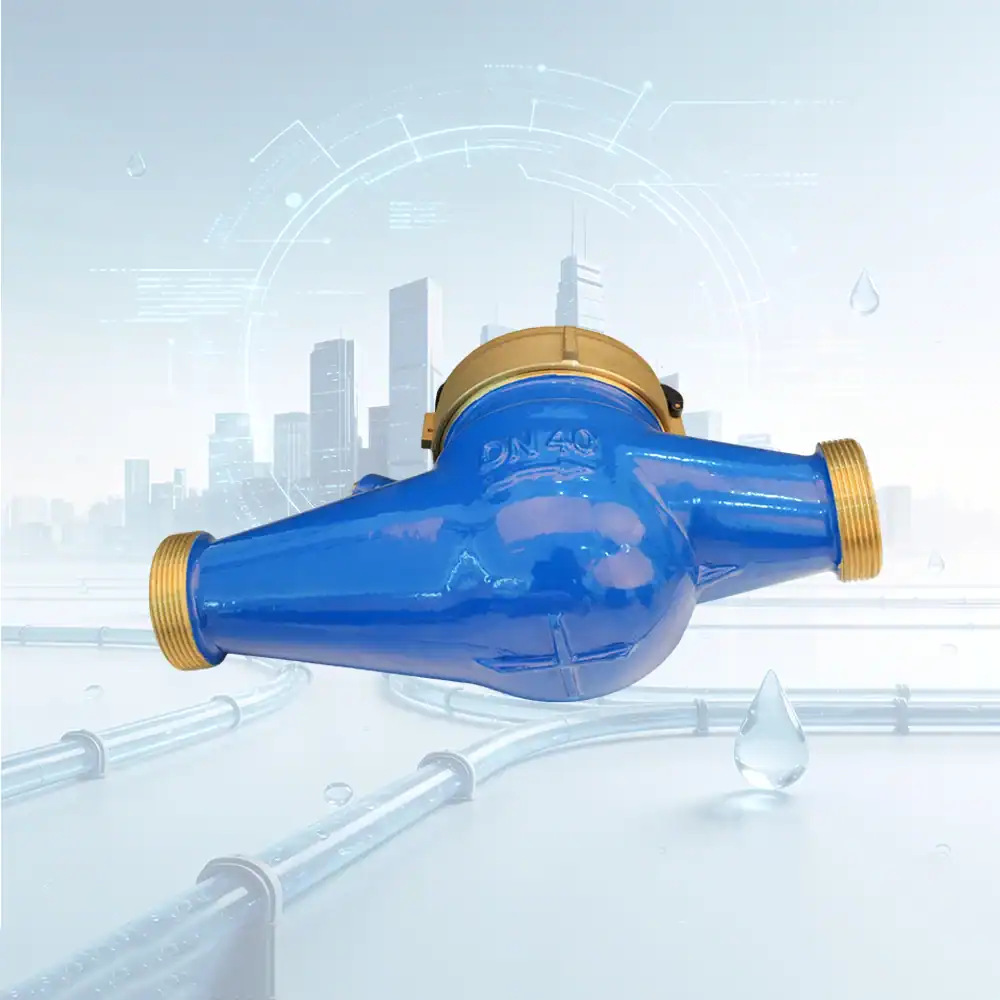

Engineered for optimal flow measurement, this DN40 Multi-Jet Dry Dial Water Meter delivers highly accurate water tracking for residential and commercial applications. Operating on a reliable velocity-type measuring principle, it seamlessly handles a permanent flow rate (Q3) of 16 m³/h and an overload capacity up to 20 m³/h. Fully compliant with strict ISO 4064 standards, this meter guarantees long-term stability and precise billing data for utility providers worldwide.

Rugged Durability Meets Smart Technology

Built to perform in the most demanding environments, the meter boasts an exceptional IP68 protection class, featuring a hermetically sealed register that entirely prevents internal condensation and frost. This ensures the dial remains crystal clear over its lifespan. Beyond its physical toughness against MAP16 pressure and temperature fluctuations (T30/T50), it is designed for the modern smart utility grid. With built-in Pulse Output and AMR-ready capabilities, it allows for effortless remote data transmission and automated network management.

Key Features & Advantages:

• Exceptional Accuracy (Class B / R100): Captures low flows efficiently with a minimum flow rate (Q1) of 160 L/h, while maintaining a minimal pressure loss of ≤0.063 MPa to keep your system running smoothly.
• Anti-Magnetic Security: Features advanced magnetic drive transmission paired with robust anti-magnetic protection, strictly preventing data tampering and ensuring reliable, secure readouts up to a maximum of 999 999 m³.
• Effortless Horizontal Installation: Comes equipped with standard BSP G2B threaded connections and a convenient 245mm length, guaranteeing a quick, secure, and hassle-free horizontal integration into existing pipe infrastructures.
