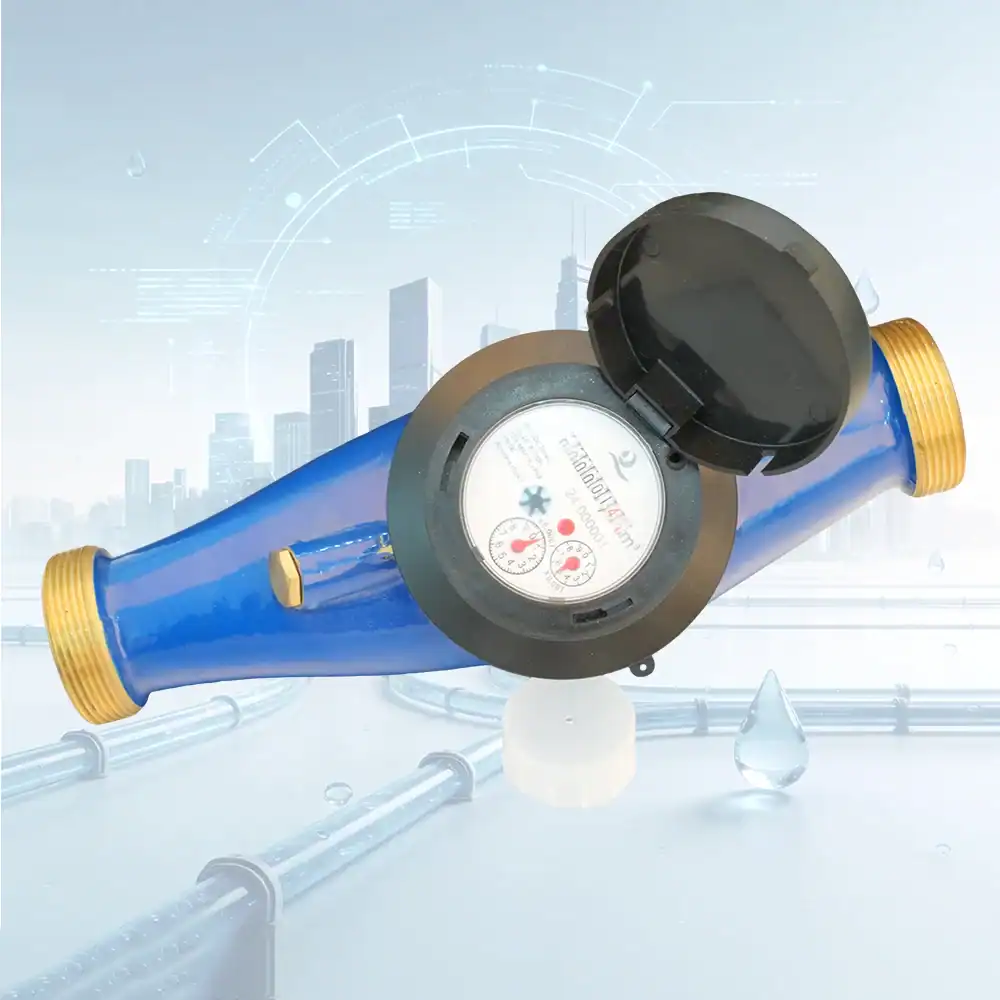

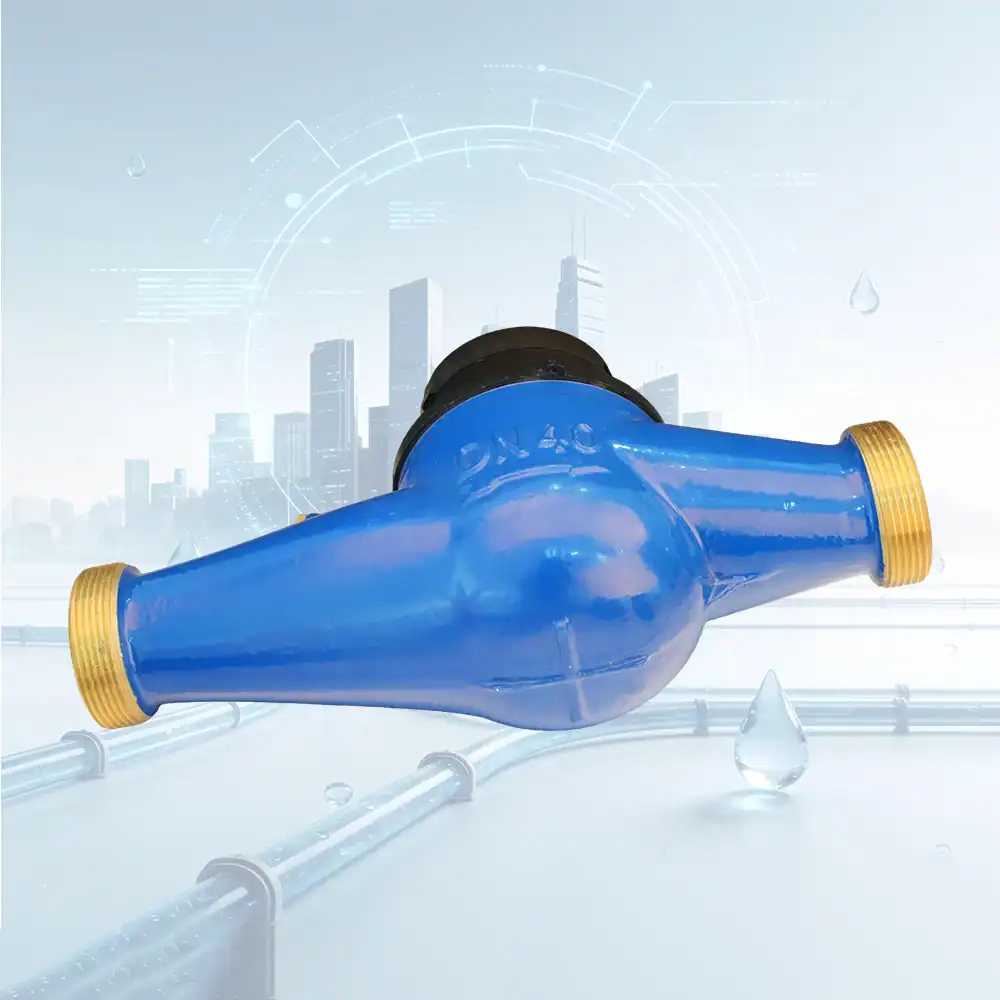

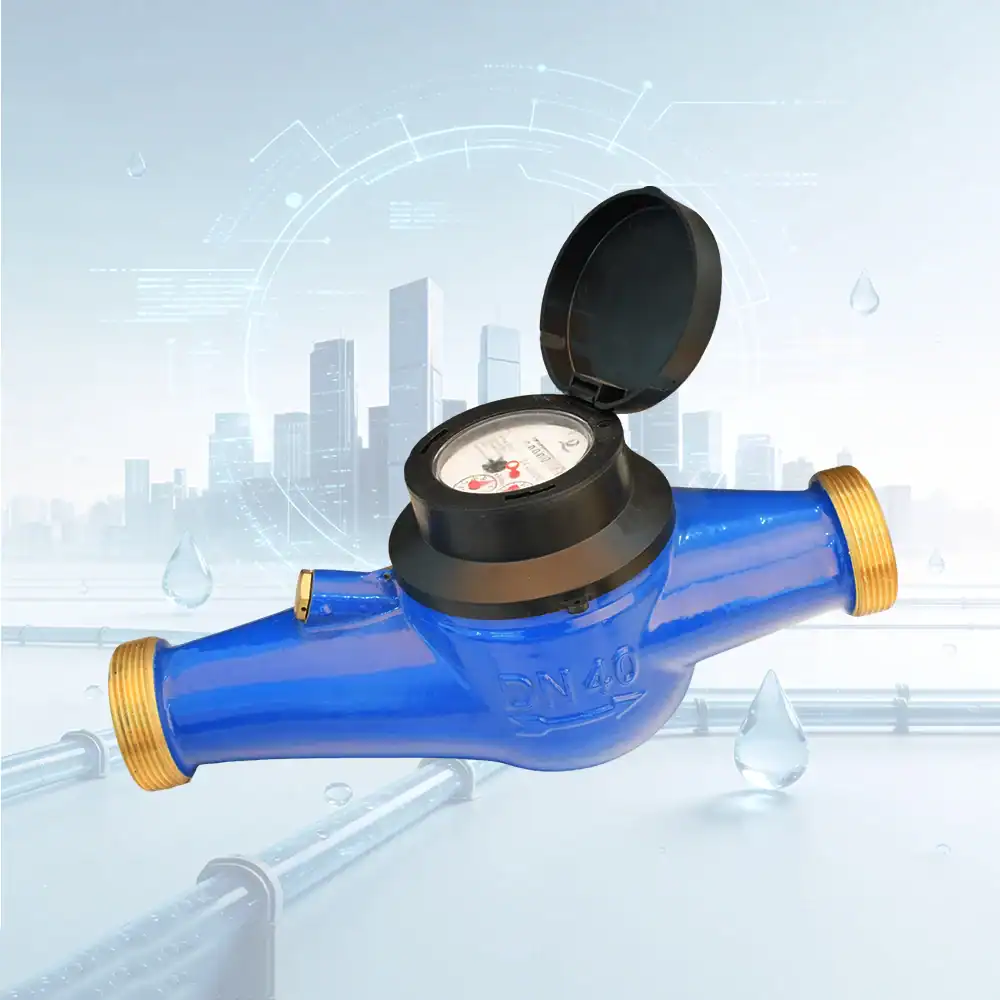

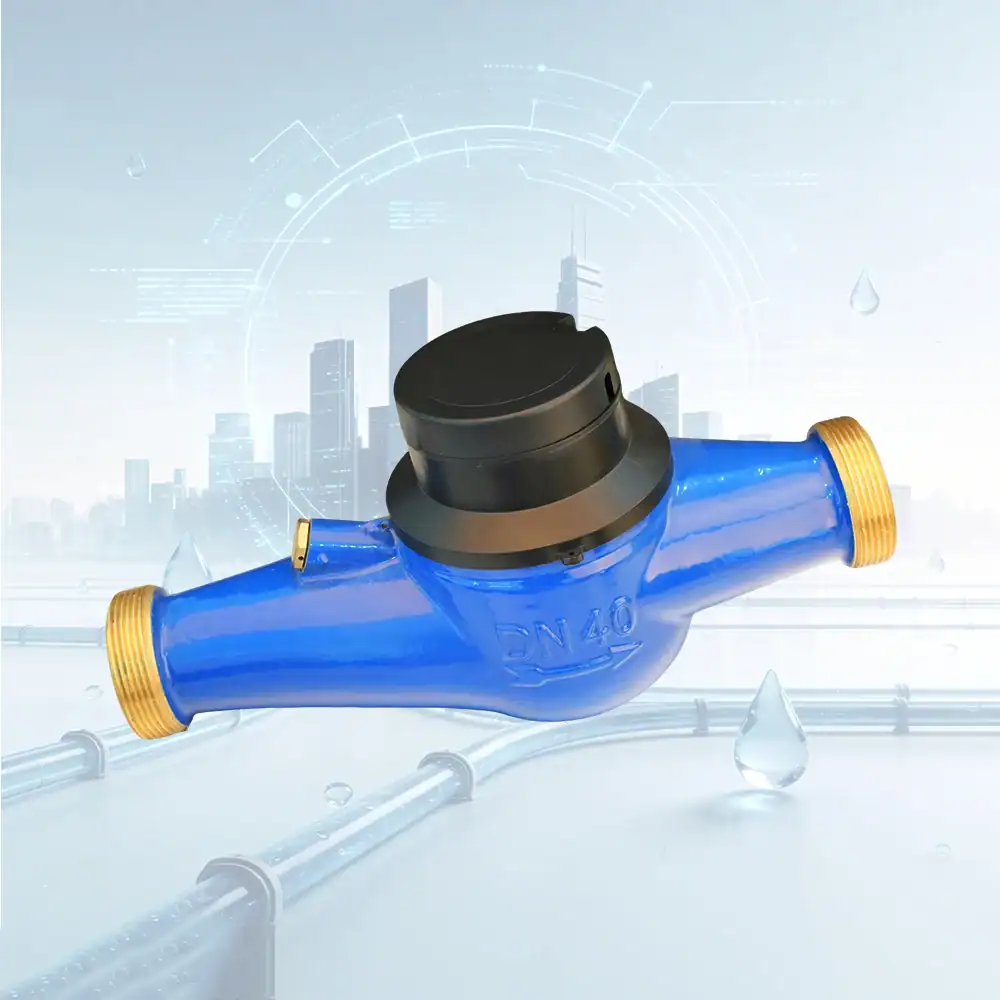

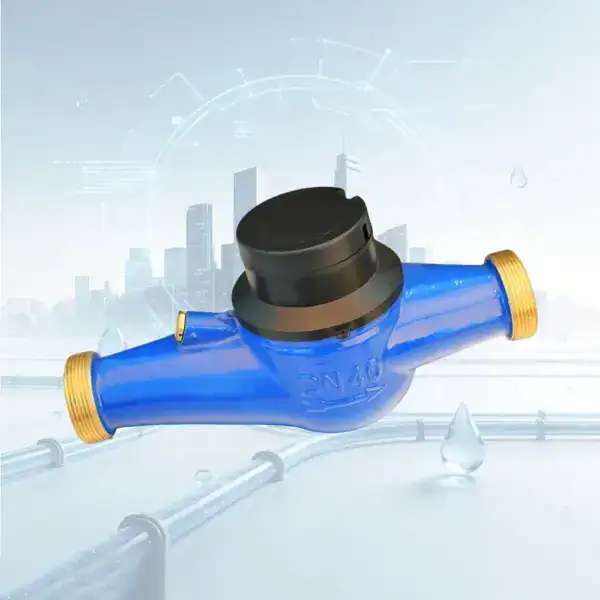

ISO 4064 DN40 Multi-Jet 40mm Water Meter

Reliable Multi-Jet Dry Dial Water Measurement

Designed for precise and stable commercial and residential utility management, this Multi-Jet Dry Dial Water Meter ensures exceptional accuracy. With a nominal diameter of DN40 (40 mm) and a robust permanent flow rate (Q3) of 16 m³/h, it handles high-volume water measurement efficiently. The device strictly complies with the ISO 4064 standard, guaranteeing internationally recognized performance, accurate billing, and reliability for long-term operations.

Built for Durability and Smart Integration

Engineered for harsh environments, the meter features a hermetically sealed register and achieves an IP68 protection class, making it fully waterproof and immune to internal condensation. To protect against unauthorized tampering and ensure data integrity, it includes built-in anti-magnetic protection. Furthermore, it is future-proofed for modern smart water grids, offering Optional Pulse Output and AMR-ready capabilities for seamless remote data transmission and automated meter reading.

Key Features & Advantages:

• High Measurement Precision: Delivers a wide measuring range with a Class B (R100) accuracy, capturing low flows down to a minimum flow rate (Q1) of 160 L/h while maintaining minimal pressure loss (≤0.063 MPa).
• Magnetic Drive & Clear Display: Utilizes advanced magnetic drive transmission to keep the dial dry and frost-resistant, ensuring the maximum capacity reading of 999 999 m³ remains crystal clear and legible over years of service.
• Robust & Versatile Installation: Built to withstand high system pressures up to MAP16 and flexible temperature environments (T30/T50), featuring standard BSP G2B threaded connections (length 245mm) for secure, horizontal installation.
