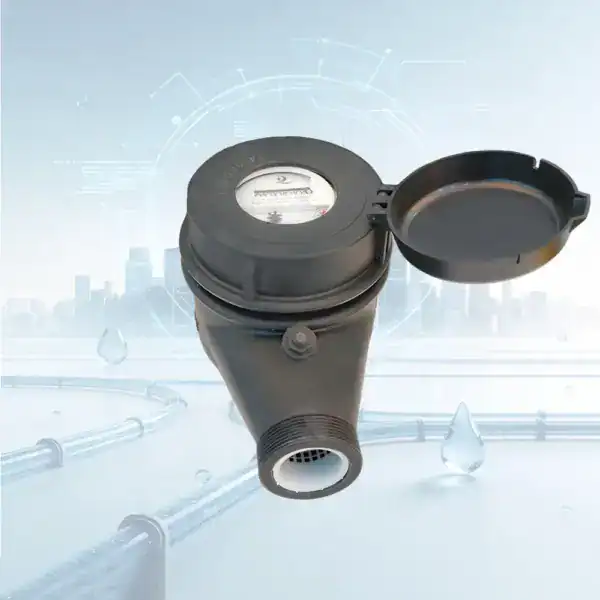

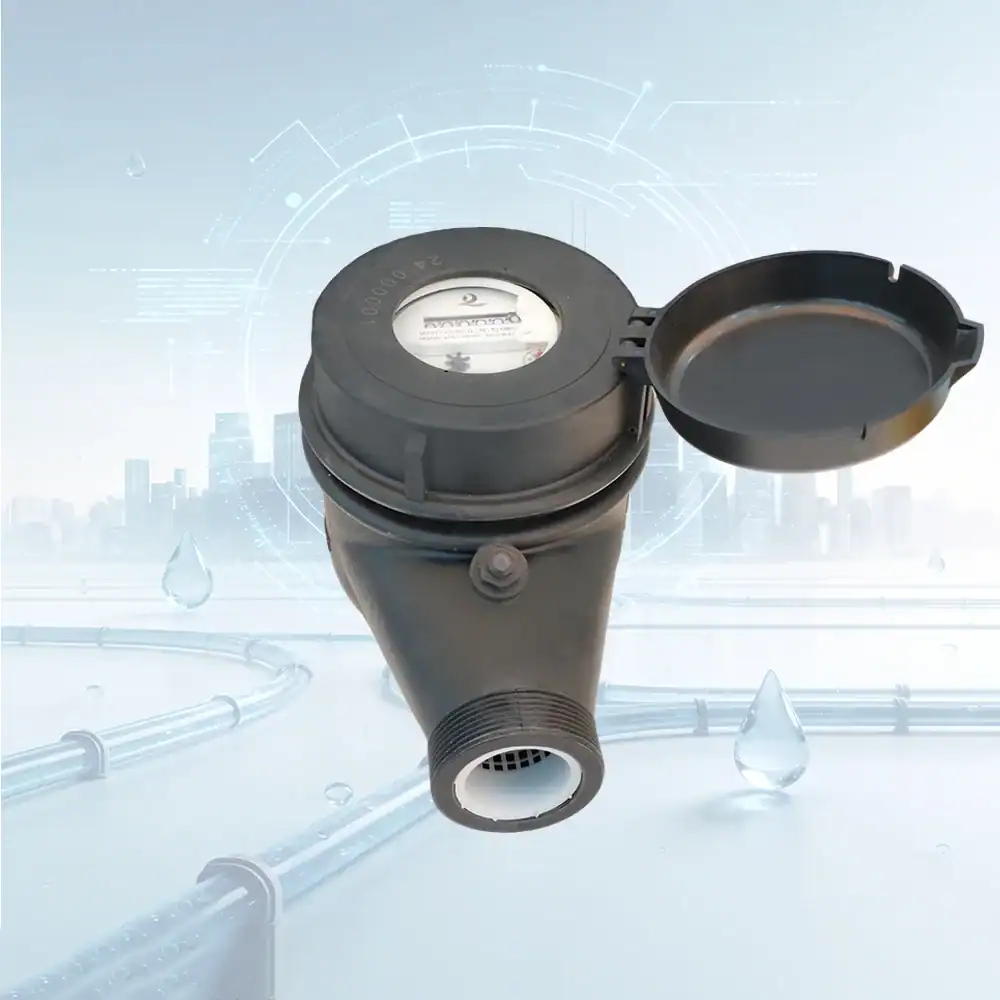

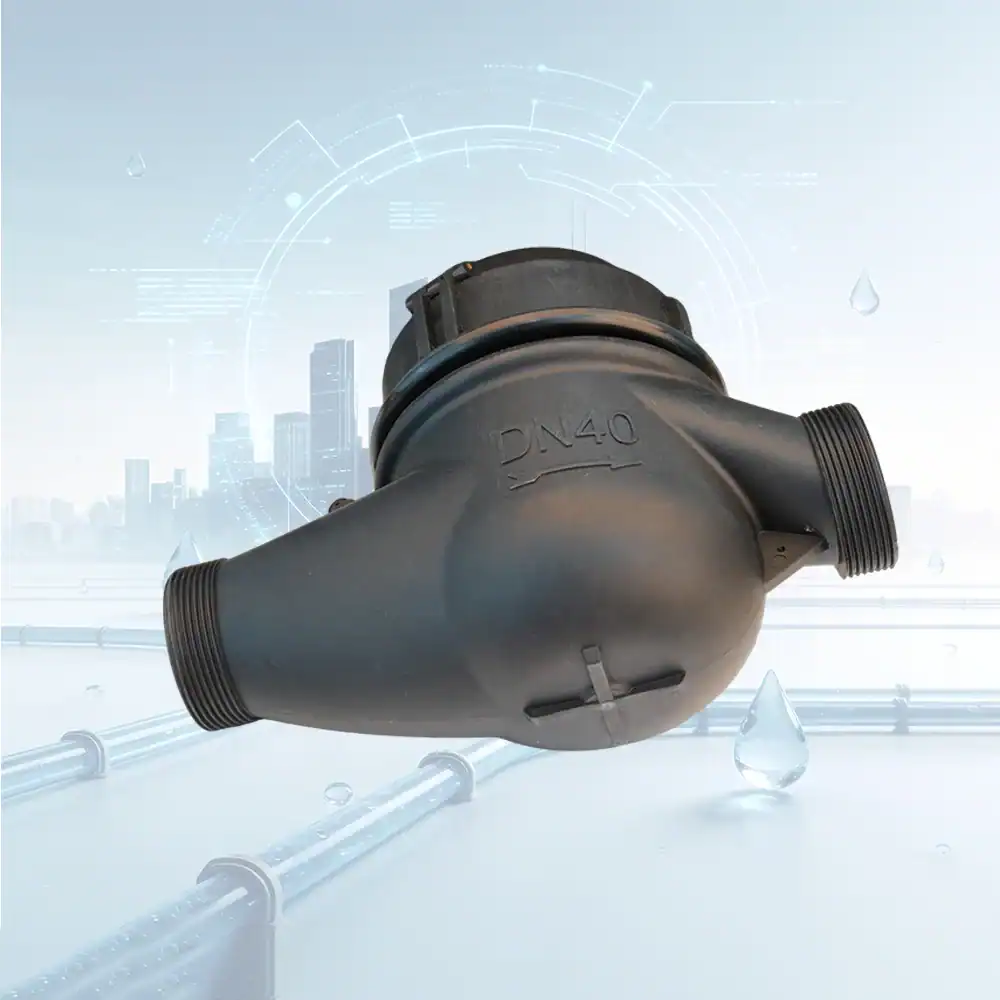

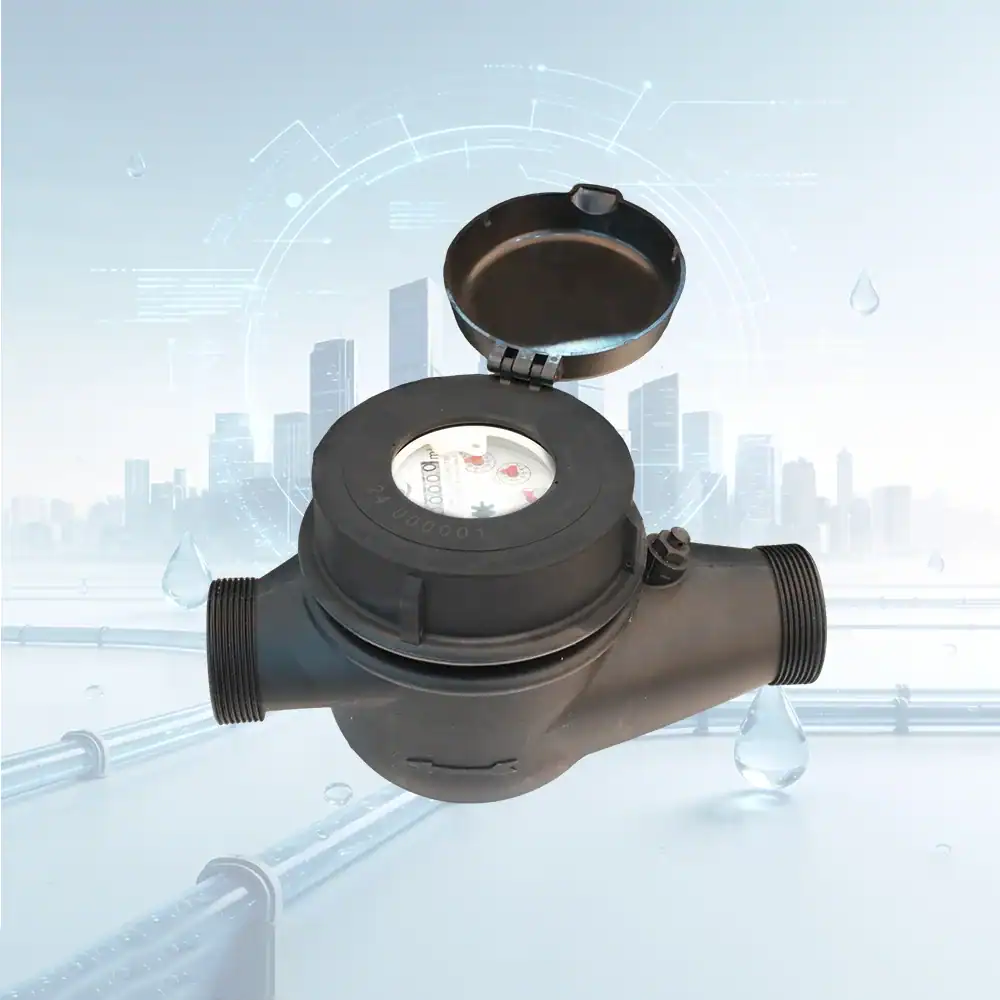

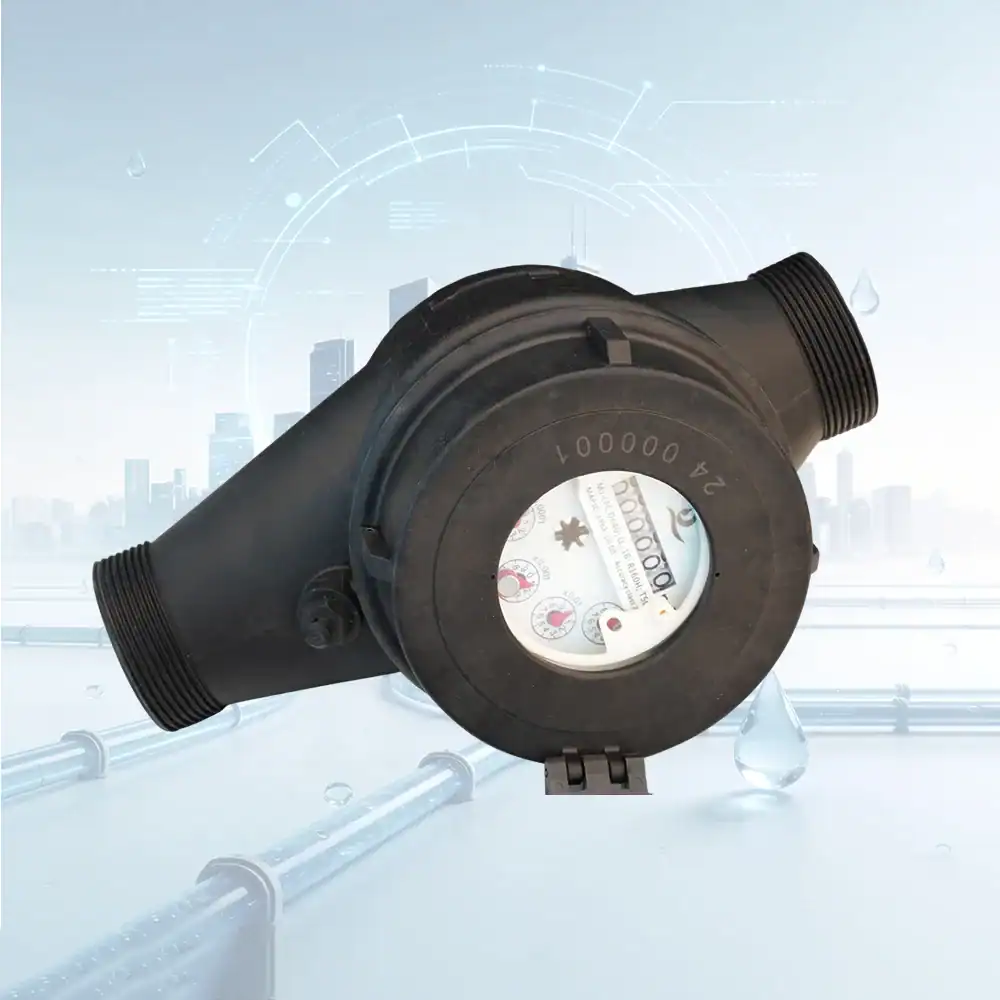

High Accuracy 1 1/2″ Multi-Jet Water Meter for Commercial Use
- High Precision:Â ISO 4064 compliant, R100 Class B accuracy measuring up to 16 mÂł/h continuous flow.
- IP68 Waterproof:Â Hermetically sealed wet dial guarantees crystal-clear readability even in fully submerged environments.
- Anti-Tamper Design:Â Integrated magnetic shielding effectively prevents external interference and secures your billing revenue.
- Smart AMR Ready:Â Features optional pulse output for seamless integration into modern remote automated reading networks.
- Heavy-Duty Build:Â Supports MAP16 high pressure and T50 temperatures with standard DN40 (G2B) threaded connections.
Â
Reliable Water Measurement Solution
The DN40 Multi-Jet Water Meter offers exceptional precision for measuring high volumes of water in commercial and industrial applications. Operating on a velocity-type measuring principle, it ensures consistent accuracy even under fluctuating flow conditions. Complying strictly with ISO 4064 standards, this meter guarantees long-term stability and reliability for your commercial water management infrastructure.
Robust Design for Extreme Environments
Built for uncompromising durability, this horizontal-installation water meter features an IP68 protection class, making it fully waterproof and perfectly suited for harsh or submersible environments. The hermetically sealed wet dial register prevents internal condensation, ensuring the dial remains clear and readable over its entire lifespan. With a massive maximum reading capacity of 999,999 mÂł, it is engineered for heavy-duty, long-term water tracking without the need for frequent maintenance.
Key Features & Advantages:
- High-Precision Accuracy: Operates at Class B (R100) accuracy standards, delivering highly precise tracking with a permanent flow rate of 16 mÂł/h and safely handling sudden flow overloads up to 20 mÂł/h.
- Anti-Magnetic Protection: Built with integrated magnetic shielding to prevent external tampering, ensuring absolute measurement integrity and protecting your revenue.
- Smart Upgrade Ready: Designed with an optional pulse output, allowing for seamless future integration into modern AMR (Automated Meter Reading) systems for efficient remote data collection and IoT networking.
- Versatile Durability: Rated to withstand both T30 and T50 temperature classes as well as high-pressure environments up to MAP16, utilizing standard G2B threaded connections for rapid installation.
Functional Parameters
| Meter Type | Multi Jet |
| Measuring Principle | Velocity Type |
| Dial Type | Wet Dial, Sealed Register |
| Installation Orientation | Horizontal |
| Protection Class | IP68 |
| Temperature Class | T30/T50 |
| Pressure Class | MAP16 |
| Accuracy Class | Class B (R100) |
| Standard Compliance | ISO 4064 |
| Anti-Magnetic Protection | Yes |
| Sealing Type | Hermetically Sealed Register |
| Optional Output | Pulse Output/AMR Ready |
Dimensional Parameters
| Nominal Diameter (DN) | DN40 (40 mm) |
| Length (L) | 245mm |
| Width (W) | 114 mm |
| Height (H) | 177 mm |
| Thread Type | BSP |
| Thread Size | G2B |
| Connection Type | Threaded |
Flow Parameters
| Q1 (Minimum Flow Rate) | 160 L/h |
| Q2 (Transitional Flow Rate) | 256 L/h |
| Q3 (Permanent Flow Rate) | 16 mÂł/h |
| Q4 (Overload Flow Rate) | 20 mÂł/h |
| R Value (Q3/Q1) | 100 |
| Pressure Loss at Q3 | ≤0.063 MPa |
| Maximum Reading | 999 999 mÂł |
| Minimum Reading | 0.00005 mÂł (0.05 L) |
