3 inch (80mm, 3″) Smart Electromagnetic Water Meter | OEM Supplier
- High Precision: R400 class (ISO 4064) ensures exact billing and leak detection.
- Maximum Capacity: Handles 63m³/h continuous flow with ultra-low pressure loss (≤0.063MPa).
- Total Durability: IP68 waterproof rating guarantees safe, continuous submerged operation.
- Smart System: AMR-ready with a bright LED display for easy remote monitoring.
- Easy Install: DN80 flange allows U0/D0 positioning without needing straight pipes.

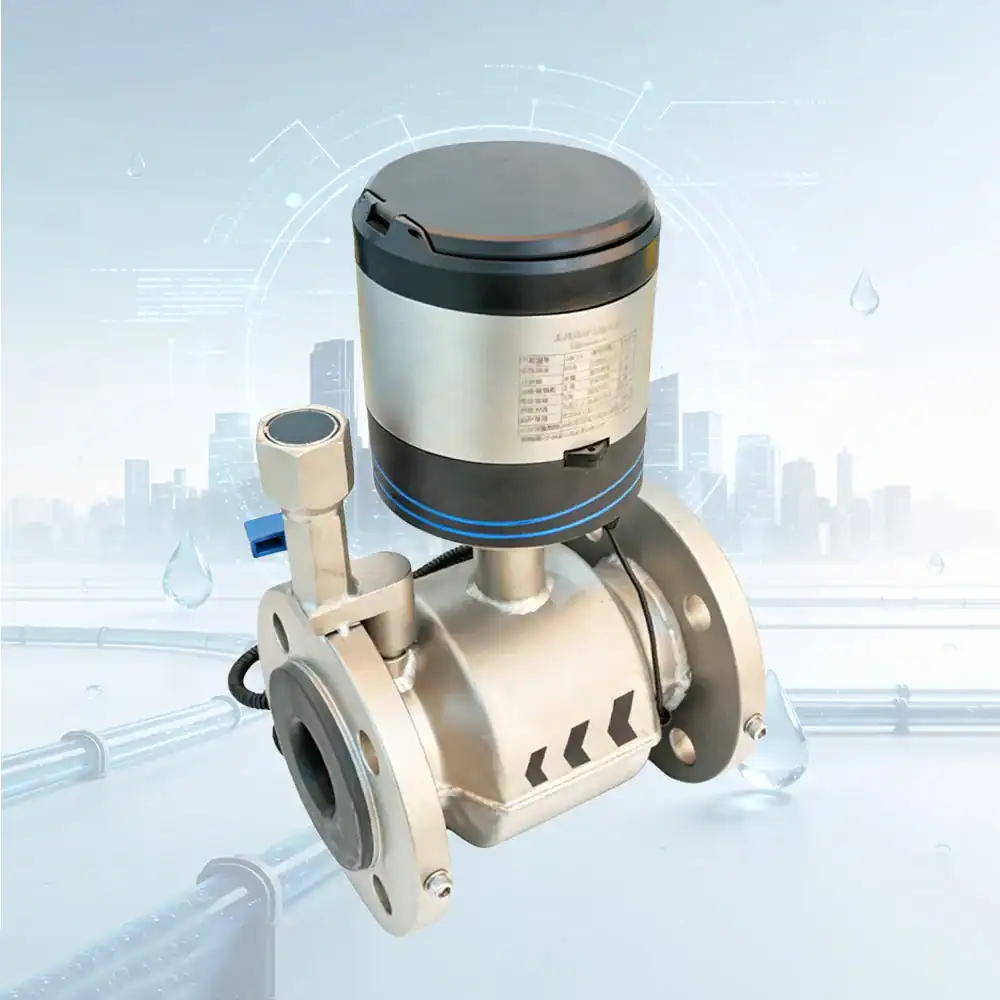

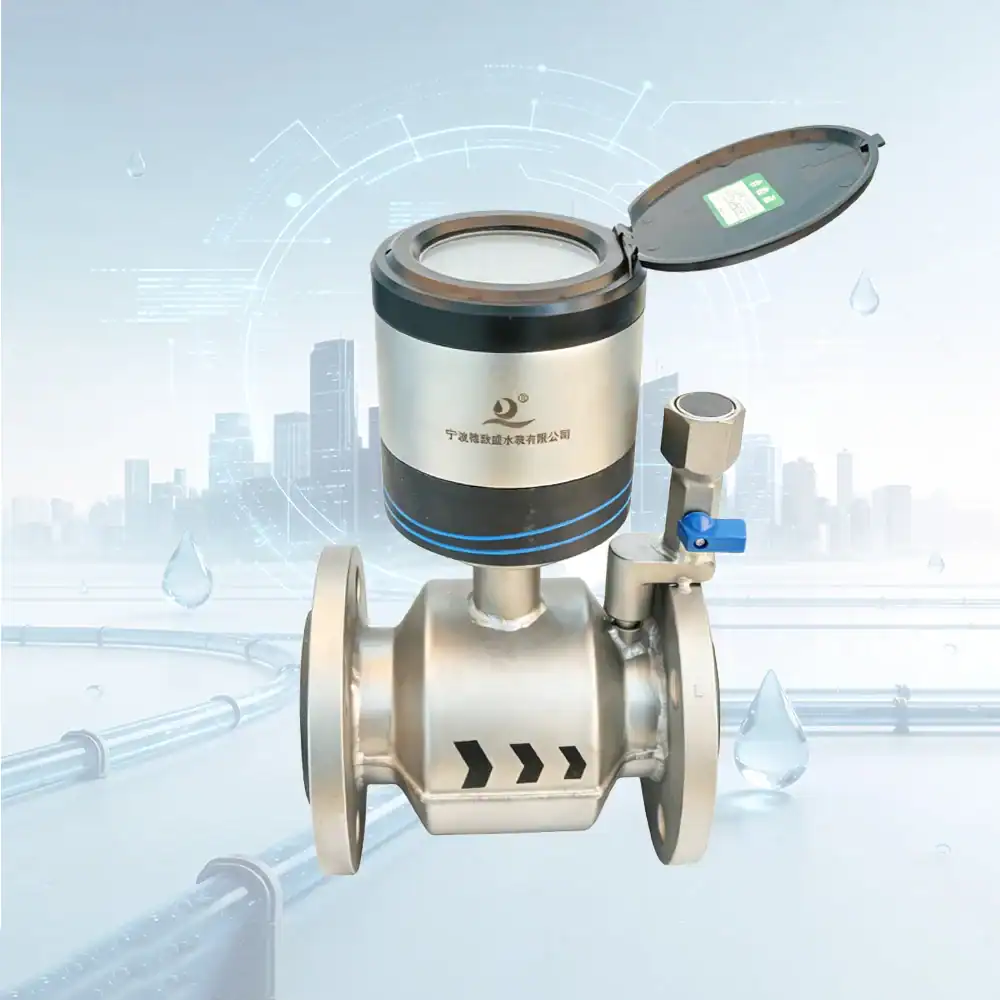

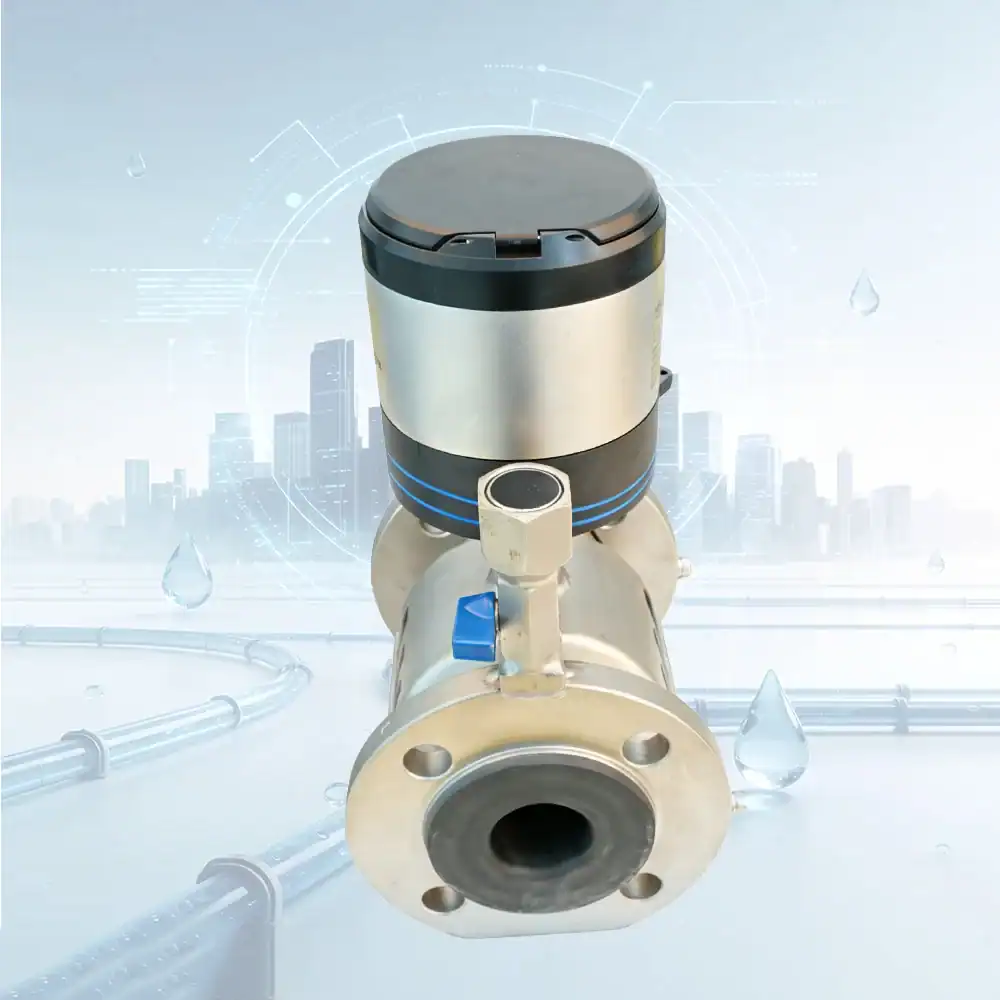

Advanced High-Capacity Electromagnetic Measurement
Engineered for demanding high-volume commercial, industrial, and municipal applications, this robust DN80 (80mm) electromagnetic water meter provides unmatched precision and reliability. Featuring a superior R400 accuracy class compliant with stringent ISO 4064 standards, it guarantees exact fluid measurement across a vast dynamic range. The device effortlessly processes a massive permanent flow rate of 63 m³/h while remaining incredibly sensitive enough to detect minute leakages down to a minimum flow of 157.5 L/h. Every drop is rigorously accounted for, supported by an ultra-precise minimum reading of 0.1L.
Resilient Construction & Spatial Flexibility
Constructed to endure harsh environmental conditions, the meter features a fully waterproof IP68 protection class, ensuring safe and continuous operation even in fully submerged settings. Its heavy-duty flange connection and robust pressure tolerance (MAP10/16) guarantee a leak-proof and secure integration into main water supply lines. Thanks to its advanced hydrodynamic design, it allows for highly flexible installation in any location (U0/D0). This completely eliminates the need for straight pipe sections upstream or downstream, thereby saving valuable spatial resources and significantly reducing infrastructure modification costs.
Key Features & Advantages:
- Smart AMR Connectivity: The built-in AMR Ready output seamlessly integrates with automated meter reading systems, streamlining remote data collection and intelligent water network management.

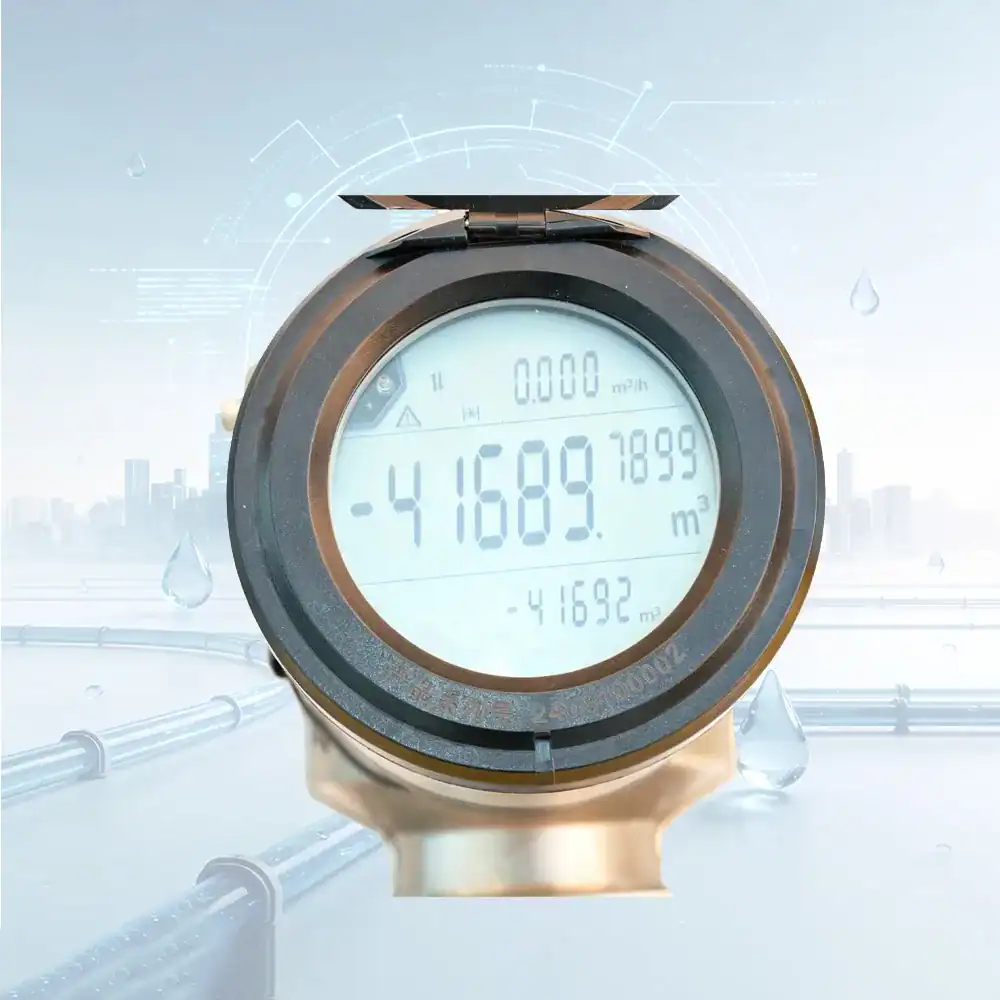

- Clear LED Interface: The high-visibility LED dial ensures rapid and accurate on-site data retrieval in any lighting environment, securely recording a maximum lifetime volume up to 999 999.9999 m³.
- Optimal Hydraulic Efficiency: Expertly engineered to maintain an ultra-low pressure loss of ≤0.063 MPa, even during peak overload flow rates of 78.75 m³/h, maximizing overall system efficiency and minimizing energy costs.
Functional Parameters
| Meter Type | Electromagnetic water meter |
| Dial Type | LED |
| Installation Orientation | Any location（U0/D0） |
| Protection Class | IP68 |
| Temperature Class | T30/T50 |
| Pressure Class | MAP10/16 |
| Accuracy Class | R400 |
| Standard Compliance | ISO 4064 |
| Optional Output | AMR Ready |
Dimensional Parameters
| Nominal Diameter (DN) | DN80 (80mm) |
| Length (L) | 200mm |
| Width (W) | 200 mm |
| Height (H) | 380 mm |
| Connection Type | Flange connection |
Flow Parameters
| Q1 (Minimum Flow Rate) | 157.5 L/h |
| Q2 (Transitional Flow Rate) | 252 L/h |
| Q3 (Permanent Flow Rate) | 63 m³/h |
| Q4 (Overload Flow Rate) | 78.75 m³/h |
| R Value (Q3/Q1) | 400 |
| Pressure Loss at Q3 | ≤0.063 MPa |
| Maximum Reading | 999 999.9999 m³ |
| Minimum Reading | 0.0001 m³ (0.1L) |
