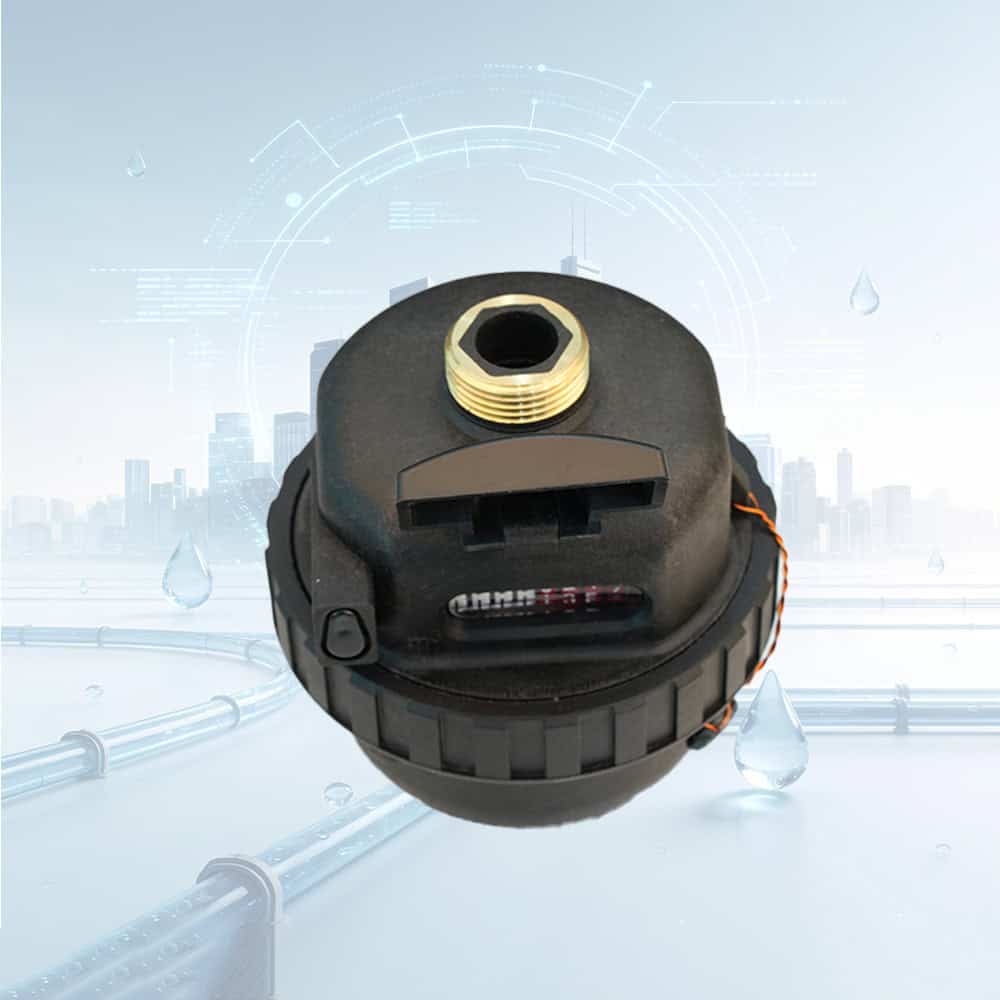

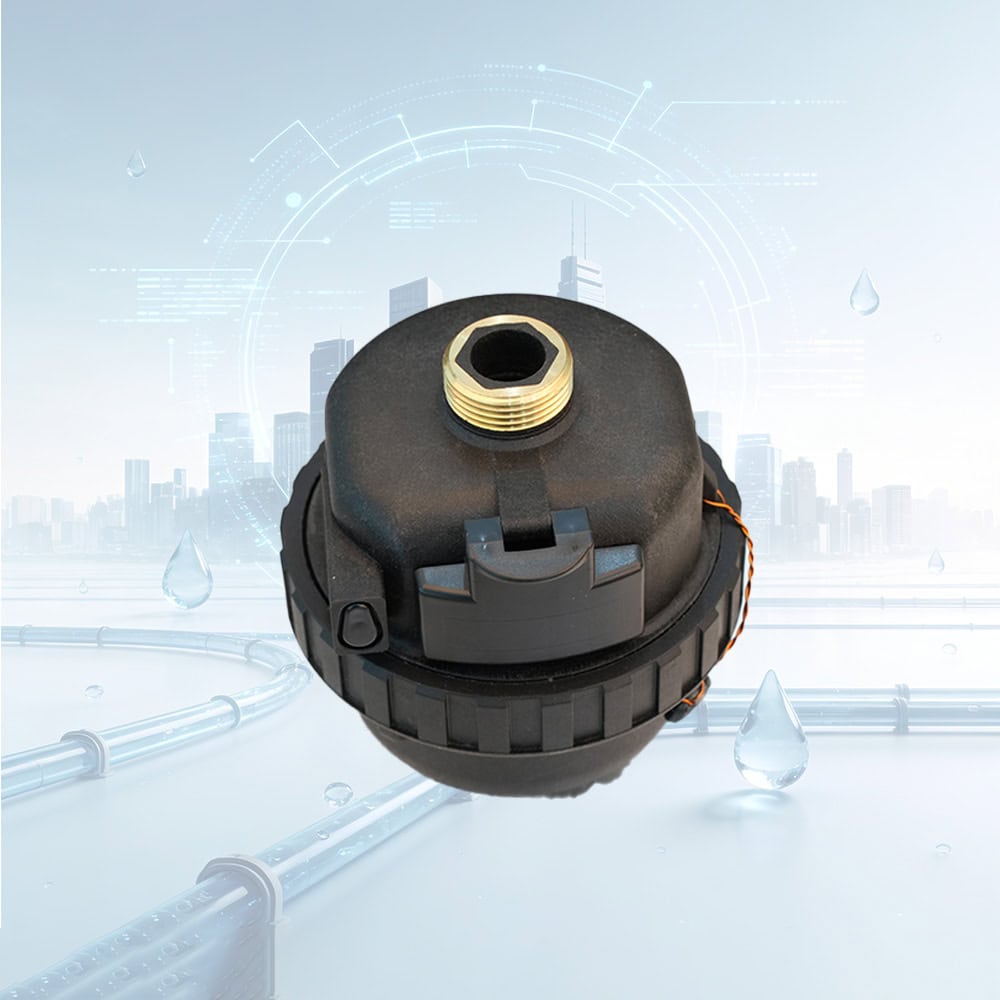

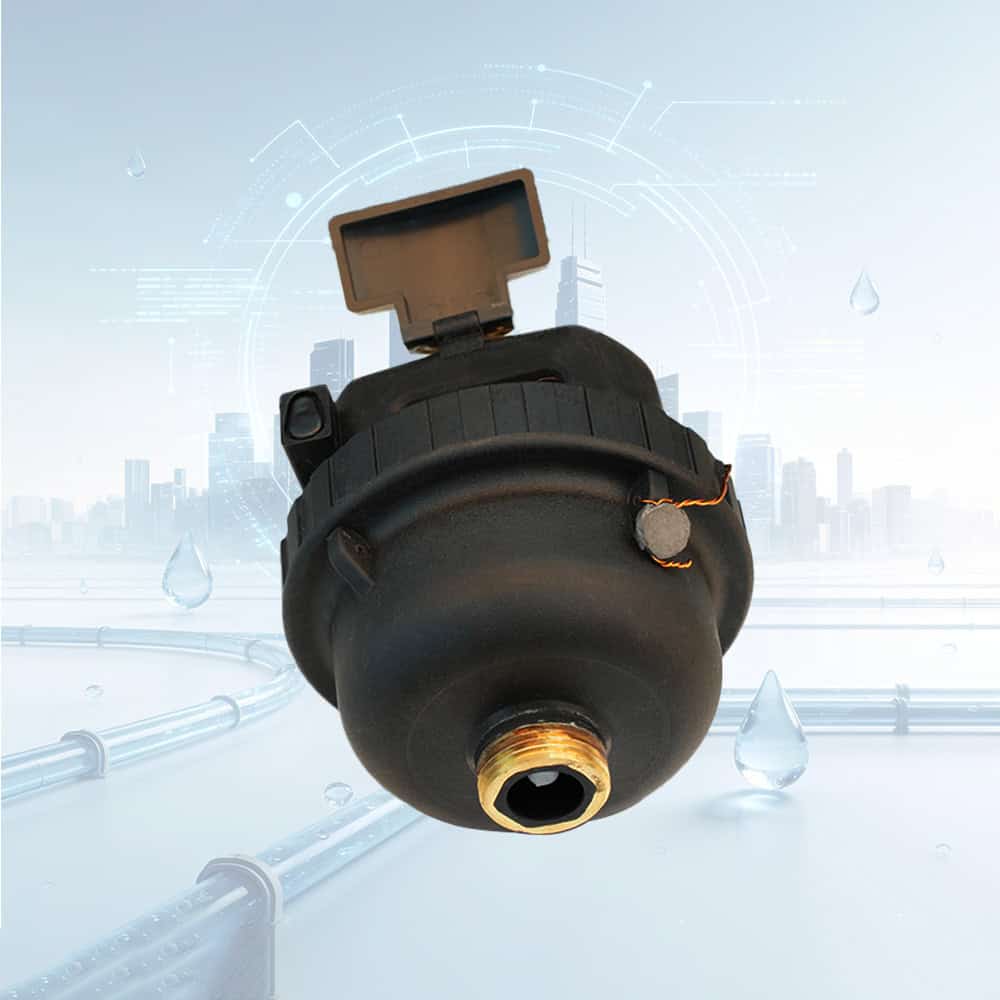

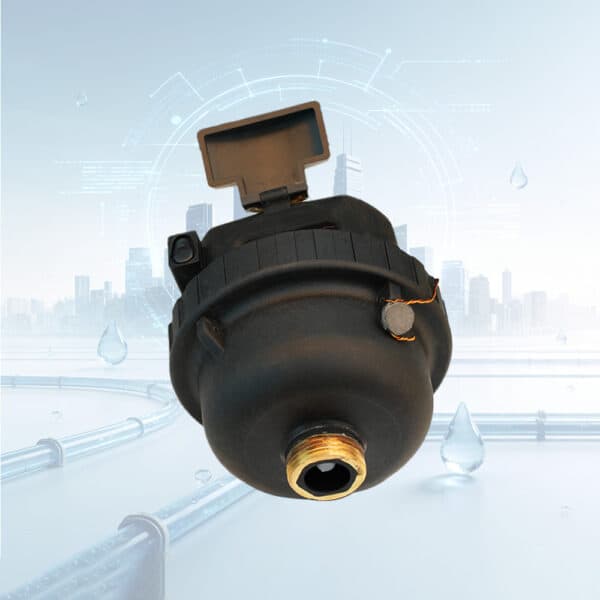

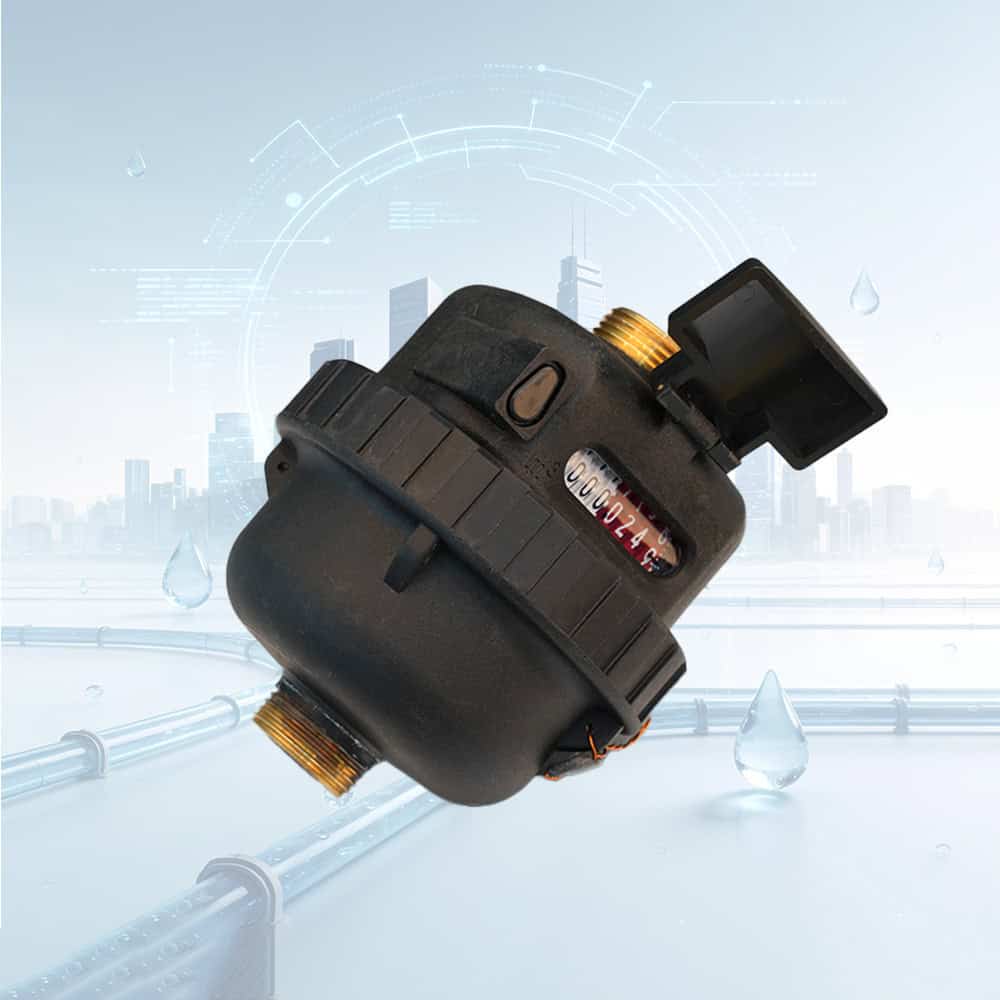

Vertical 15mm Smart Volumetric Water Meter

High-Precision Volumetric Water Measurement

Engineered for exceptional accuracy, this DN15 volumetric water meter utilizes advanced piston displacement technology to ensure reliable water management and billing. Specifically optimized for vertical installation, it delivers outstanding sensitivity to capture even the smallest leaks with an ultra-low starting flow of just 2.65 L/h. By maintaining an impressive R315 accuracy class, this device guarantees precise and stable measurement across a wide flow range up to a permanent flow rate of 2.5 m³/h, effectively maximizing revenue protection for utility providers and residential complexes.

Robust Design for Harsh Environments

Built to deliver long-term performance in the toughest conditions, this meter features a hermetically sealed, liquid-filled register that prevents internal condensation and guarantees a clear, unobstructed reading up to 9999.999 m³. With a rugged IP68 protection class, the meter is completely waterproof and suitable for continuous submersion. The robust construction fully complies with rigorous ISO 4064 standards and operates safely under maximum working pressures up to MAP16, ensuring peace of mind for both standard T30 and elevated T50 temperature conditions.

Key Features & Advantages

• Unmatched Accuracy: Achieves an exceptional R315 accuracy class combined with a highly sensitive 2.65 L/h starting flow, ensuring precise tracking of every drop to prevent water loss.
• Superior Durability: Features a fully waterproof IP68 rating and a liquid-filled register for maximum longevity and clear visibility in damp, humid, or flooded environments.
• Tamper-Proof Security: Equipped with reliable anti-magnetic protection to prevent fraudulent external interference, safeguarding your measurement data and utility revenue.
• Seamless Installation: Compact 115mm length and DN15 nominal diameter with standard G3/4B BSP threaded connections, allowing for quick and hassle-free vertical setup in confined spaces.
