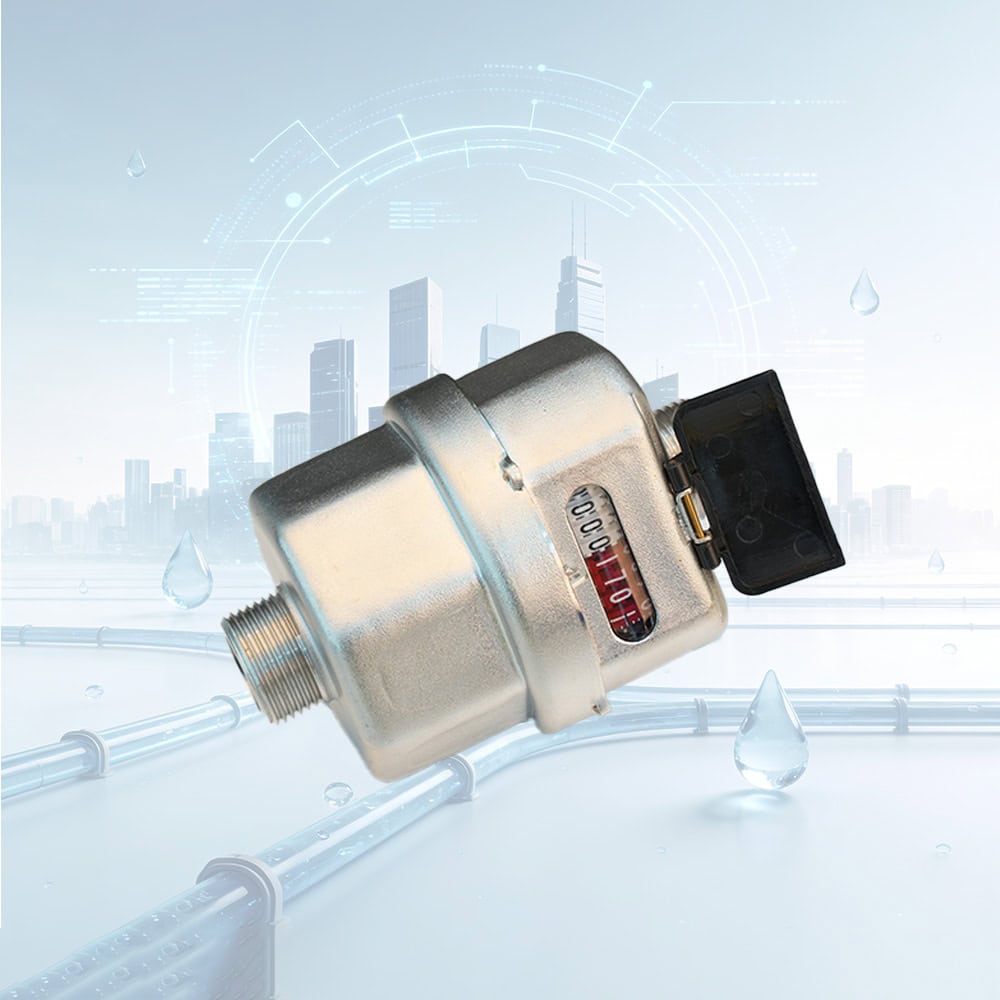

Stainless Steel DN15 Volumetric Water Meter

Precision Volumetric Measurement

Engineered for unparalleled accuracy, this volumetric water meter utilizes advanced piston displacement technology to measure water flow with absolute certainty. Designed to achieve an exceptional R315 accuracy class, it meticulously records consumption across a wide measurement range. Whether deployed in residential complexes or commercial pipelines, this meter ensures that every single drop is accurately accounted for, maximizing revenue and minimizing unbilled water losses.

Rugged Design for Extreme Environments

Built to withstand the most demanding operational conditions, this meter boasts a premium IP68 protection class. The hermetically sealed, liquid-filled register guarantees clear, fog-free readability and prevents internal condensation, even when permanently submerged in water or high-humidity environments. Fully compliant with rigorous ISO 4064 standards, the durable construction supports continuous, stable operation at a maximum working pressure of MAP16, ensuring long-term reliability and minimal maintenance requirements.

Key Features & Advantages:

• Ultra-Low Starting Flow: Captures even the slightest water movement with a remarkable starting flow of just 2.65 L/h and a minimum flow rate (Q1) of 7.94 L/h, effectively detecting minor pipeline leaks.
• Tamper-Proof Reliability: Equipped with robust anti-magnetic protection, this meter prevents external interference and data manipulation, ensuring the integrity of your readings up to a maximum display of 9999.999 m³.
• Optimized Vertical Installation: The compact DN15 (15mm) size, measuring only 115mm in length, combined with standard BSP G3/4B threads, provides effortless integration into tight, vertical pipeline configurations.
• Superior Flow Efficiency: Maintains excellent hydraulic performance with a permanent flow rate (Q3) of 2.5 m³/h and an incredibly low pressure loss of ≤0.063 MPa, operating safely in environments up to the T50 temperature class.
