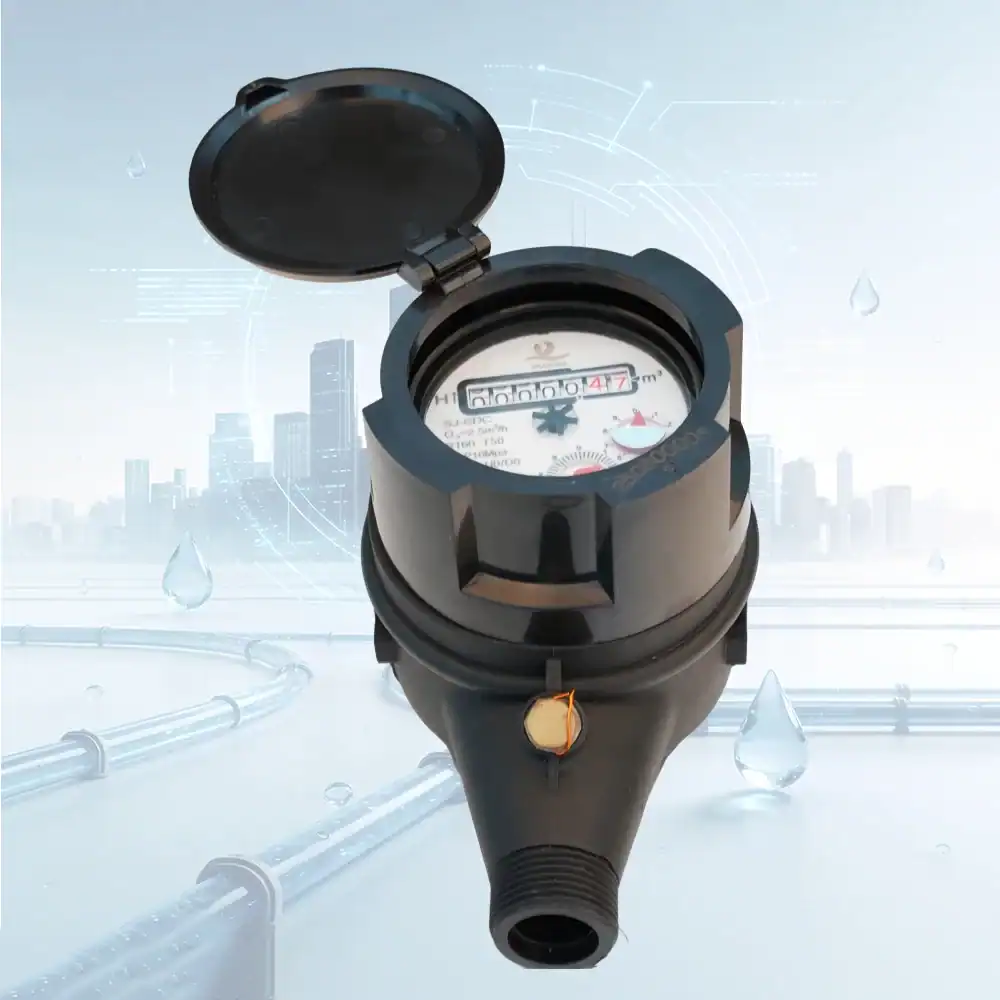

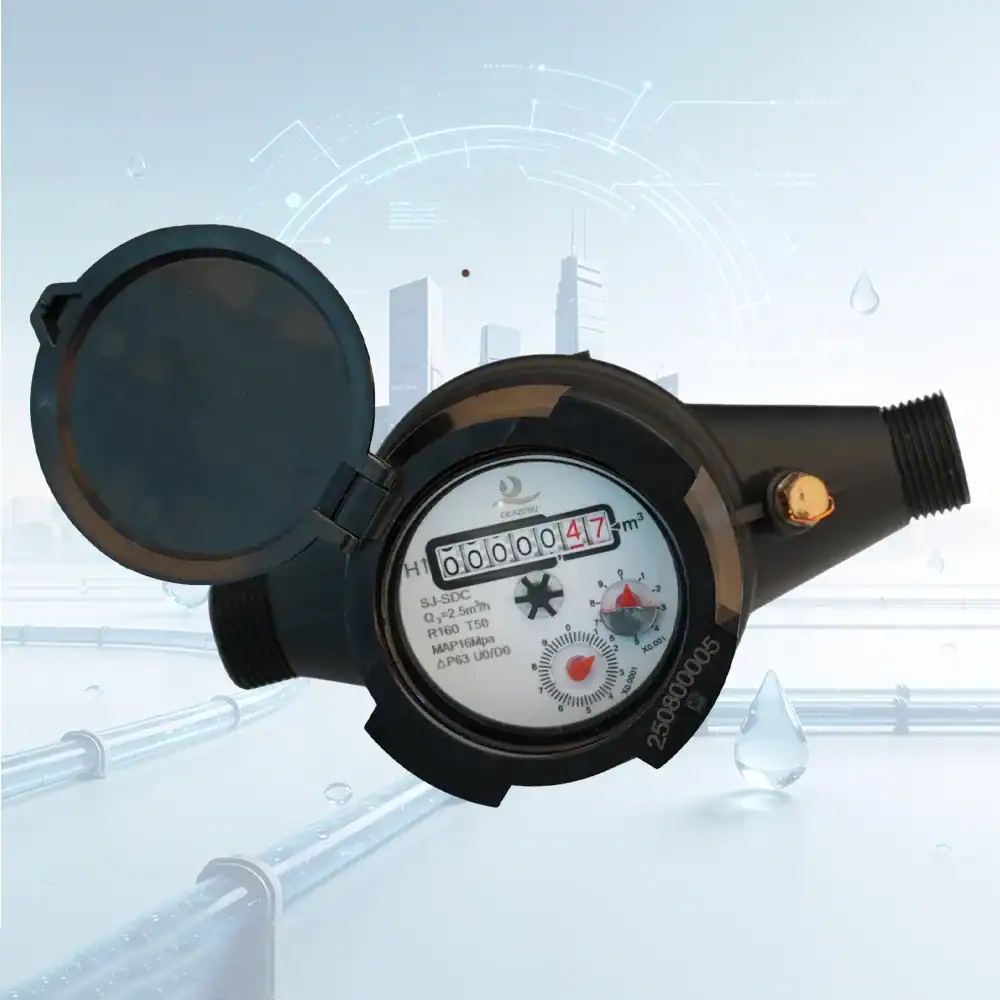

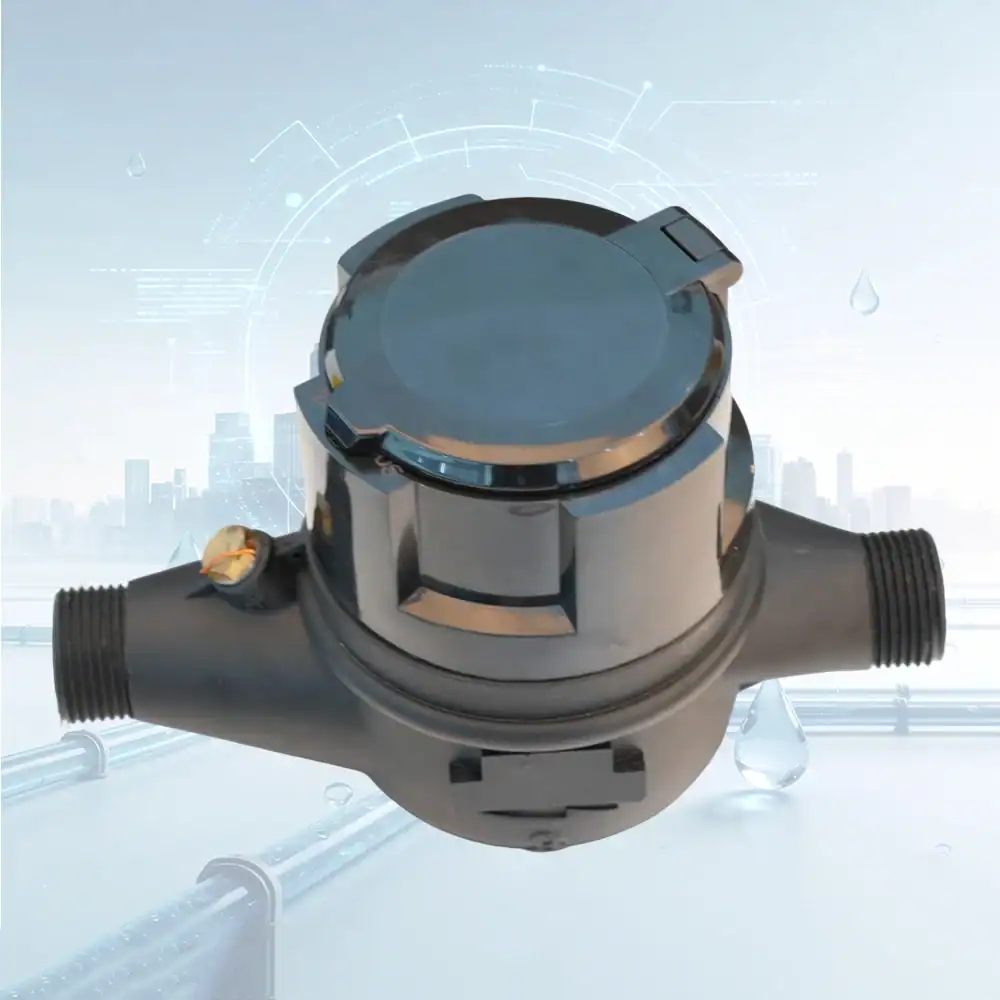

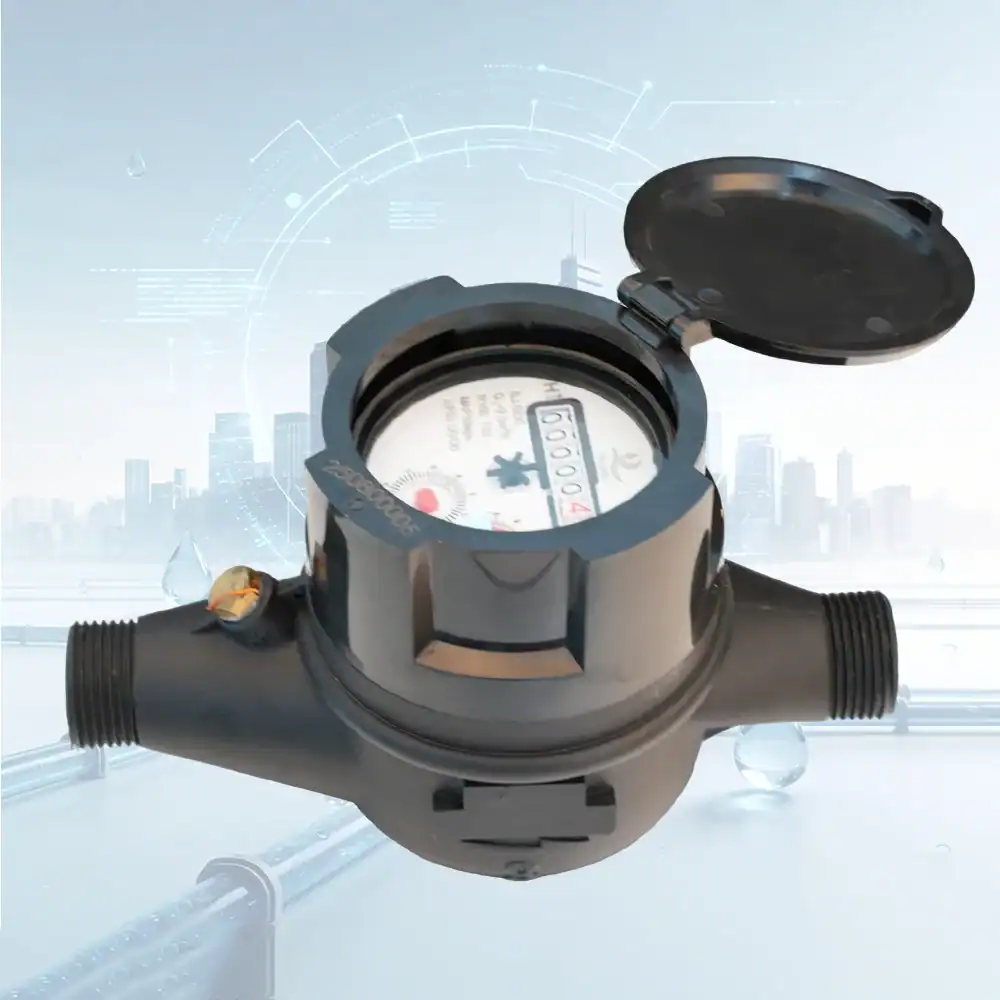

DN15 Smart Multi Jet Dry Dial Residential Water Meter

High-Precision Residential Water Measurement

The DN15 Multi-Jet Dry Dial Water Meter delivers exceptional accuracy for residential and light commercial water monitoring. Engineered with a frictionless magnetic drive transmission and a highly sensitive velocity-type measuring principle, it reliably captures even the slightest water usage. Fully compliant with rigorous ISO 4064 standards, this meter features an incredibly low starting flow of just 5.2 L/h, ensuring that every drop is meticulously accounted for to reduce non-revenue water loss.

Waterproof, Frost-Resistant, and Built to Last

Designed for challenging and damp installation environments, this meter boasts a robust IP68 protection class, making it fully submersible and highly resistant to extreme moisture. The hermetically sealed dry register completely isolates the dial from the water stream, effectively eliminating internal condensation and frost. This design guarantees crystal-clear readability over its entire operational lifespan. Built to withstand demanding conditions, it safely handles MAP16 high-pressure pipelines and operating temperatures up to T50.

Key Features & Advantages:

• Class B (R160) Accuracy: Delivers superior measurement precision, easily processing a permanent flow rate of 2.5 m³/h while maintaining an ultra-low pressure loss of ≤0.063 MPa.
• Advanced Anti-Magnetic Security: Integrated heavy-duty magnetic shielding effectively blocks external tampering, protecting your utility revenue and securing measurement data integrity.
• Pulse Output & AMR Ready: Designed for the future of smart water management, this unit features a pulse output that easily integrates with Automated Meter Reading (AMR) systems for remote IoT data collection.
• Standardized Easy Installation: Optimized for horizontal orientation using standard G3/4B threaded connections, ensuring a quick, secure, and leak-proof setup.
