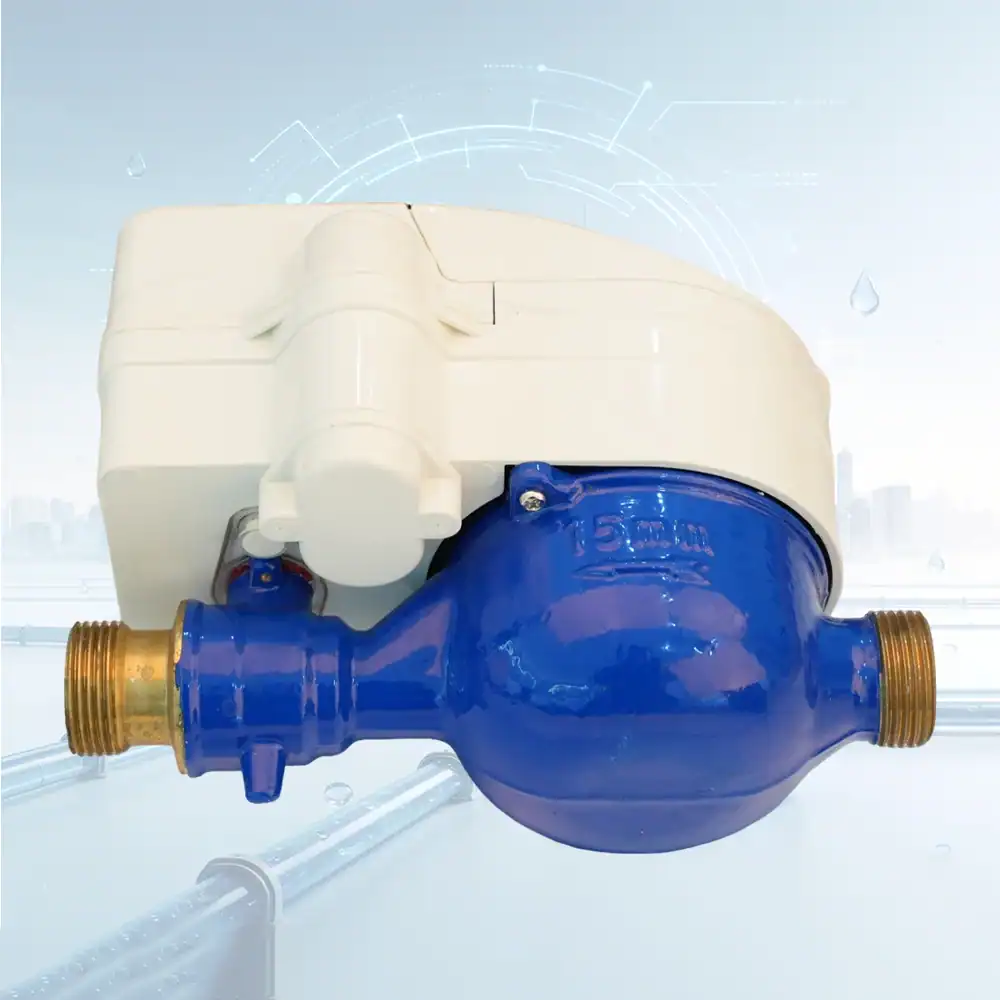

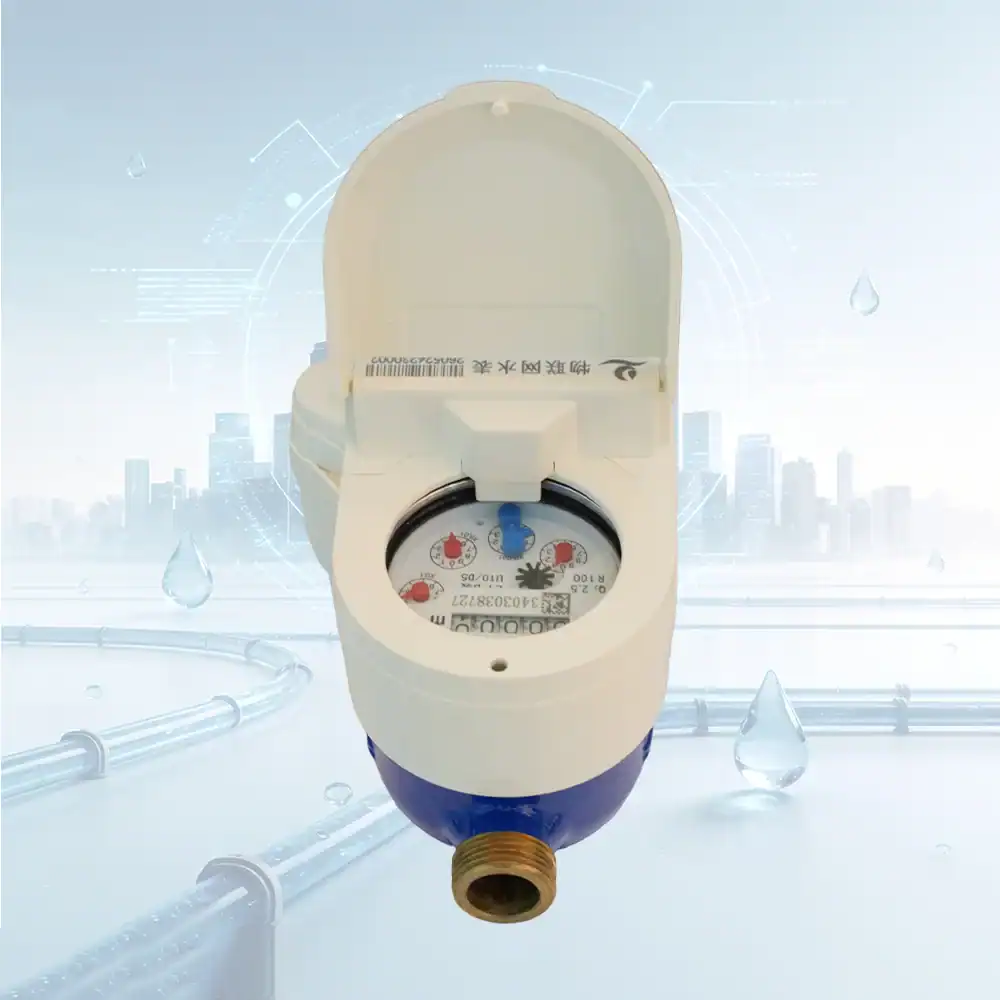

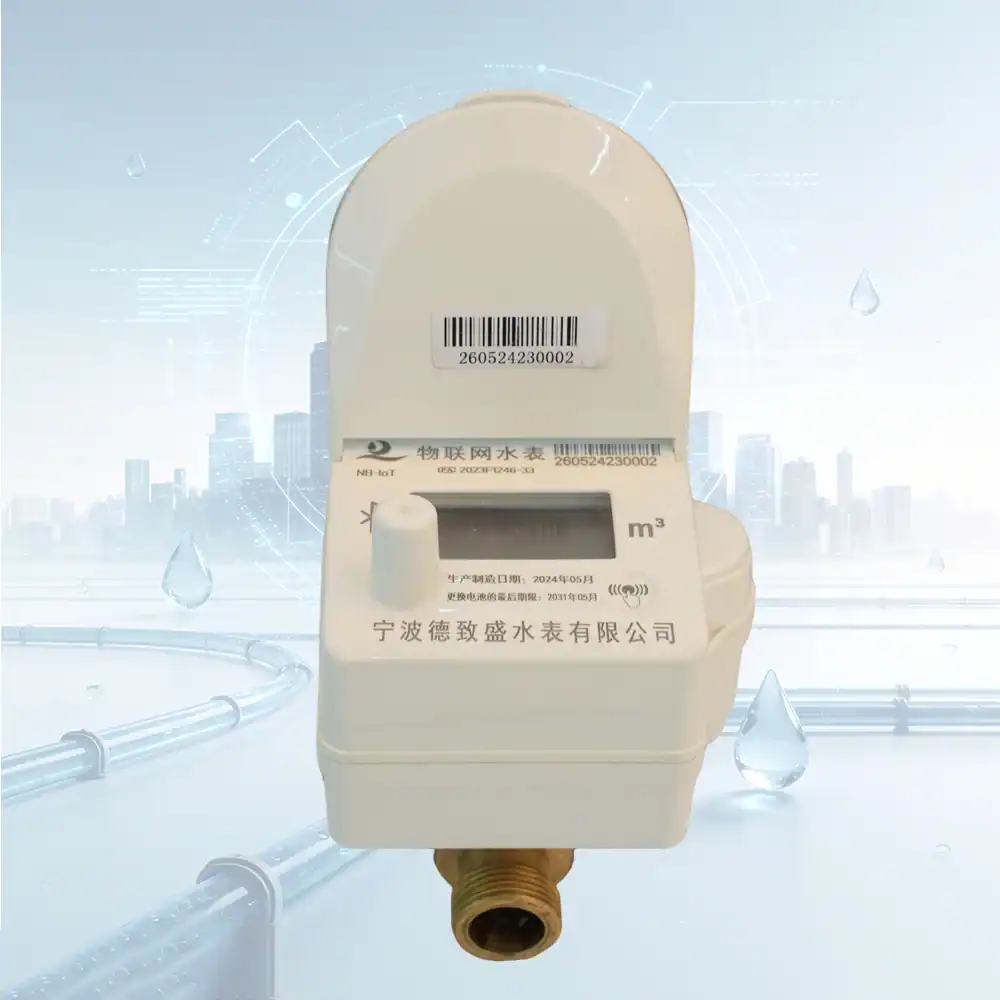

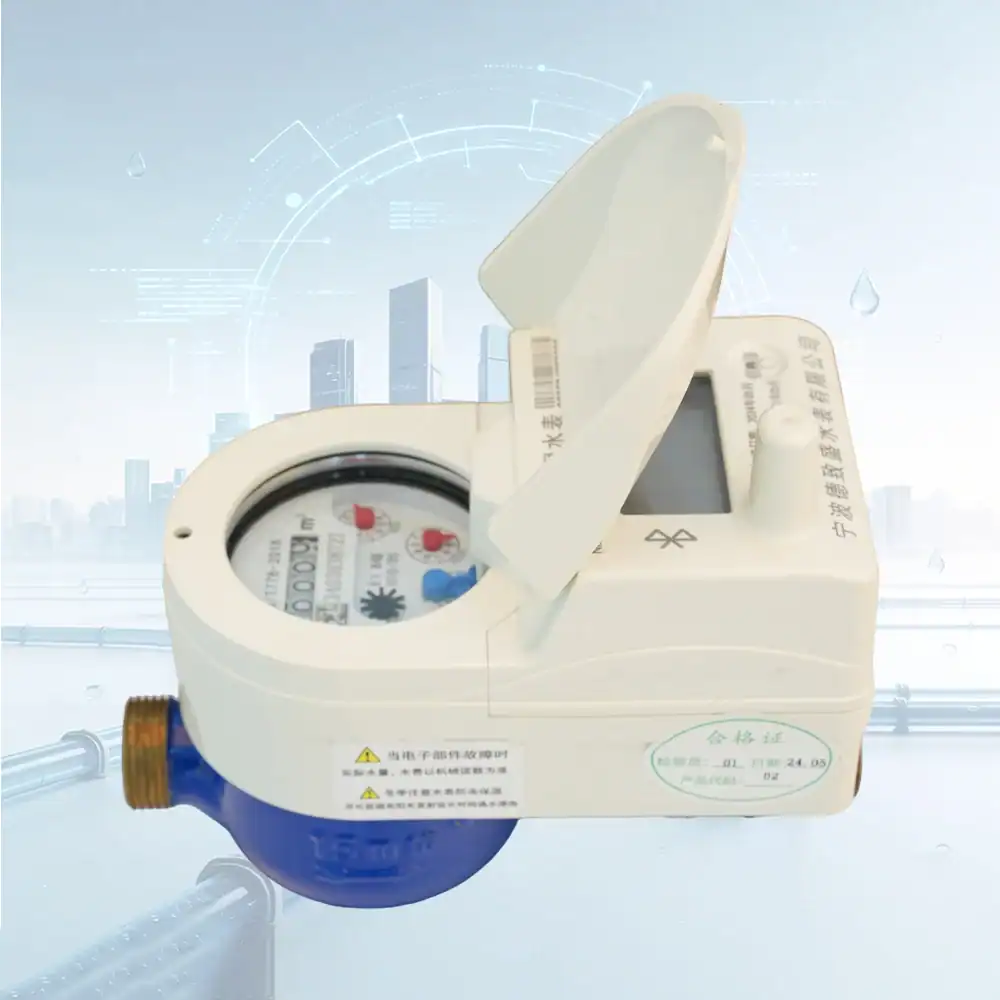

IC Card Prepayment Water Meter with Secure Billing System

High-Precision Multi-Jet Water Management

Designed for demanding residential and commercial environments, this multi-jet water meter integrates an innovative valve control system. Operating on a velocity-type measuring principle, it utilizes a wet dial configuration with a fully sealed register to guarantee clear, reliable readings over years of operation. Engineered specifically for a horizontal installation orientation, this DN15 unit provides exceptional flow tracking, making it an essential component for modern utility billing and accurate consumption monitoring.

Robust Durability and ISO Compliance

This meter is built to endure the toughest conditions, boasting an IP68 protection class that ensures complete resistance to dust ingress and prolonged water submersion. It is fully compliant with the rigorous ISO 4064 standard and safely operates under a robust MAP16 pressure class. Security is a priority; the hermetically sealed register and comprehensive anti-magnetic protection safeguard the integrity of the data, completely neutralizing external tampering attempts and maintaining mechanical precision across a T30/T50 temperature class.

Key Features & Advantages:

• Exceptional Measurement Accuracy: Rated at an impressive Class B (R160) accuracy, it features an ultra-sensitive starting flow of just 5.2 L/h, ensuring even the smallest drips and leaks are accurately recorded.
• Optimized Flow Dynamics: Delivers reliable performance with a strong permanent flow rate (Q3) of 2.5 m³/h and an overload capacity (Q4) of 3.125 m³/h, all while maintaining an incredibly low pressure loss of ≤0.063 MPa.
• Future-Proof Smart Integration: Built for modern networking, the device includes an optional Pulse Output/AMR Ready configuration, allowing for immediate or future integration into Automated Meter Reading and advanced IoT smart grid systems.
