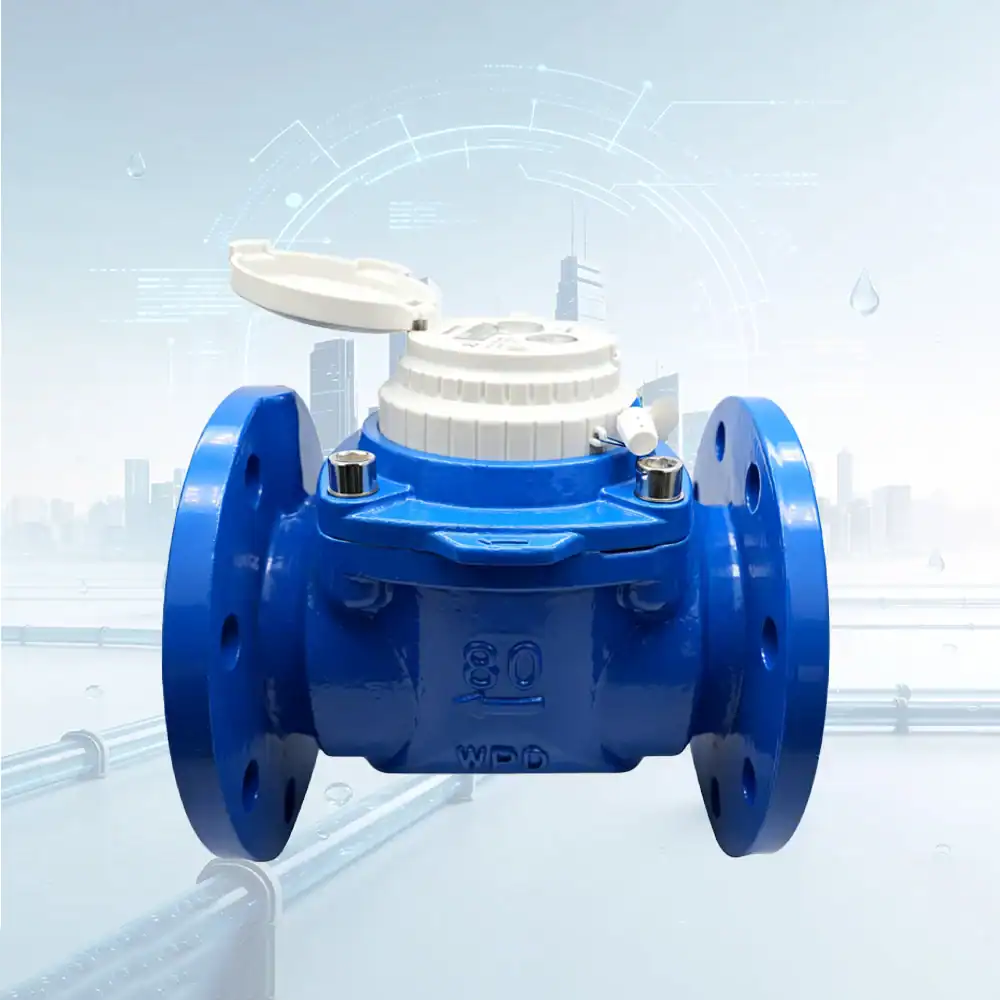

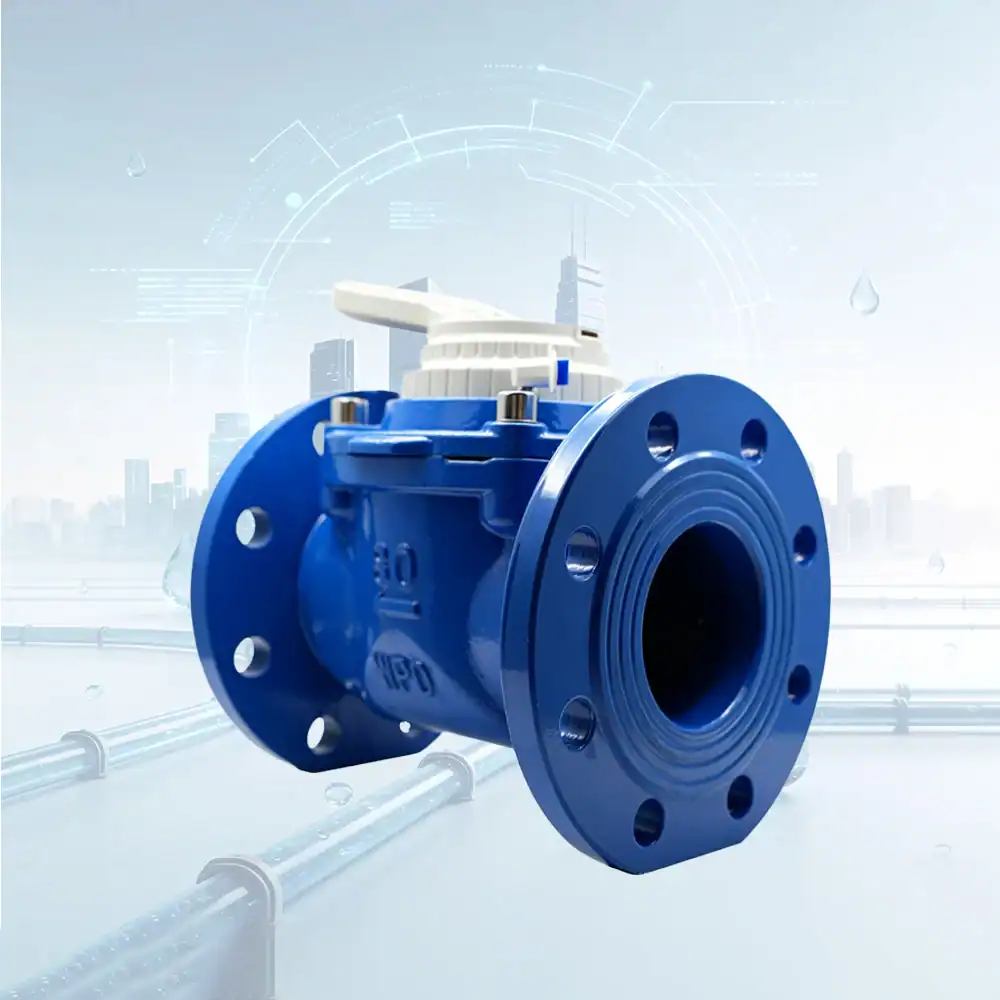

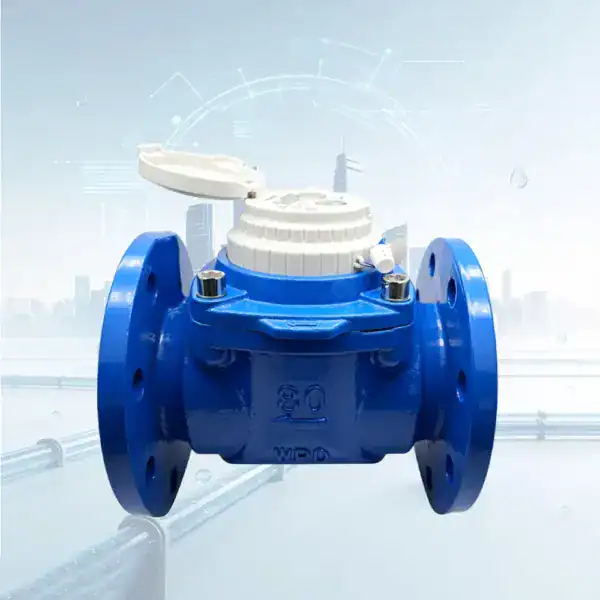

50mm DN50 Woltman Dry Dial Water Meter
- Accurate Billing: R250 precision, ISO 4064 compliant.
- Dry Dial Design: Sealed register stays clear and reliable.
- IP68 Protection: Built for wet pits and harsh conditions.
- High-Flow Metering: Supports 40 m³/h continuous flow, low loss ≤0.063 MPa.
- AMR Ready Option: Easy upgrade to remote reading.
Â
Bulk Water Measurement You Can Trust
Designed for stable performance in distribution mains and high-demand facilities, this DN50 Woltman water meter delivers dependable bulk metering with R250 accuracy and full ISO 4064 compliance. Its metering design supports consistent readings across changing demand patterns, making it a strong choice for utility billing, sub-metering, and industrial water management. For high-volume lines, it maintains measurement confidence while keeping system operation smooth and predictable.

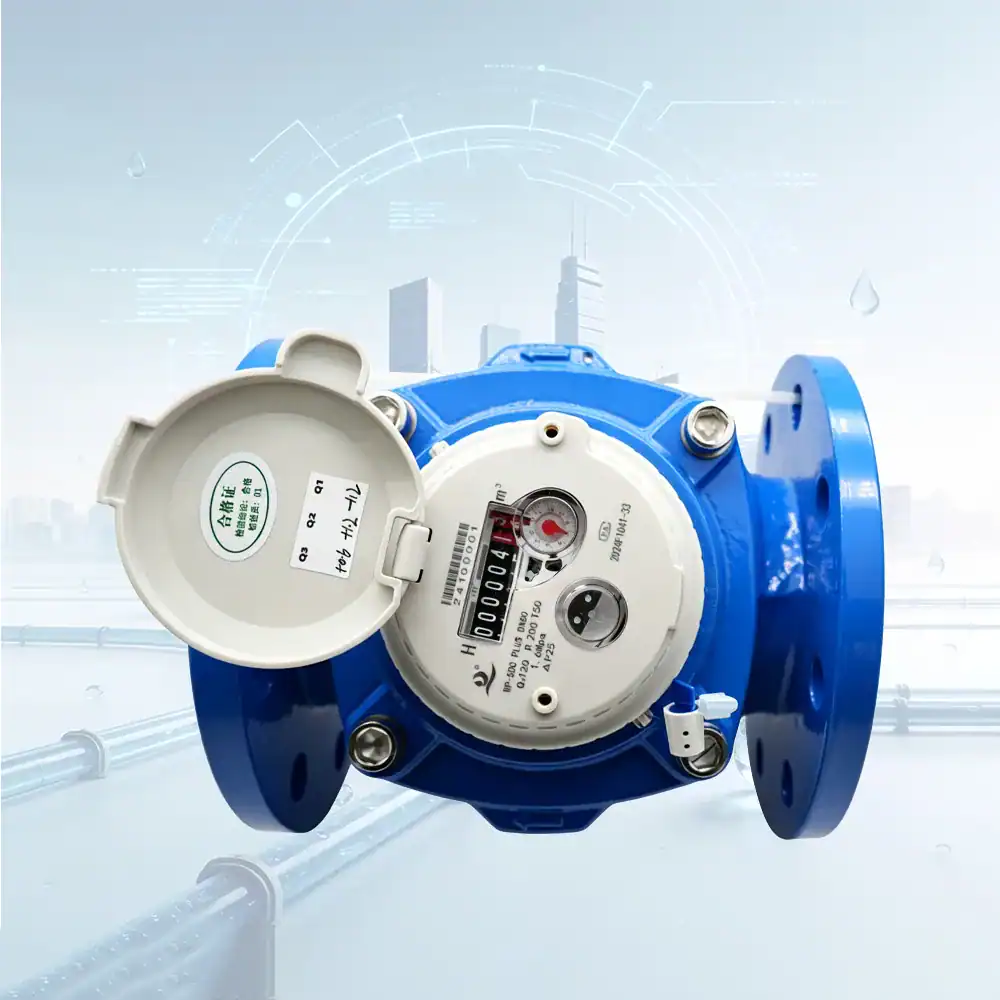

Dry Dial Protection for Harsh Sites
The dry-type dial isolates the register from the measured water, helping protect readability and long-term counting stability in challenging environments. Built for field reliability, the housing features IP68 protection for wet chambers and installations where water exposure is unavoidable. A secure flange connection simplifies integration into standard pipelines, while the specified installation orientation U10/D5 supports accurate operation when installed to recommended upstream/downstream conditions. The meter also supports an optional AMR Ready output, enabling a practical upgrade path toward remote data collection without replacing the core meter.
Key Features & Advantages:
- High-Flow Capability: Built for bulk lines with strong continuous performance up to 40 mÂł/h and stable overload handling for peak demand.
- Low Hydraulic Impact: Engineered to minimize energy waste with pressure loss ≤0.063 MPa, helping protect network efficiency.
- Smart-Ready Expansion: Optional AMR Ready output supports faster reading, better data visibility, and easier system modernization.
Functional Parameters
| Meter Type | Woltman Water Meters |
| Dial Type | Dry type |
| Installation Orientation | U10/D5 |
| Protection Class | IP68 |
| Temperature Class | T30/T50 |
| Pressure Class | MAP16 |
| Accuracy Class | R250 |
| Standard Compliance | ISO 4064 |
| Optional Output | AMR Ready |
Dimensional Parameters
| Nominal Diameter (DN) | DN50 (50mm) |
| Length (L) | 280/200mm |
| Width (W) | 165mm |
| Height (H) | 246 mm |
| Connection Type | Flange connection |
Flow Parameters
| Q1 (Minimum Flow Rate) | 252.0 L/h |
| Q2 (Transitional Flow Rate) | 403.2 L/h |
| Q3 (Permanent Flow Rate) | 40 mÂł/h |
| Q4 (Overload Flow Rate) | 50 mÂł/h |
| R Value (Q3/Q1) | 250 |
| Pressure Loss at Q3 | ≤0.063 MPa |
| Maximum Reading | 999 999.999 mÂł |
| Minimum Reading | 0.0005 mÂł (0.5L) |
