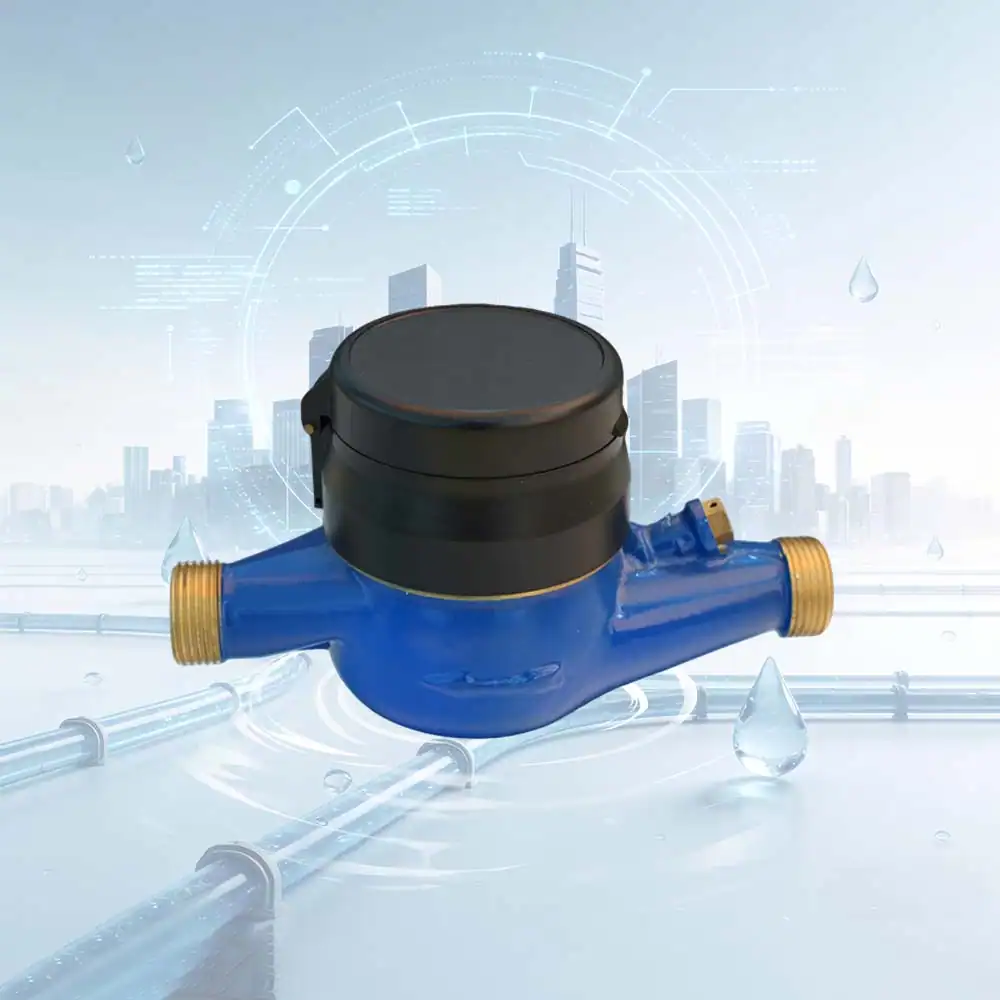

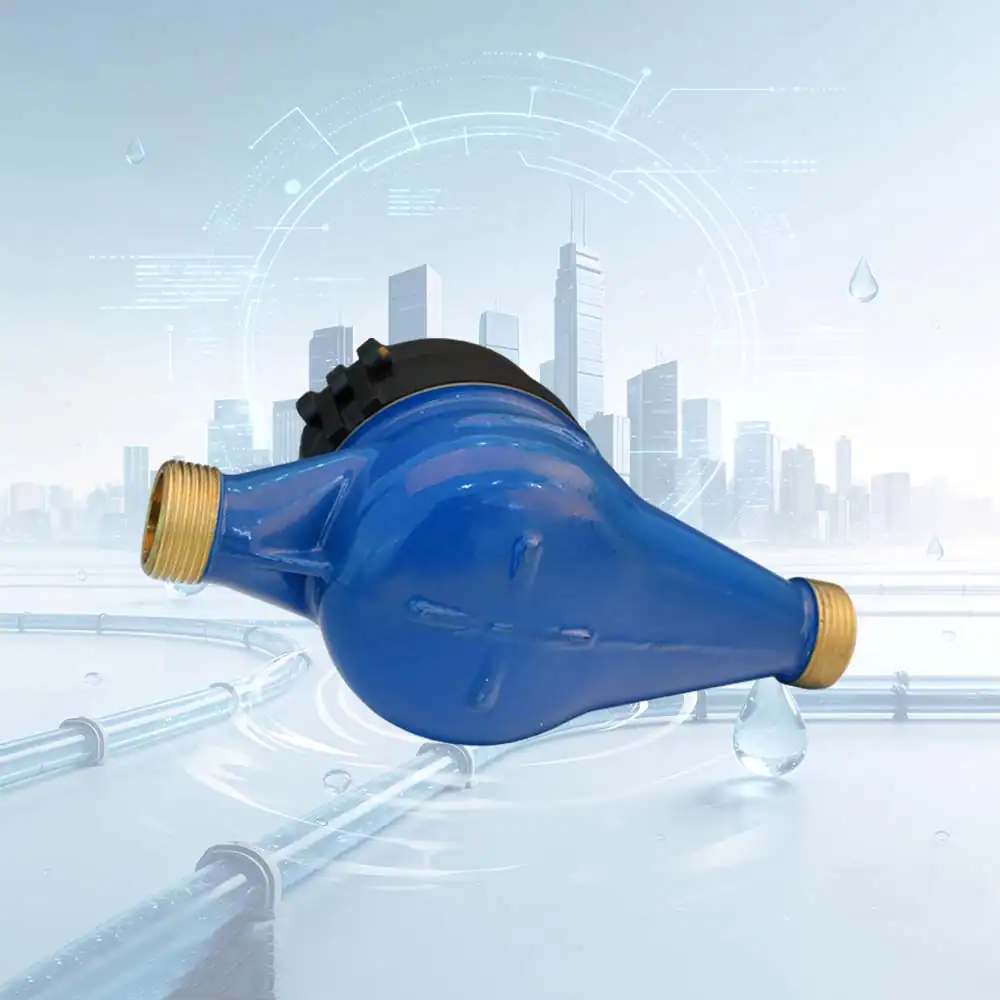

Durable Brass Body Multi-Jet Water Meter DN20 (20 mm)
- Ergonomic Viewing: 45° slanted dry dial ensures easy, fog-free reading.
- High Precision: Class B (R100) accuracy catches ultra-low 13.3 L/h flows.
- Extreme Protection: IP68 waterproof rating for reliable submerged operation.
- Tamper-Proof: Integrated anti-magnetic shield secures your billing data.
- Easy Setup: Standard DN20 190mm body with G3/4B BSP threads.
Advanced Multi-Jet Design for Reliable Measurement

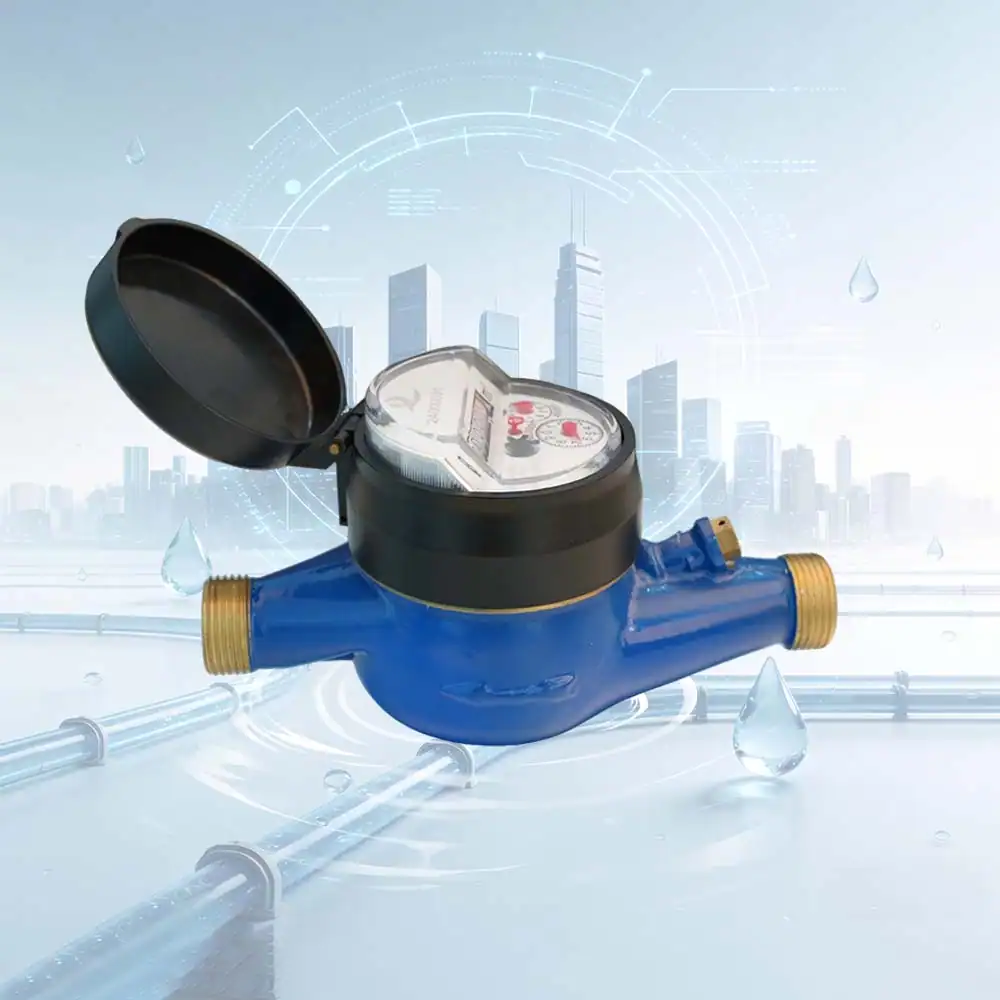

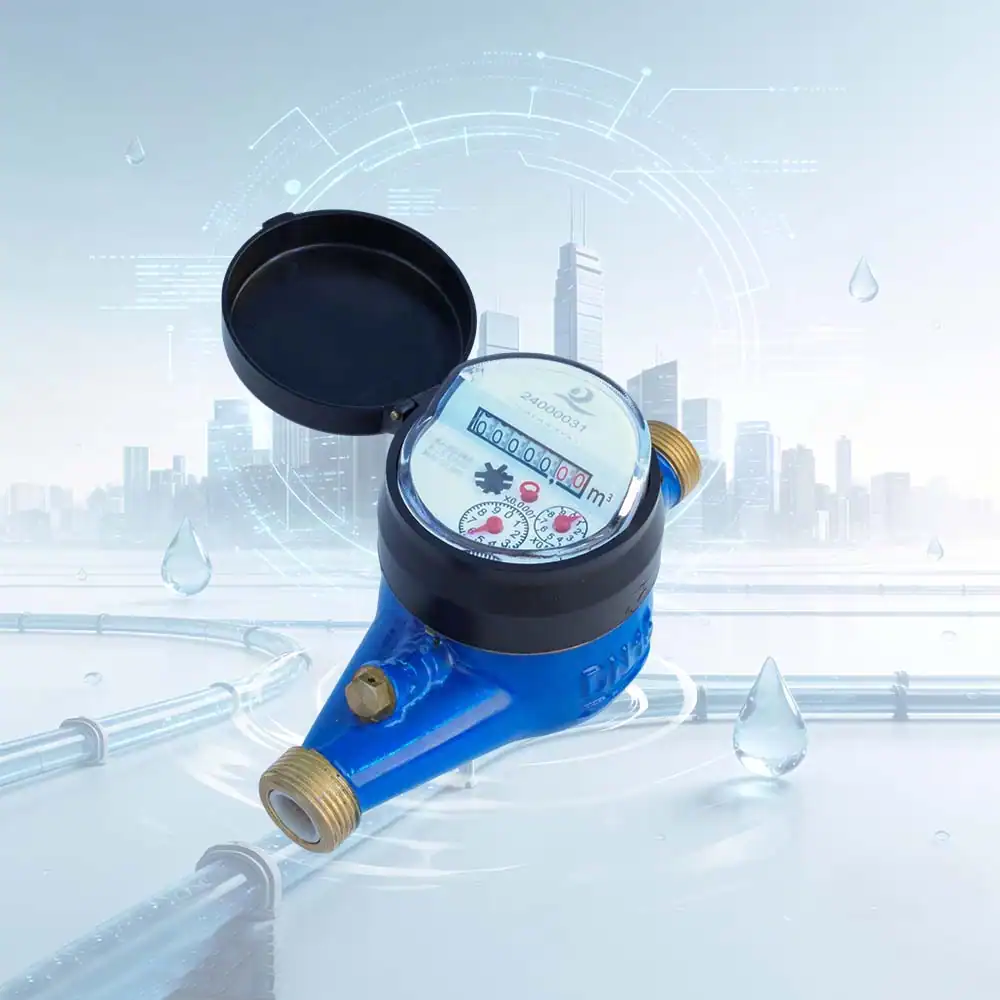

Engineered for superior precision, this velocity-type multi-jet water meter guarantees consistent performance for residential and commercial water tracking. It features an innovative 45° slanted dry dial coupled with a highly responsive magnetic drive transmission, ensuring the display is exceptionally easy to read from various angles without bending or straining. Designed specifically for standard horizontal installation, the hermetically sealed register completely isolates the internal counting mechanism from water. This prevents condensation and fogging, ensuring the dial remains crystal clear over years of service.
Rugged Construction and Certified Protection
Built to withstand challenging environments, this device boasts a maximum IP68 protection class, making it completely dustproof and highly resistant to prolonged water submersion. It operates flawlessly under a robust MAP16 pressure class and is tailored for cold water applications up to 30°C (T30 temperature class). Furthermore, the meter strictly complies with global ISO 4064 standards, providing utility companies and property managers with certified assurance regarding its structural integrity, safety, and long-term operational reliability.
Key Features & Advantages:
- Exceptional Precision: Achieves strict Class B (R100) accuracy with a permanent flow rate of 4.0 m³/h, effectively capturing even the smallest leaks with an ultra-low starting flow of just 13.3 L/h.
- Tamper-Proof Security: Engineered with robust anti-magnetic protection that actively deflects external magnetic interference, guaranteeing the absolute integrity and security of your billing data.
- Optimized Flow Dynamics: Sustains an incredibly low pressure loss of ≤0.063 MPa, ensuring that high-volume water delivery remains stable without straining your existing pipeline infrastructure.
- Standardized Installation: Features a compact 190mm body length equipped with standard DN20 (20 mm) size and reliable G3/4B BSP threads, facilitating a swift, leak-proof threaded connection.
Functional Parameters
| Meter Type | Multi Jet Dry Dial |
| Measuring Principle | Velocity Type |
| Dial Type | Dry Dial, 45℃Sealed Register |
| Transmission Type | Magnetic Drive |
| Installation Orientation | Horizontal |
| Protection Class | IP68 |
| Temperature Class | T30 |
| Pressure Class | MAP16 |
| Accuracy Class | Class B (R100) |
| Standard Compliance | ISO 4064 |
| Anti-Magnetic Protection | Yes |
| Sealing Type | Hermetically Sealed Register |
Dimensional Parameters
| Nominal Diameter (DN) | DN20 (20 mm) |
| Length (L) | 190mm |
| Width (W) | 94 mm |
| Height (H) | 135 mm |
| Thread Type | BSP |
| Thread Size | G3/4B |
| Connection Type | Threaded |
Flow Parameters
| Q1 (Minimum Flow Rate) | 40 L/h |
| Q2 (Transitional Flow Rate) | 64 L/h |
| Q3 (Permanent Flow Rate) | 4.0 m³/h |
| Q4 (Overload Flow Rate) | 5.0 m³/h |
| R Value (Q3/Q1) | 100 |
| Starting Flow | 13.3 L/h |
| Pressure Loss at Q3 | ≤0.063 MPa |
| Maximum Reading | 99 999 m³ |
| Minimum Reading | 0.00005 m³ (0.05 L) |
