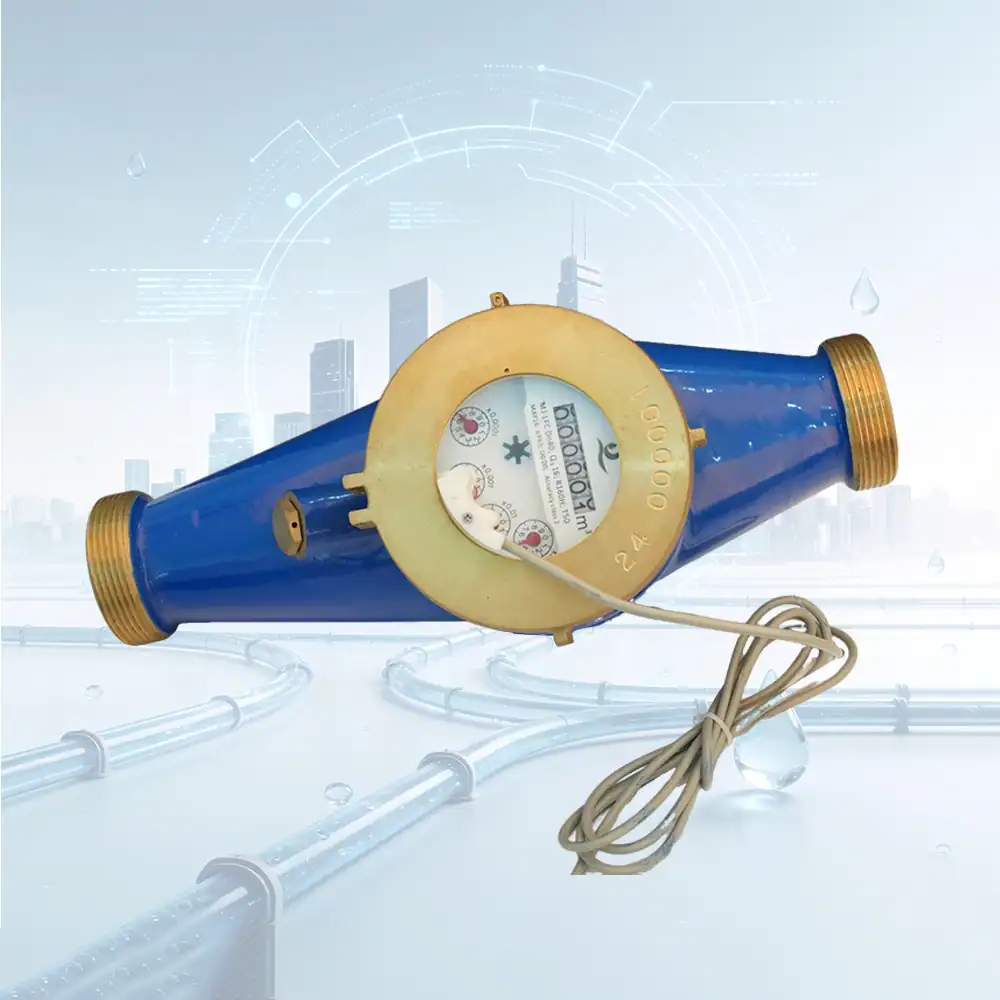

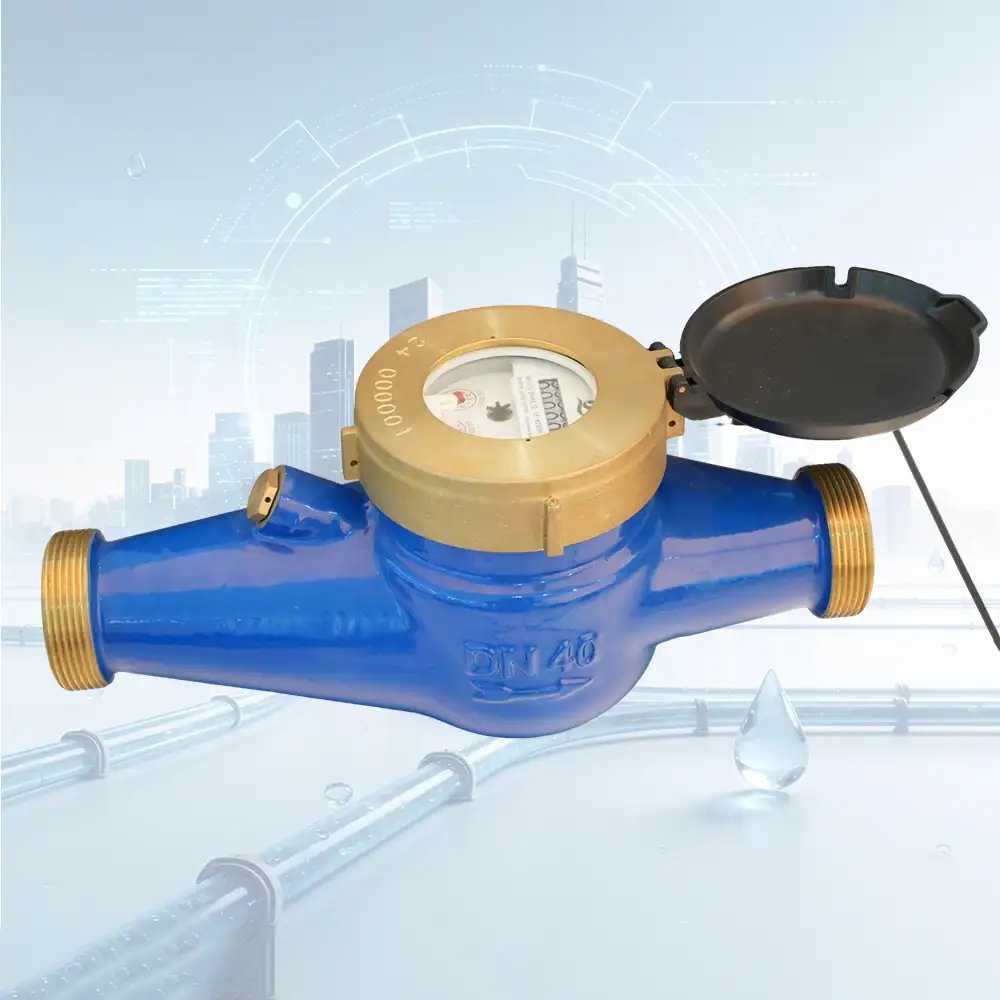

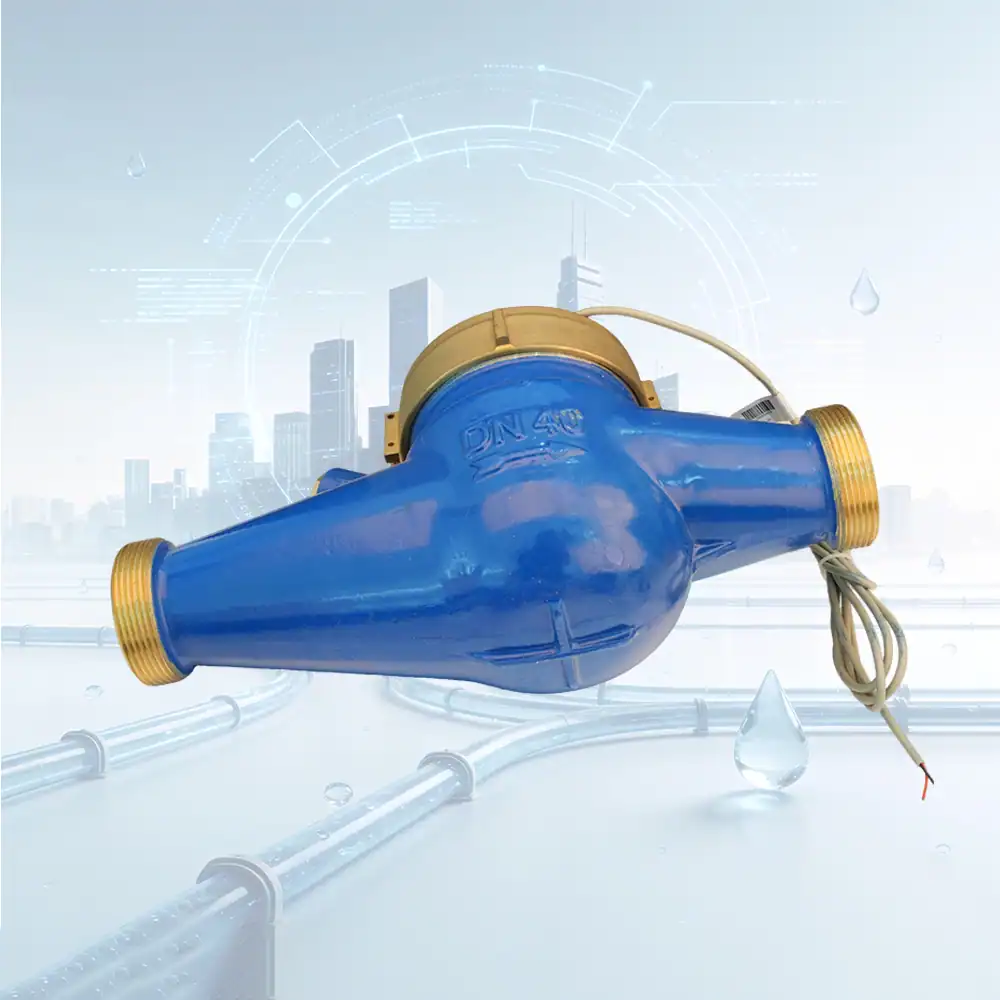

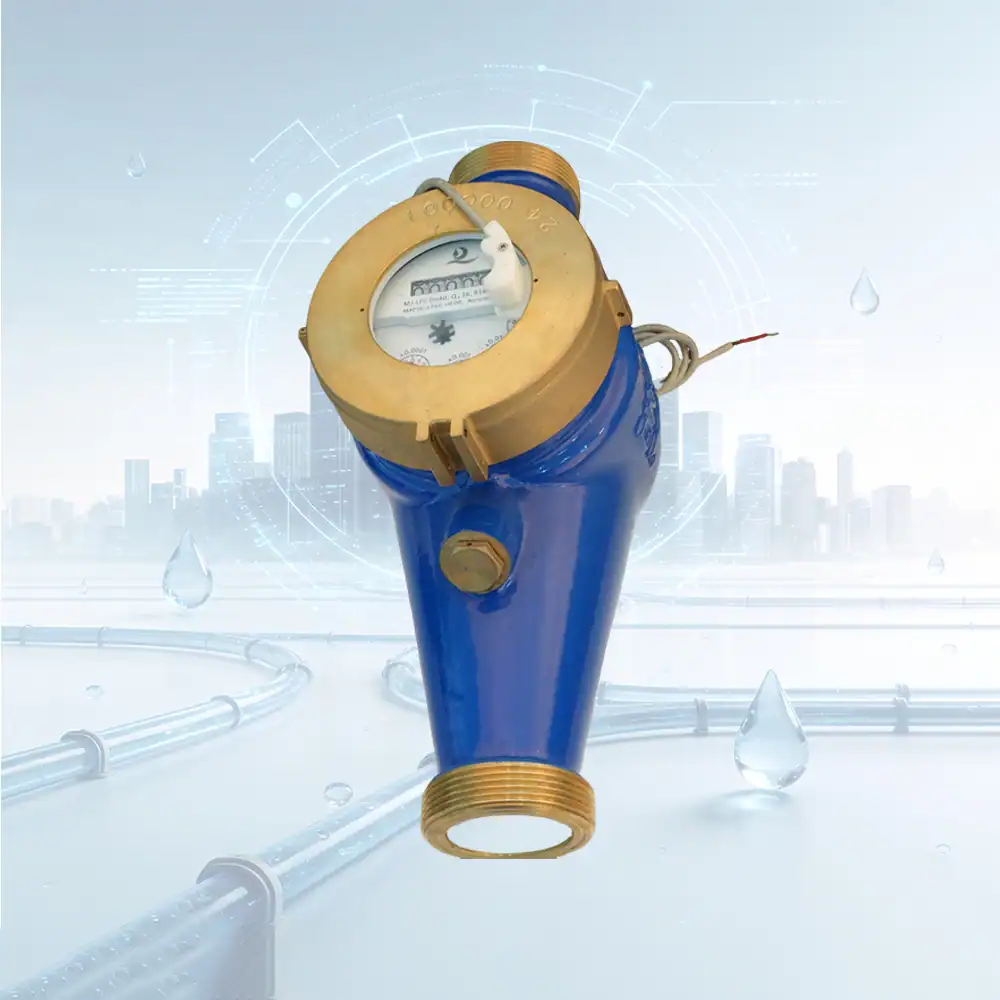

DN40 Multi-Jet Brass Body 1.5 Inch Water Meter

High-Capacity Precision for Commercial Applications

This velocity-type multi-jet water meter is specifically engineered to handle demanding commercial and light industrial water measurement. Designed for standard horizontal installation, it operates on a highly reliable magnetic drive transmission that ensures seamless, long-term performance. The premium hermetically sealed dry dial completely isolates the counting register from the water flow, effectively preventing internal condensation and fogging to guarantee crystal-clear readability over its entire operational lifespan.

Rugged Construction and Smart Integration

Built to endure harsh environmental conditions, this robust meter boasts a maximum IP68 protection class, making it fully waterproof and dustproof. It operates safely under a high MAP16 pressure class and is highly adaptable for both cold and warm water utility systems (T30/T50). Complying strictly with global ISO 4064 standards, this device features versatile Pulse Output and AMR-ready capabilities, providing utility managers with the ultimate flexibility to integrate seamlessly into modern, remote smart reading networks.

Key Features & Advantages:

• Exceptional High-Volume Accuracy: Delivers reliable Class B (R100) precision with a massive permanent flow rate of 16 m³/h, while still accurately registering minimum flows down to 160 L/h.
• Advanced Tamper Protection: Equipped with a dedicated anti-magnetic shield that actively blocks external magnetic interference, fully safeguarding your critical billing data against unauthorized tampering.
• Optimized Flow Efficiency: Maintains an impressively low pressure loss of ≤0.063 MPa at peak capacities, ensuring stable, high-volume water delivery without stressing your pipeline infrastructure.
• Industrial-Grade Installation: Features a large DN40 (40 mm) size and a 245mm body length with secure G2B BSP threads, engineered for fast and durable connections in large-scale plumbing systems.
