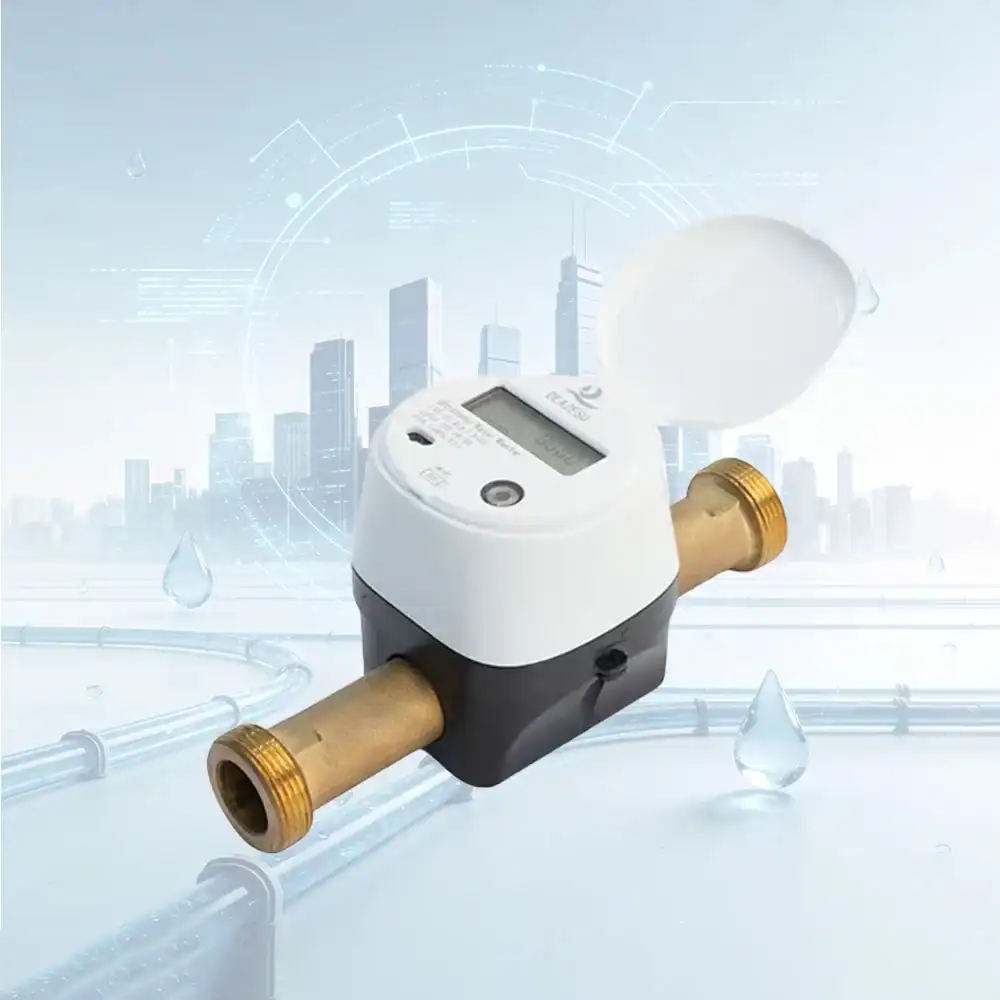

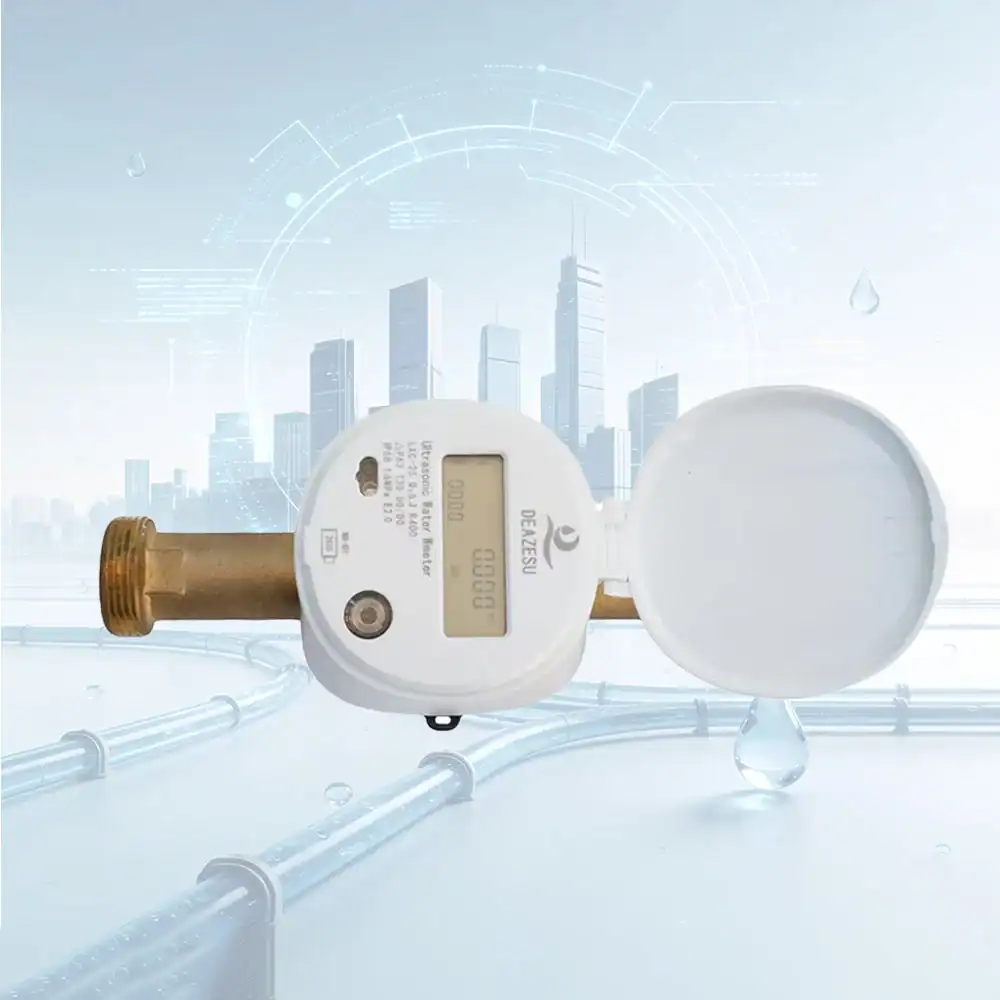

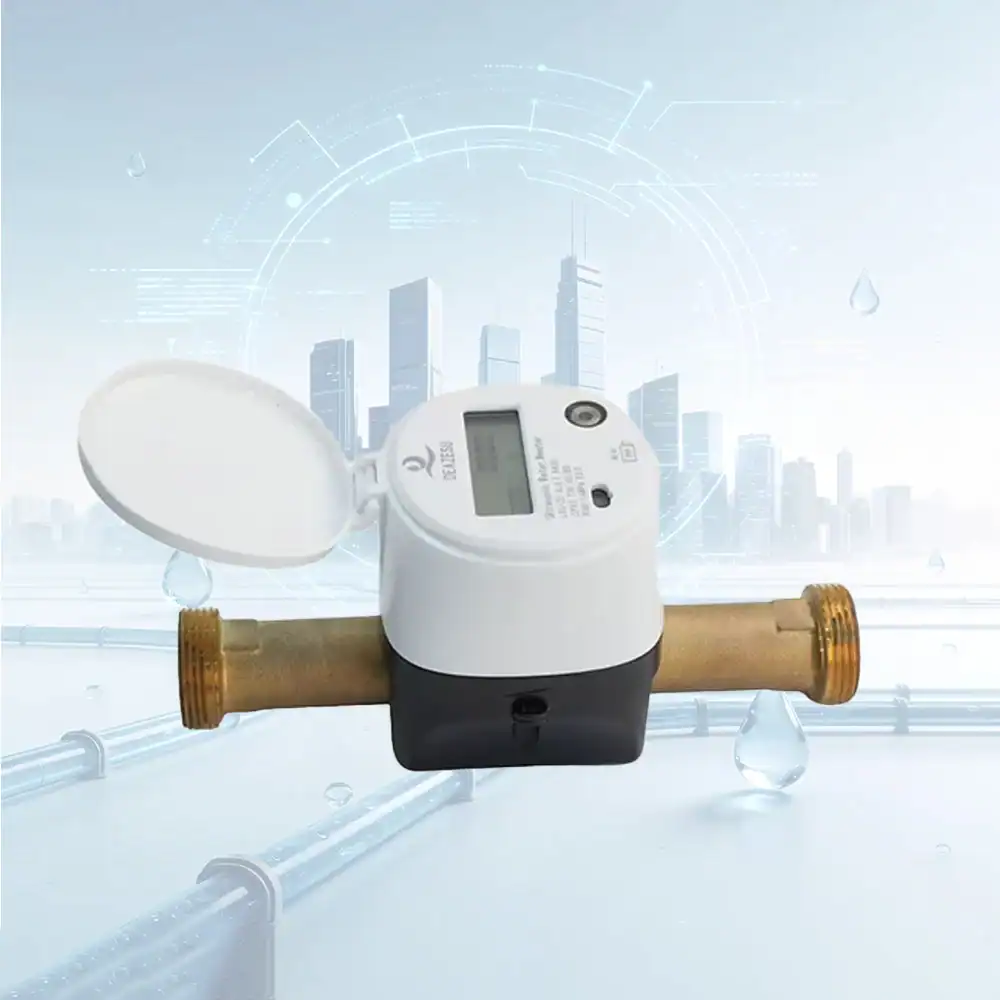

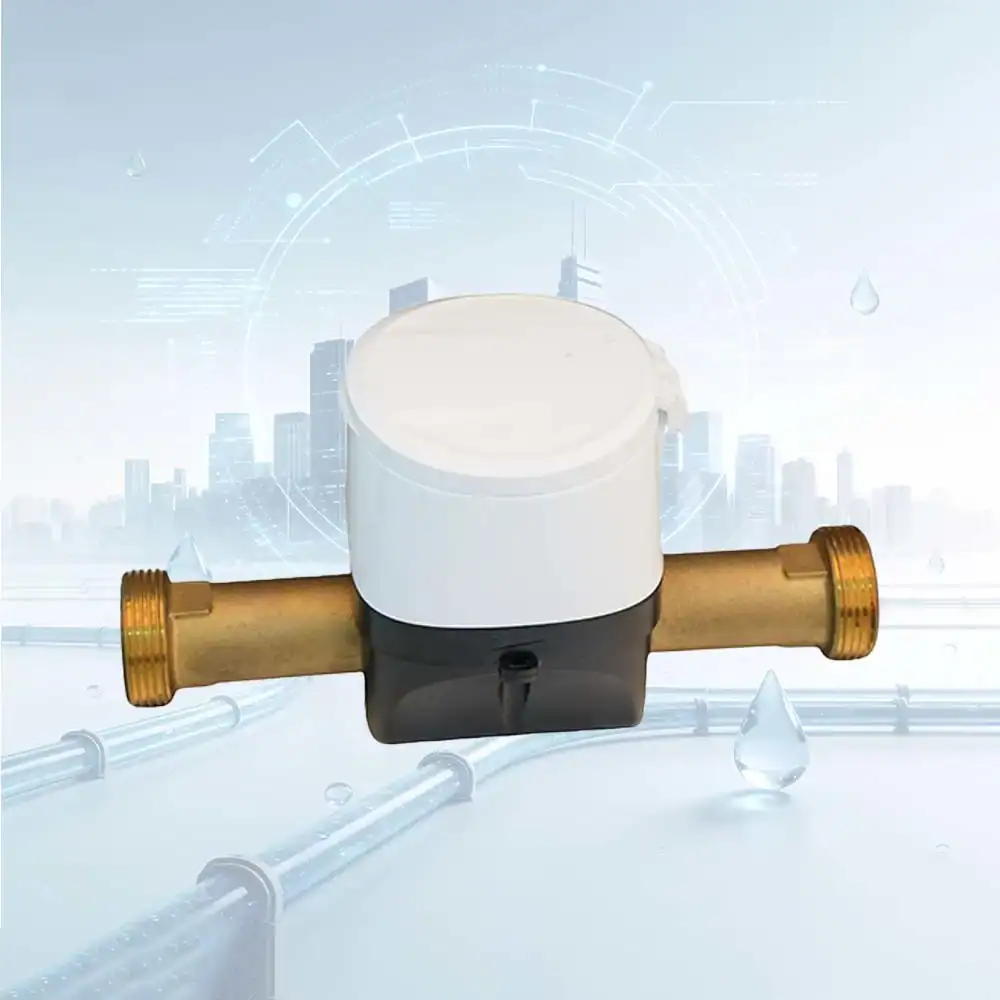

Best Price Ultrasonic Water Meter AMR Ready
- Ultra-Precise: Ultrasonic R400 accuracy and 5.33 L/h starting flow catch every drop and minor leak.
- Fully Waterproof: IP68-rated rugged design ensures reliable operation even when completely submerged.
- Smart-Ready: Features a clear LED dial and AMR-ready output for effortless remote monitoring.
- Versatile Install: Mounts in any orientation (U0/D0) using standard DN25 threaded connections.
- High Efficiency: Supports 6.3 m³/h continuous flow with ultra-low pressure loss (≤0.063 MPa).
Advanced Ultrasonic Measurement Technology
Engineered for superior precision, this Integrated Ultrasonic Water Meter utilizes advanced sound wave technology to deliver flawless flow measurement. Fully compliant with strict ISO 4064 standards, it features a clear, highly visible LED dial for immediate and precise data retrieval. Designed with modern utility management in mind, the meter is completely AMR Ready, allowing for seamless integration into smart automated reading networks for efficient, remote water monitoring.
Unmatched Durability and Flexible Installation
Built to withstand harsh environmental conditions, this robust device boasts a top-tier IP68 protection class, ensuring reliable, waterproof performance even when completely submerged. Its versatile internal design supports any installation orientation (U0/D0) without compromising its measurement accuracy. Constructed to handle demanding conditions, it successfully operates across multiple temperature environments (T30/T50/T90) and maintains a strong MAP16 pressure class, making it an incredibly durable solution for diverse residential and industrial water management systems.
Key Features & Advantages:
- Exceptional Accuracy and Sensitivity: Achieves an impressive accuracy class of R400 (with optional ranges up to R800) and detects minimum water movements with a remarkable starting flow of just 5.33 L/h, guaranteeing highly precise billing and early leak detection.
- Optimized Flow Dynamics: Delivers a robust permanent flow rate (Q3) of 6.3 m³/h while maintaining an ultra-low pressure loss of ≤0.063 MPa, ensuring maximum pipeline efficiency and reducing overall system energy consumption.
- Seamless Pipeline Integration: Features a standardized DN25 (25 mm) nominal diameter utilizing reliable BSP G1 1/4B threaded connections, all engineered into a compact 225mm length body for swift, secure, and hassle-free installation.
Functional Parameters
| Meter Type | Integrated Ultrasonic Water Meter |
| Measuring Principle | Ultrasonic |
| Dial Type | LED |
| Installation Orientation | Any location（U0/D0） |
| Protection Class | IP68 |
| Temperature Class | T30/T50/T90 |
| Pressure Class | MAP16 |
| Accuracy Class | R250/400/500/800 |
| Standard Compliance | ISO 4064 |
| Optional Output | AMR Ready |
Dimensional Parameters
| Nominal Diameter (DN) | DN25 (25 mm) |
| Length (L) | 225mm |
| Width (W) | 106mm |
| Height (H) | 118 mm |
| Thread Type | BSP |
| Thread Size | G1 1/4B |
| Connection Type | Threaded |
Flow Parameters
| Q1 (Minimum Flow Rate) | 16 L/h |
| Q2 (Transitional Flow Rate) | 25.2 L/h |
| Q3 (Permanent Flow Rate) | 6.3 m³/h |
| Q4 (Overload Flow Rate) | 7.87 m³/h |
| R Value (Q3/Q1) | 400 |
| Starting Flow | 5.33 L/h |
| Pressure Loss at Q3 | ≤0.063 MPa |
| Maximum Reading | 999 999.999 m³ |
| Minimum Reading | 0.00001 m³ (0.01L) |
