AMI Smart Water Meter Solution for Southern & South Eastern Water Projects
- High Precision: Superior R160 accuracy; tracks ultra-low flows down to 39.4 L/h.
- High Capacity: DN25 size handling a robust 6.3 m³/h permanent flow rate.
- Extreme Durability: IP68 waterproof with a fog-free, hermetically sealed register.
- Tamper-Proof: Anti-magnetic shield completely secures your critical billing data.
- Future-Proof: AMR-ready output for easy smart reading network integration.

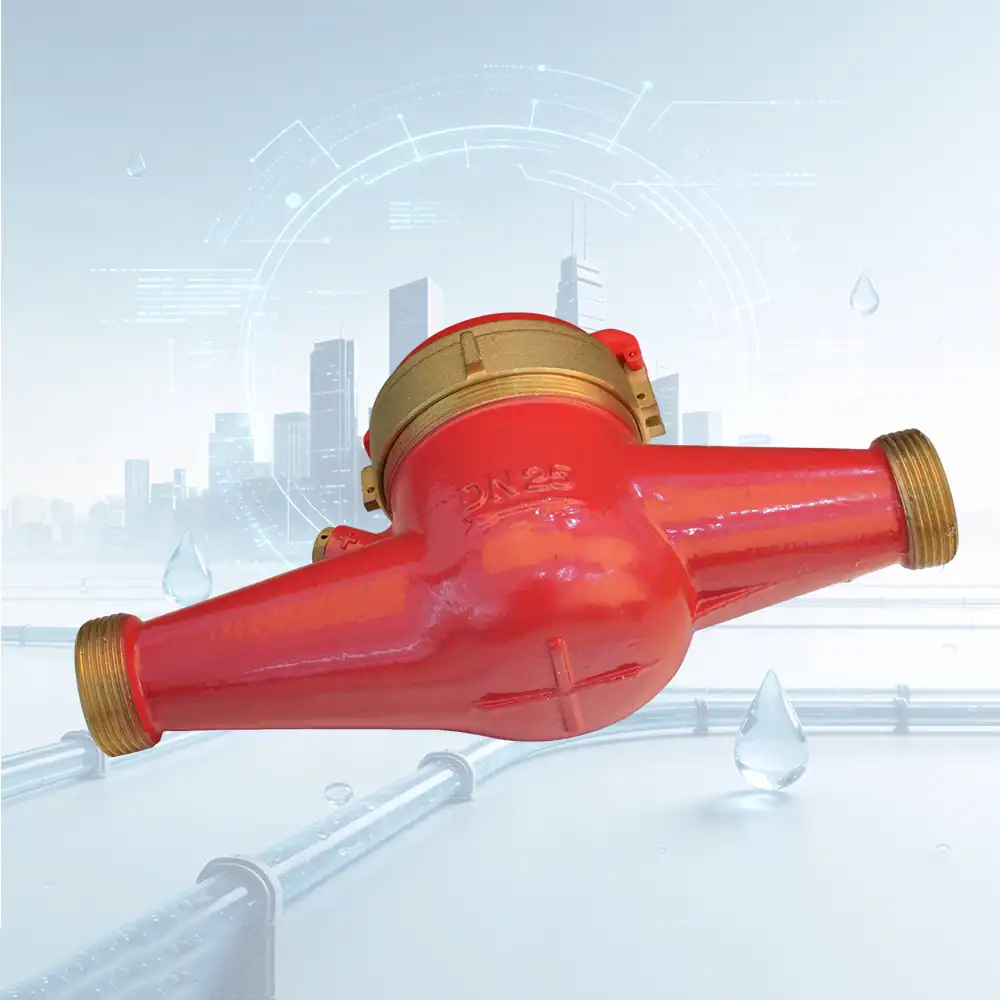

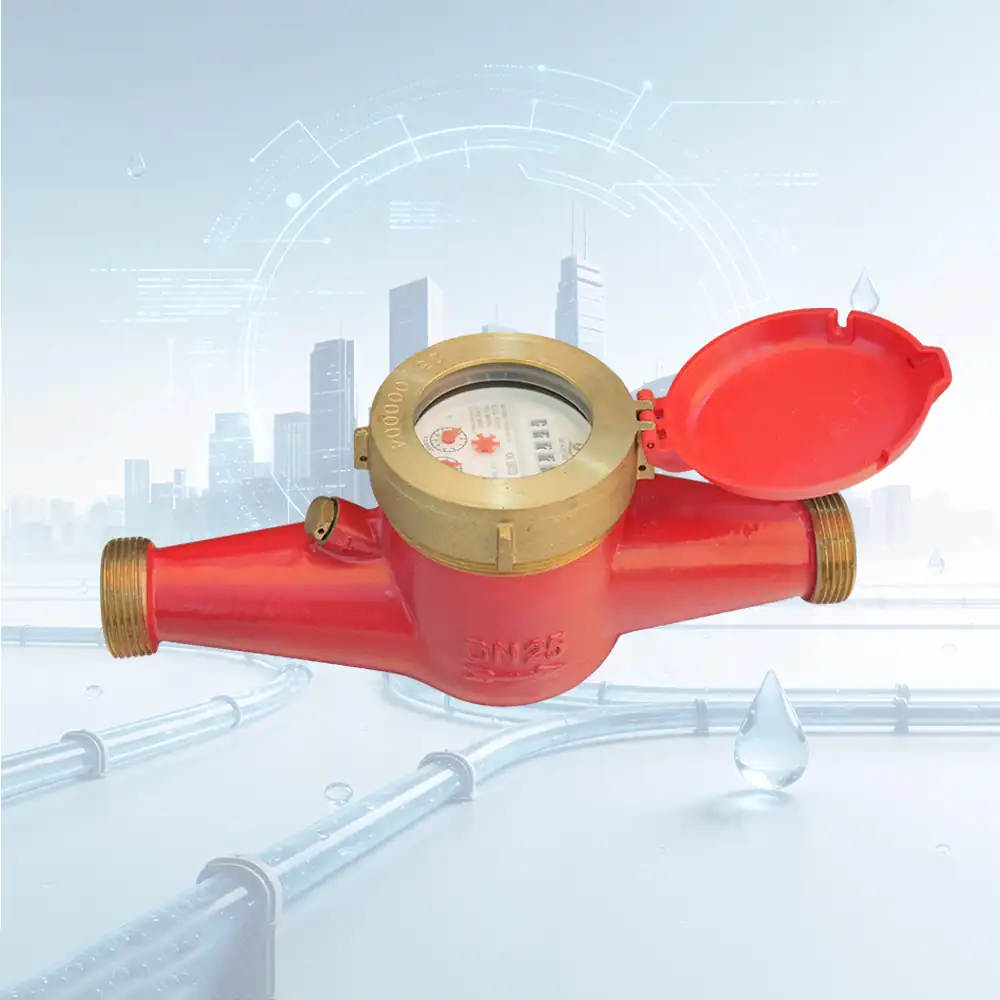

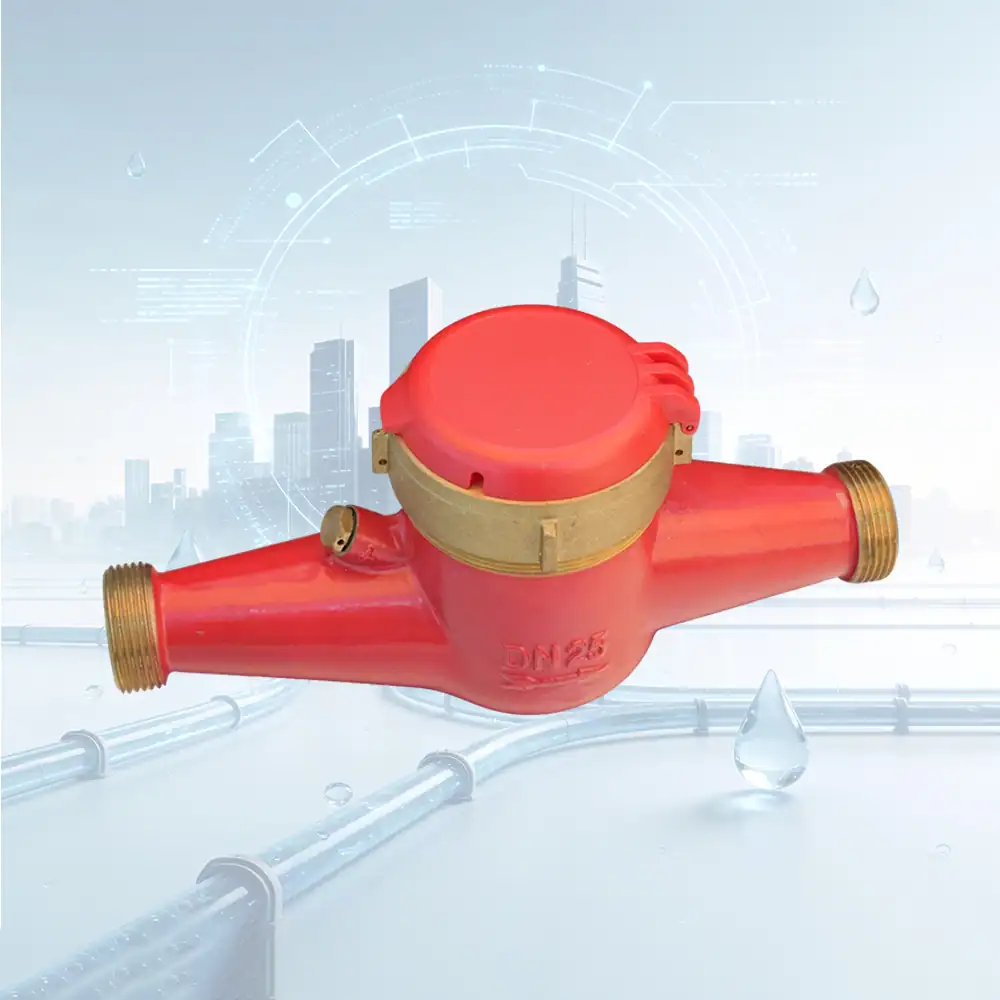

High-Capacity Multi-Jet Precision

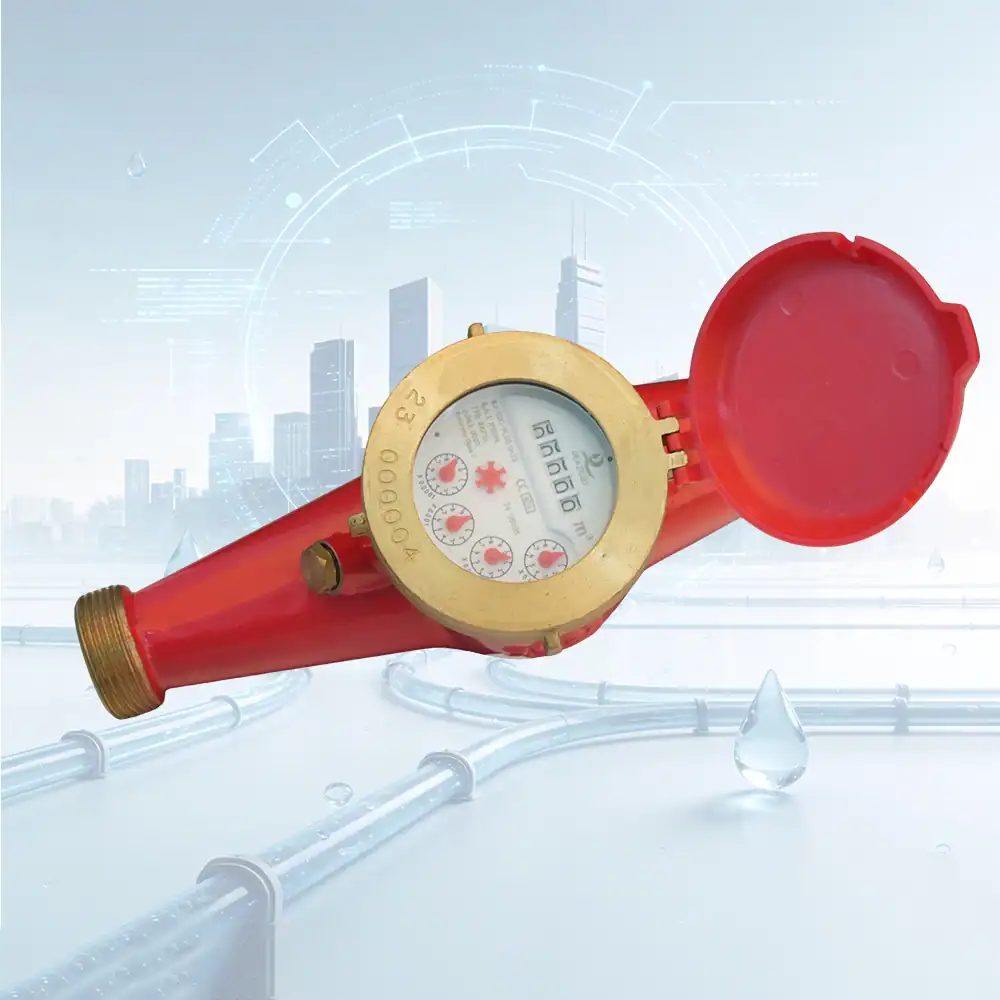

This advanced velocity-type multi-jet water meter delivers exceptional reliability for demanding residential and high-volume commercial water measurement. Designed for standard horizontal installation, it utilizes a highly efficient magnetic drive transmission to ensure seamless, long-term performance. The premium hermetically sealed dry dial completely separates the counting register from the water flow, effectively preventing internal condensation and guaranteeing crystal-clear readability over its entire operational lifespan.
Industrial-Grade Durability and Compliance
Engineered to endure harsh environmental conditions, this robust meter features a maximum IP68 protection class, making it completely dustproof and waterproof. It operates safely under a strong MAP16 pressure class and is fully adaptable for both cold and warm water utility systems (T30/T50). Complying strictly with global ISO 4064 standards, this device also comes AMR-ready, providing utility managers with a streamlined, future-proof upgrade path for integrating automated smart reading networks.
Key Features & Advantages:
- Enhanced R160 Accuracy: Delivers superior Class B (R160) precision with a robust permanent flow rate of 6.3 m³/h, accurately registering minimal water usage down to just 39.4 L/h to prevent utility revenue loss.
- Anti-Magnetic Security: Built with a dedicated internal shield that actively repels external magnetic interference, fully safeguarding your critical billing data against unauthorized tampering.
- Maximized Flow Efficiency: Maintains a remarkably low pressure loss of ≤0.063 MPa at peak capacities, ensuring high-volume water delivery remains stable without overworking your pipeline infrastructure.
- High-Flow Standardized Installation: Features an extended 225mm body length and a larger DN25 (25 mm) diameter equipped with secure G1 1/4B BSP threads, designed for fast, leak-proof connections in higher-capacity plumbing systems.
Functional Parameters
| Meter Type | Multi Jet Dry Dial |
| Measuring Principle | Velocity Type |
| Dial Type | Dry Dial, Sealed Register |
| Transmission Type | Magnetic Drive |
| Installation Orientation | Horizontal |
| Protection Class | IP68 |
| Temperature Class | T30/T50 |
| Pressure Class | MAP16 |
| Accuracy Class | Class B (R160) |
| Standard Compliance | ISO 4064 |
| Anti-Magnetic Protection | Yes |
| Sealing Type | Hermetically Sealed Register |
| Optional Output | AMR Ready |
Dimensional Parameters
| Nominal Diameter (DN) | DN25 (25 mm) |
| Length (L) | 225 mm |
| Width (W) | 103 mm |
| Height (H) | 145 mm |
| Thread Type | BSP |
| Thread Size | G1 1/4B |
| Connection Type | Threaded |
Flow Parameters
| Q1 (Minimum Flow Rate) | 39.4 L/h |
| Q2 (Transitional Flow Rate) | 64 L/h |
| Q3 (Permanent Flow Rate) | 6.3 m³/h |
| Q4 (Overload Flow Rate) | 7.875m³/h |
| R Value (Q3/Q1) | 160 |
| Pressure Loss at Q3 | ≤0.063 MPa |
| Maximum Reading | 99 999 m³ |
| Minimum Reading | 0.00005 m³ (0.05 L) |
