DN50 Multi-Jet Water Meter | Best 2 Inch Water Meter Price
- Accurate: Class B (R100) precision meets stringent ISO 4064 standards.
- Durable: IP68 hermetically sealed wet dial prevents internal condensation.
- Secure: Built-in anti-magnetic protection actively prevents external data tampering.
- High-Volume: DN50 flange connection effortlessly supports a 16 m³/h flow.
- Smart-Ready: Optional pulse output allows for seamless AMR network integration.
Precision Flow Measurement for Commercial Applications
Engineered for optimal performance in commercial and industrial water networks, this Multi-Jet Water Meter delivers reliable, high-volume tracking. Designed with a robust DN50 (50 mm) flange connection, it seamlessly integrates into standard horizontal pipelines. Fully compliant with strict ISO 4064 standards, this velocity-type meter guarantees precise volumetric recording. It supports a permanent flow rate of 16 m³/h and boasts an expansive maximum reading capacity of 999,999 m³, ensuring long-term, accurate utility management for demanding applications.
Rugged Construction and Smart-Ready Design
Built to withstand challenging environments, the meter features an IP68 protection class, making it entirely resistant to water ingress. Its hermetically sealed, wet dial register prevents condensation, guaranteeing crystal-clear readings even in high-moisture utility pits. Furthermore, this water meter is future-proofed for modern utility grids. It is engineered to be AMR Ready with an optional pulse output, allowing for effortless integration into automated meter reading systems for remote data collection and streamlined operational efficiency.
Key Features & Advantages:
- Superior Accuracy: Operates at a highly precise Class B (R100) accuracy rating, accurately capturing low starting flow rates down to 160 L/h.
- Enhanced Security: Utilizes reliable magnetic drive transmission fortified with built-in anti-magnetic protection, preventing external tampering and safeguarding billing integrity.
- Optimized Hydraulics: Designed to maintain an exceptionally low pressure loss of ≤0.063 MPa at peak efficiency, safely enduring a working pressure of MAP16 and liquid temperatures up to T50.
Functional Parameters
| Meter Type | Multi Jet |
| Measuring Principle | Velocity Type |

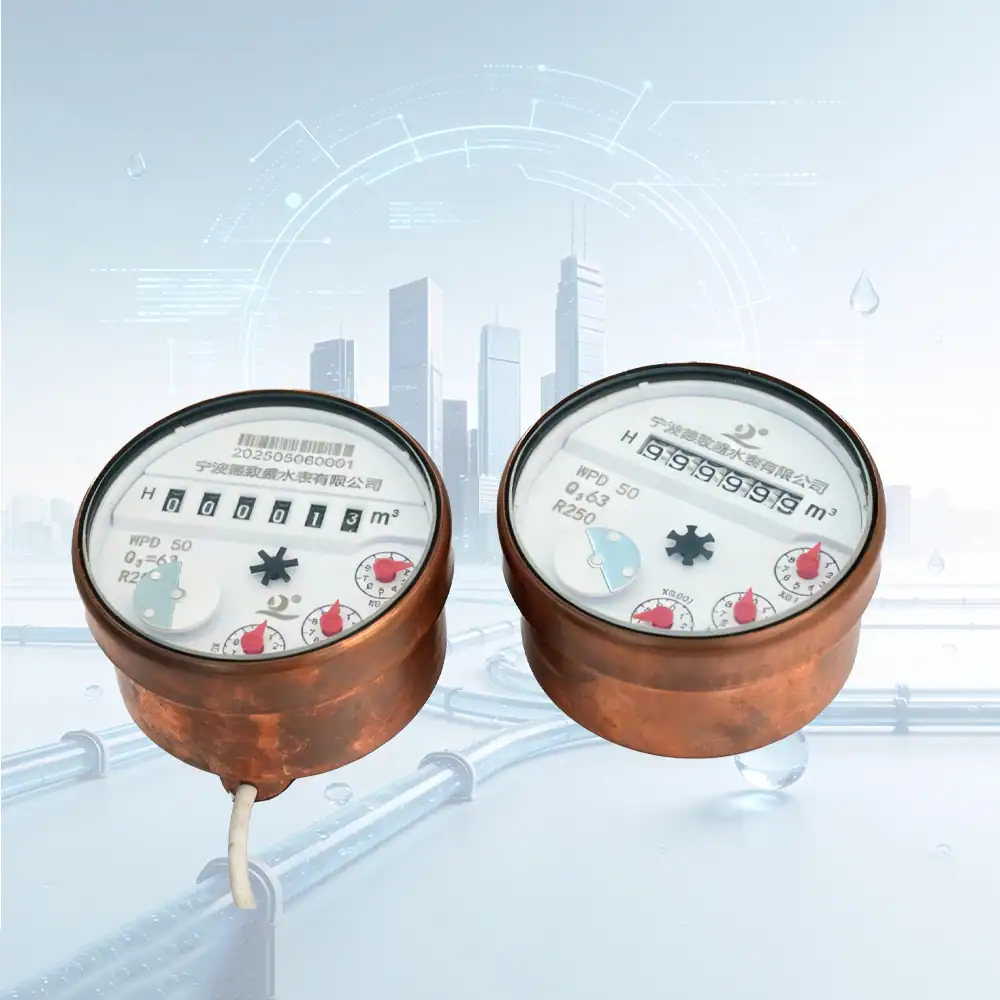

| Dial Type | Wet Dial, Sealed Register |
| Transmission Type | Magnetic Drive |
| Installation Orientation | Horizontal |
| Protection Class | IP68 |
| Temperature Class | T30/T50 |
| Pressure Class | MAP16 |
| Accuracy Class | Class B (R100) |
| Standard Compliance | ISO 4064 |
| Anti-Magnetic Protection | Yes |
| Sealing Type | Hermetically Sealed Register |
| Optional Output | Pulse Output/AMR Ready |
Dimensional Parameters
| Nominal Diameter (DN) | DN50 (50 mm) |
| Length (L) | 280mm |
| Width (W) | 123 mm |
| Height (H) | 202 mm |
| Connection Type | Flange connection |
Flow Parameters
| Q1 (Minimum Flow Rate) | 160 L/h |
| Q2 (Transitional Flow Rate) | 256 L/h |
| Q3 (Permanent Flow Rate) | 16 m³/h |
| Q4 (Overload Flow Rate) | 20 m³/h |
| R Value (Q3/Q1) | 100 |
| Pressure Loss at Q3 | ≤0.063 MPa |
| Maximum Reading | 999 999 m³ |
| Minimum Reading | 0.00005 m³ (0.05 L) |
